MZF-8616
Cod EAN 4007754176483
Hexagon socket wood screws

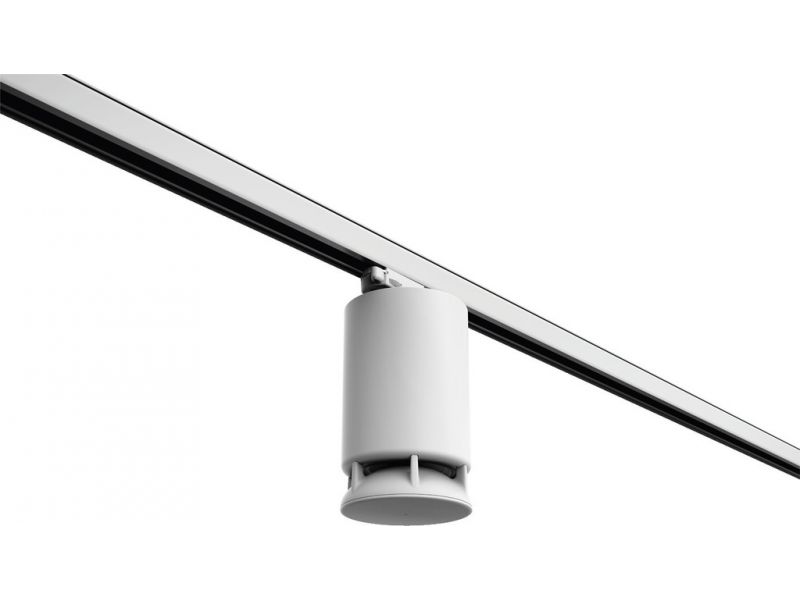

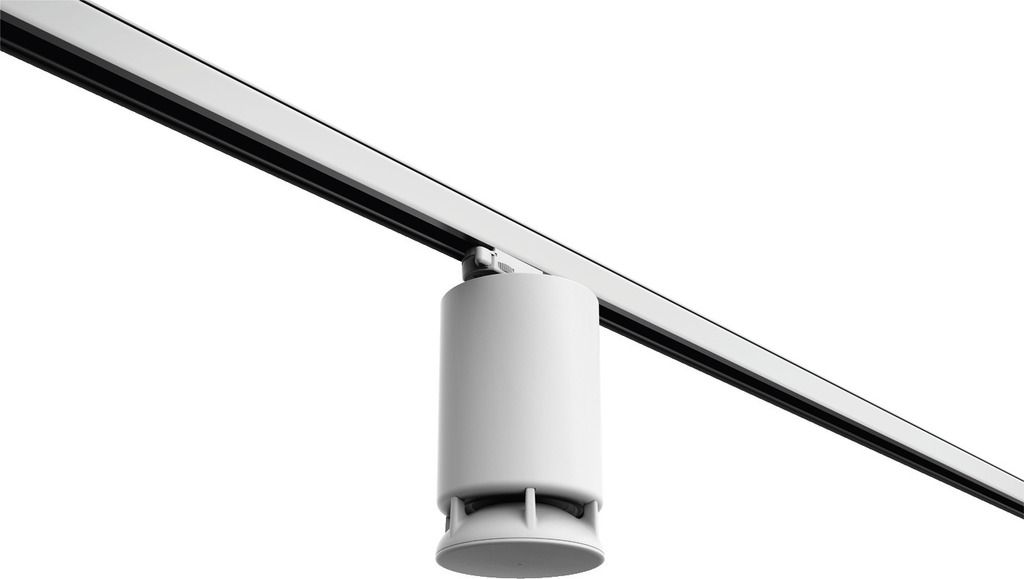

Spottune OMNI TRACK speaker: wireless 360° speaker for application and mounting to 3-phase high-voltage rail lighting systems, installation via a global track adapter. Instead of being optimised for a frontal listening position as it is the case wi...
Active/passive | active |
Transmission technology | wireless |
Total output power | 70 W |
Power rating (RMS) | 50 W, class D amplifier |
Frequency range | 50-15,000 Hz |
Number of speakers | 1 |
Speaker size | 10 cm (4") |
Max. rated SPL | 100 dB |
Radiation angle/beam angle | all-round radiation, 360° |
Radiation angle, horizontal | 360° |
Radiation angle, vertical | 360° |
Housing material | plastic |
Colour | white |
Mounting device | global track adapter GA 69 |
Admiss. ambient temp. | 0-40 °C |
Power supply | ˜ 100-240 V/50-60 Hz/2 VA max. via 3-phase high-voltage rail |
Dimensions | Ø 115 x 200 mm |
Width | Ø 115 mm |
Height | 200 mm |
Depth | Ø 115 mm |
Weight | 1.5 kg |
Inputs | conductor rail |
Other features | audio transmission: UHF band 1.8-1.9 GHz, operating range: approx. 50-100 m, depending on the surrounding and range of application |
Packaging dimensions (W x H x L) | 0.175 x 0.335 x 0.175 m |
Gross weight | 1.9 kg |
Net weight | 1.5 kg |
