PA-1200M
Cod EAN: 4007754156867
Monitor unit, 10 + 1 channels Audio sources can be selected via rotary switch 10 monitor inputs 1-100 V/10 kΩ 1 aux input 0 dB (0.775 V)/600 Ω Level control, LED VU meter and clip LED for each monitor input Built-in 2 W speaker, volume control Headph...

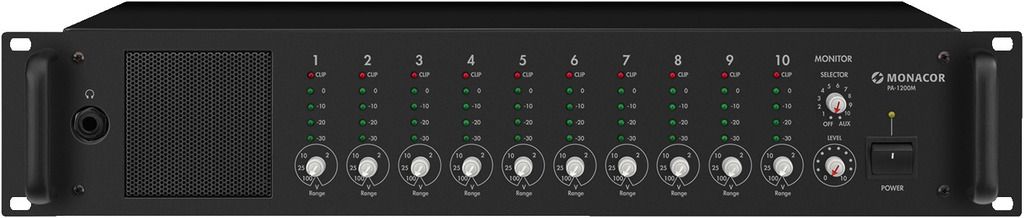

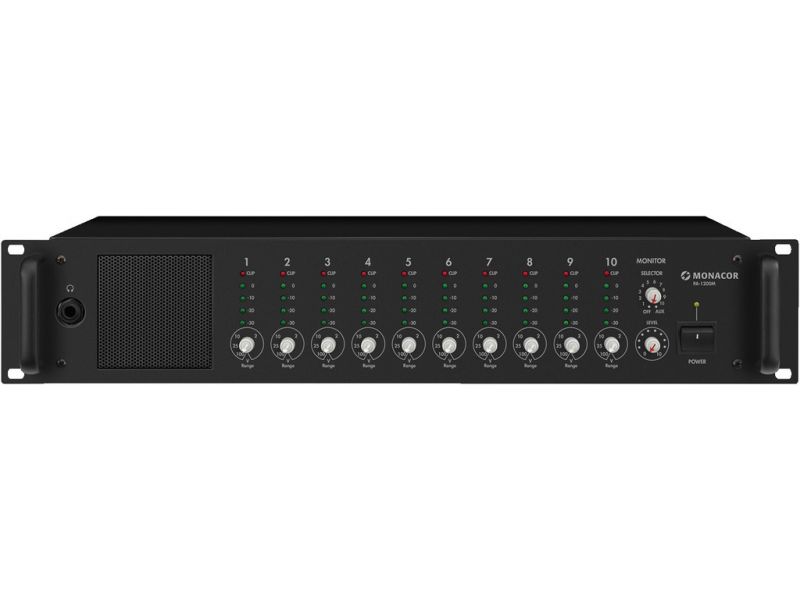

PA-1200M
Monitor unit, 10 + 1 channels
- Audio sources can be selected via rotary switch
- 10 monitor inputs 1-100 V/10 kΩ
- 1 aux input 0 dB (0.775 V)/600 Ω
- Level control, LED VU meter and clip LED for each monitor input
- Built-in 2 W speaker, volume control
- Headphone output
- Mains operation and 24 V emergency power operation
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Power rating | 2 W |
| Channels | 11 |
| Inputs | 1-100 V/10 kΩ (monitor)0.775 V/600 Ω (aux) |
| Frequency range | 100-20,000 Hz |
| THD | < 0.3% |
| Power supply | ˜ 230 V/50 Hz/15 VA, DC 24 V/0.5 A |
| Mains voltage | DC 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 15 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | 0.5 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 88 mm |
| Depth | 200 mm |
| Rack units, RU | 2 |
| Weight | 4.7 kg |

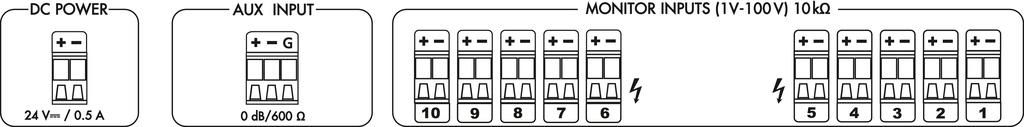

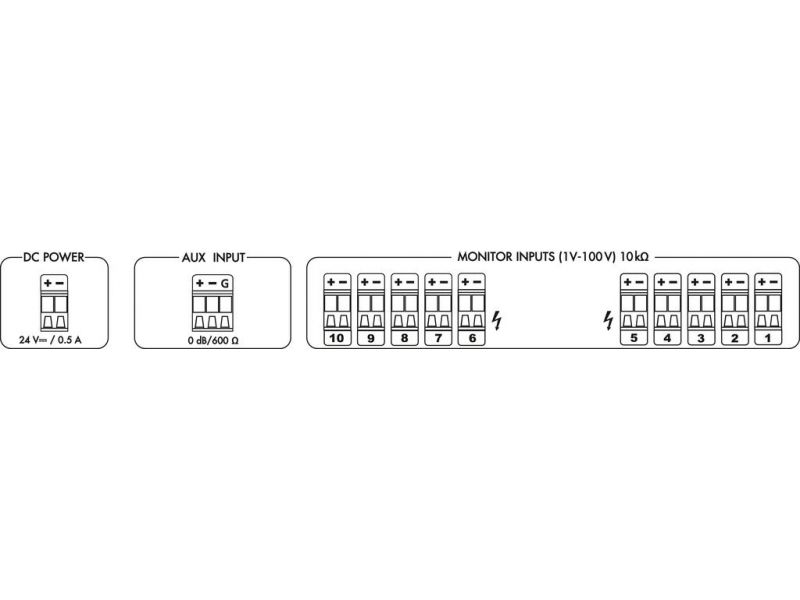

| Connections | screw terminals (monitor input 1-10), screw terminals (aux input), 6.3 mm jack (headphones) |
| Packaging dimensions (W x H x L) | 0.34 x 0.175 x 0.55 m |
| Gross weight | 5.86 kg |
| Net weight | 4.8 kg |
