PA-24ESP
Cod EAN: 4007754170979
24 V emergency power supply, for our PA components with 24 V connection. Possible to install 2 x rechargeable lead battery NPA-12/24I Screw terminals for external 24 V rechargeable batteries Maximum charging current: 2.5 A Electronic charging contr...

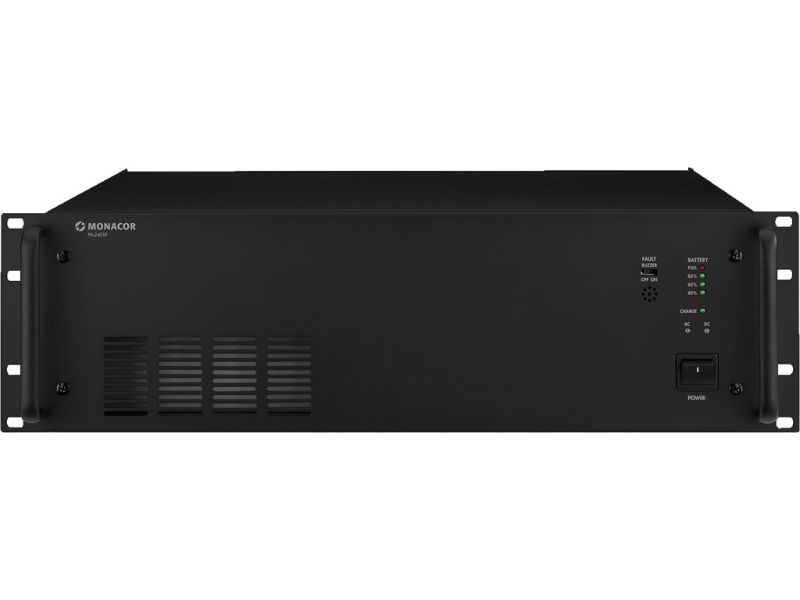

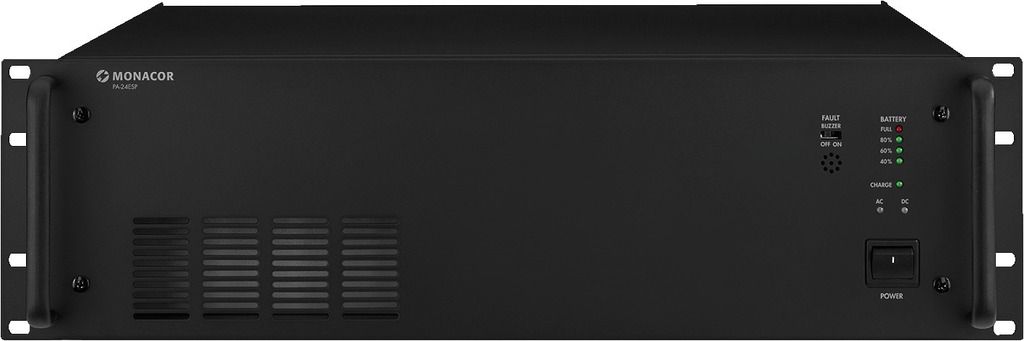

PA-24ESP
24 V emergency power supply,
for our PA components with 24 V connection.
- Possible to install 2 x rechargeable lead battery NPA-12/24I
- Screw terminals for external 24 V rechargeable batteries
- Maximum charging current: 2.5 A
- Electronic charging control with overload protection, protection against total discharge and trickle charge
- 1 x output DC 24 V/1 A (unswitched)
- 2 x output DC 24 V/32 A
- 3 x output DC 24 V/16 A
- Power supply: ˜ 230 V/50 Hz/110 VA
- Dimensions: 482 x 135 x 405 mm
- Weight: 11.7 kg
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | emergency power supply |
| Nominal value | DC 24 V |
| Suitable for | PA, 24 V |
| Power supply | ˜ 230 V/50 Hz/110 VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482 x 135 x 405 mm |
| Weight | 11.52 kg |
| Connections | screw contacts |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.48 x 0.22 x 0.54 m |
| Gross weight | 12.9 kg |
| Net weight | 11.52 kg |
