PA-302

Cod EAN: 4007754176117

Mono PA mixing amplifier, 14 W. 1 microphone input and 1 line input, adjustable 2 speaker outputs, switchable Built-in speaker Can also be operated as an intercom system Supplied with hand-held push-to-talk microphone Siren and fog horn, automatic...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PA-302

Mono PA mixing amplifier,
14 W.
  • 1 microphone input and 1 line input, adjustable
  • 2 speaker outputs, switchable
  • Built-in speaker
  • Can also be operated as an intercom system
  • Supplied with hand-held push-to-talk microphone
  • Siren and fog horn, automatic fog horn
  • Metal housing
  • Supplied with mounting brackets
  • 12/24 V battery operation, automatic switching

Parametrii

Peak output power 20 W
Power rating 14 W
Power rating at 4 Ω 14 W
Channels 2
Inputs 3 mV (mic), 50 mV (line)
Frequency range 20-20,000 Hz
S/N ratio 65 dB
THD < 0.5%
Power supply DC 12-15 V/2 A, DC 24 V/1 A
Admiss. ambient temp. 0-40 °C
Width 175 mm
Height 60 mm
Depth 170 mm
Weight 1.4 kg

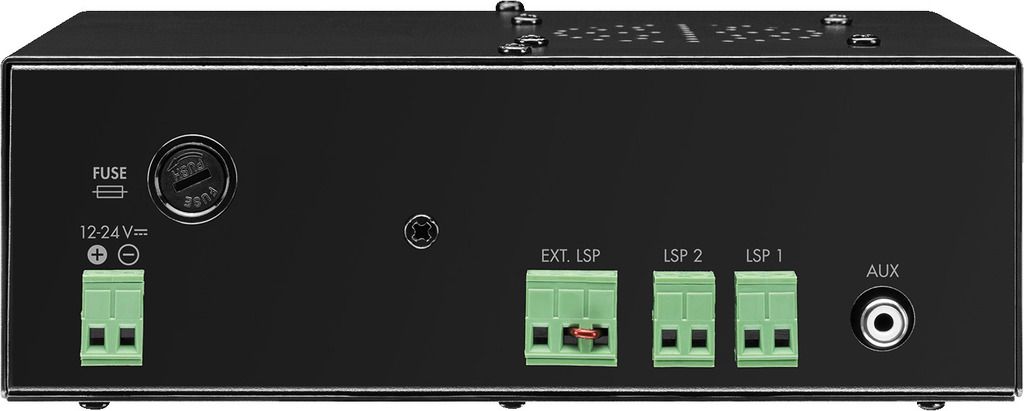

Connections 1 x 6.3 mm jack (mic input), 1 x RCA (line input), 2 x 2-pole plug-in screw terminal (speakers), 1 x 3-pole plug-in screw terminal with jumper (external speakers)
Packaging dimensions (W x H x L) 0.23 x 0.1 x 0.3 m
Gross weight 1.84 kg
Net weight 1.41 kg

Fisiere de descarcat

Fisa produsului PA-302 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
