PA-M1WP

Cod EAN: 4007754273380

Wall module, for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412. Intended application: volume control of 1 zone, local insertion of audio signals 2 x RCA jack for line signals Microphone connection via 3-pole XLR...

Citeste mai mult

Intreaba despre produs
Cumpara acum

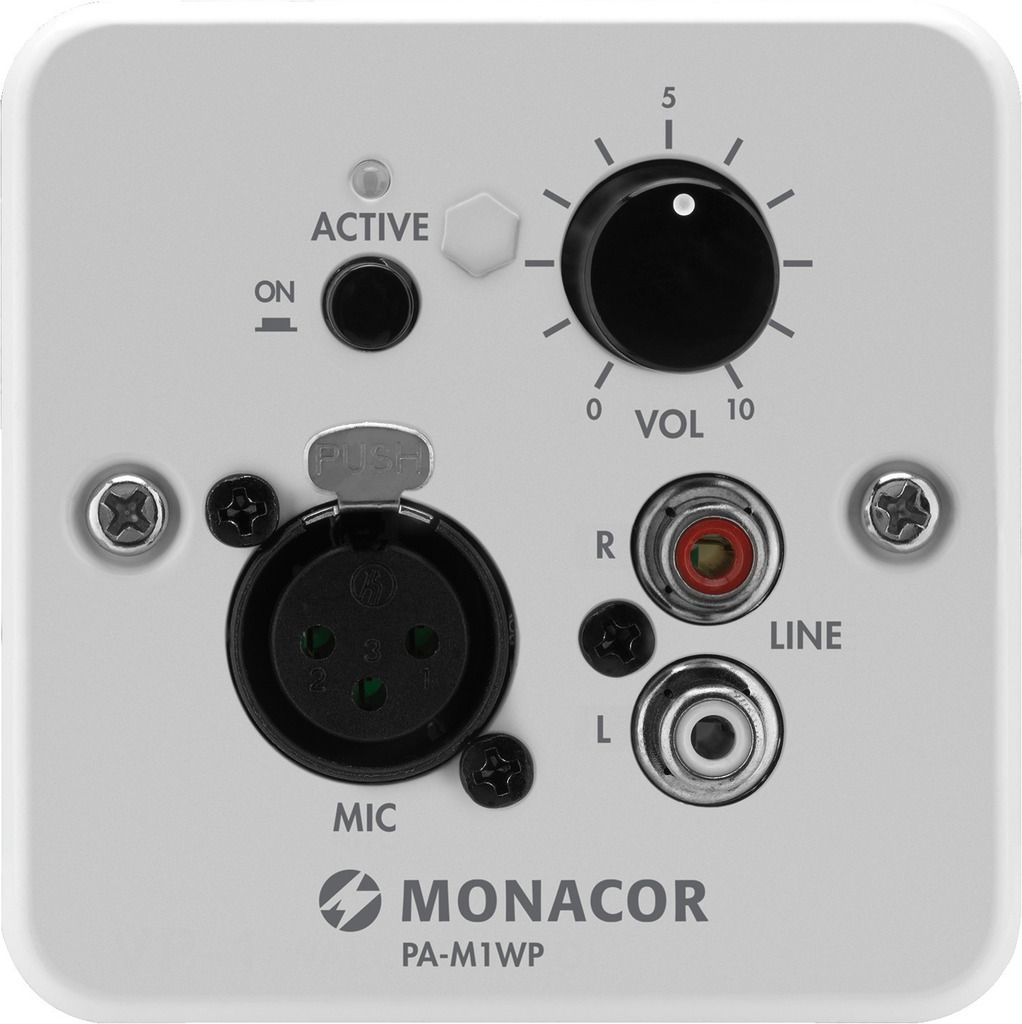

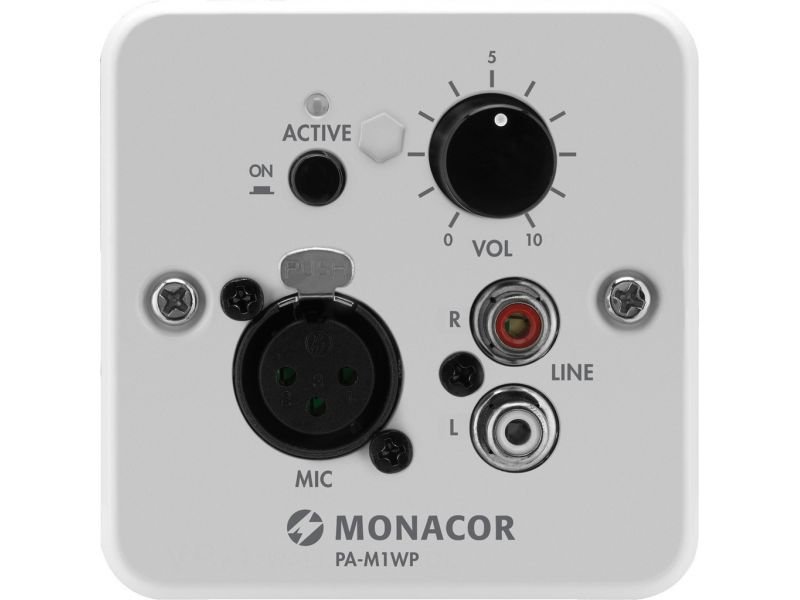

PA-M1WP

Wall module,
for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412.
  • Intended application: volume control of 1 zone, local insertion of audio signals
  • 2 x RCA jack for line signals
  • Microphone connection via 3-pole XLR jack
  • 14 V phantom power
  • Volume control
  • Signal selector button with LED indication which allows a priority circuit of locally inserted audio signals (MIC or LINE) in the respective zone
  • Connection to PA-M224 or PA-M412 and power supply via RJ45 jack and Cat. 5 network cable (copper, supplied w/o cable), cable length up to 200 m
  • Matching flush-mounted housing ATT-300C is available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description wall module
Type remote control of 1 zone
Colour white
Material plastic
Suitable for PA-M224, PA-M412
Power supply via PA-M224, PA-M412
Dimensions 80 x 80 x 50 mm
Weight 90 g
Connections 1 x XLR (microphone), 1 x RCA L/R (line), 1 x RJ45
Other features 14 V phantom power
Packing unit 1
Packaging dimensions (W x H x L) 0.09 x 0.09 x 0.085 m
Gross weight 0.135 kg
Net weight 0.09 kg

Fisiere de descarcat

Fisa produsului PA-M1WP konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
