PEB-2618S

Cod EAN: 4007754211108

Alarm piezo buzzer Sound pressure: 105 dB/95 dB (30 cm distance) 2,700Hz continuous or pulsed sound Power supply: DC 12 V/20 mA/15 mA Voltage range: DC 6-18 V Single-hole mounting: Ø 18 mm Hole distance: 34 mm Ø 29 mm x 24 mm Admissible ambient tempe...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PEB-2618S

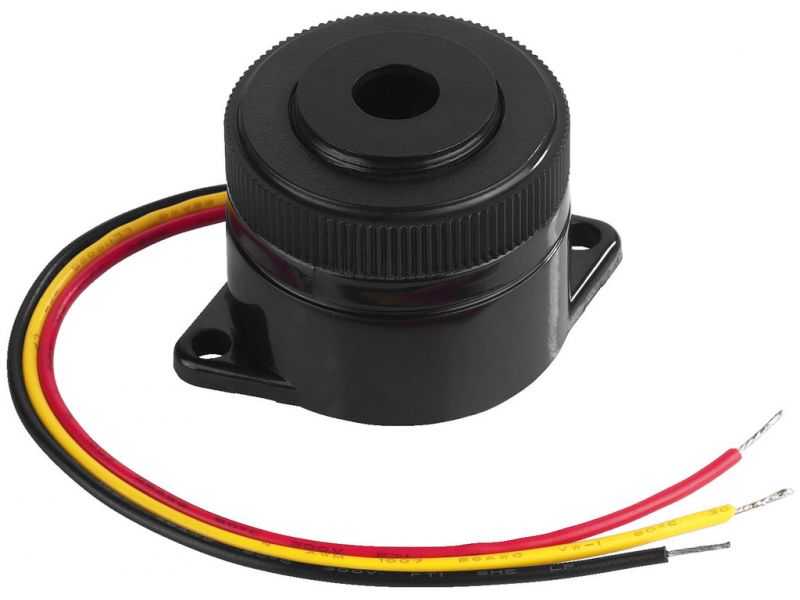

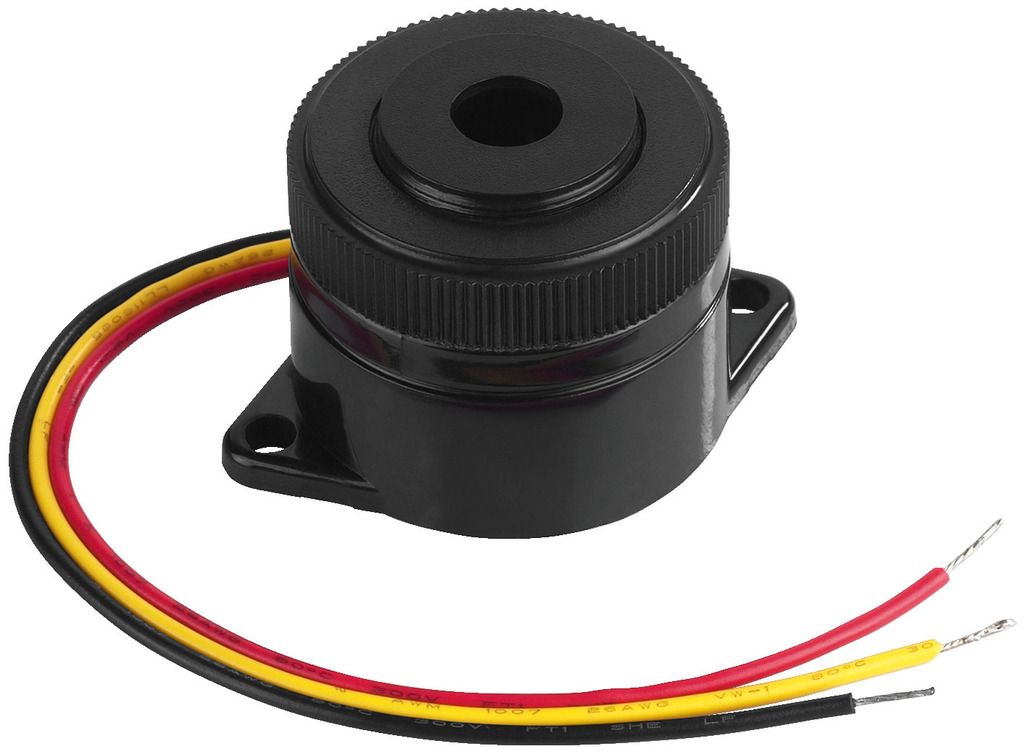

Alarm piezo buzzer
  • Sound pressure: 105 dB/95 dB (30 cm distance)
  • 2,700Hz continuous or pulsed sound
  • Power supply: DC 12 V/20 mA/15 mA
  • Voltage range: DC 6-18 V
  • Single-hole mounting: Ø 18 mm
  • Hole distance: 34 mm
  • Ø 29 mm x 24 mm
  • Admissible ambient temperature: -20 °C to +60 °C
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Description alarm piezo buzzer
Alarm signal continuous sound, pulsed sound
Frequency 2,700 Hz
SPL 105 dB
Voltage range DC 6-18 V
Width 29 mm
Height 29 mm
Depth 24 mm
Admiss. ambient temp. -20-+60 °C
Weight 12 g

Fisiere de descarcat

Fisa produsului PEB-2618S konformitaetserklaerung-ce konformitaetserklaerung-ukca
