PA-4000RC

Cod EAN: 4007754218442

PA 4-zone paging desktop microphone, for connection to PA-40120 and PA-6040MPX. Selection buttons for 4 zones, for activating one or several zones ALL CALL button for activating all of the 4 zones Autom. chime via microphone announcement button (ta...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PA-4000RC

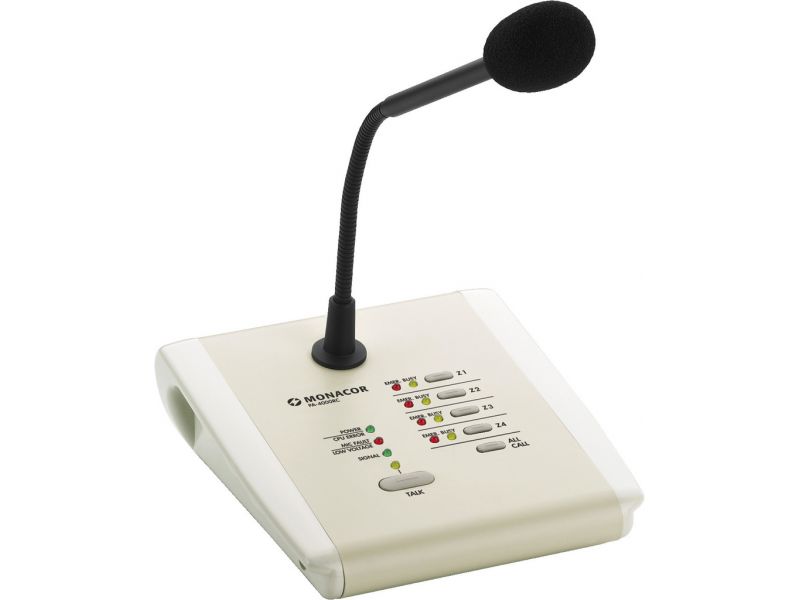

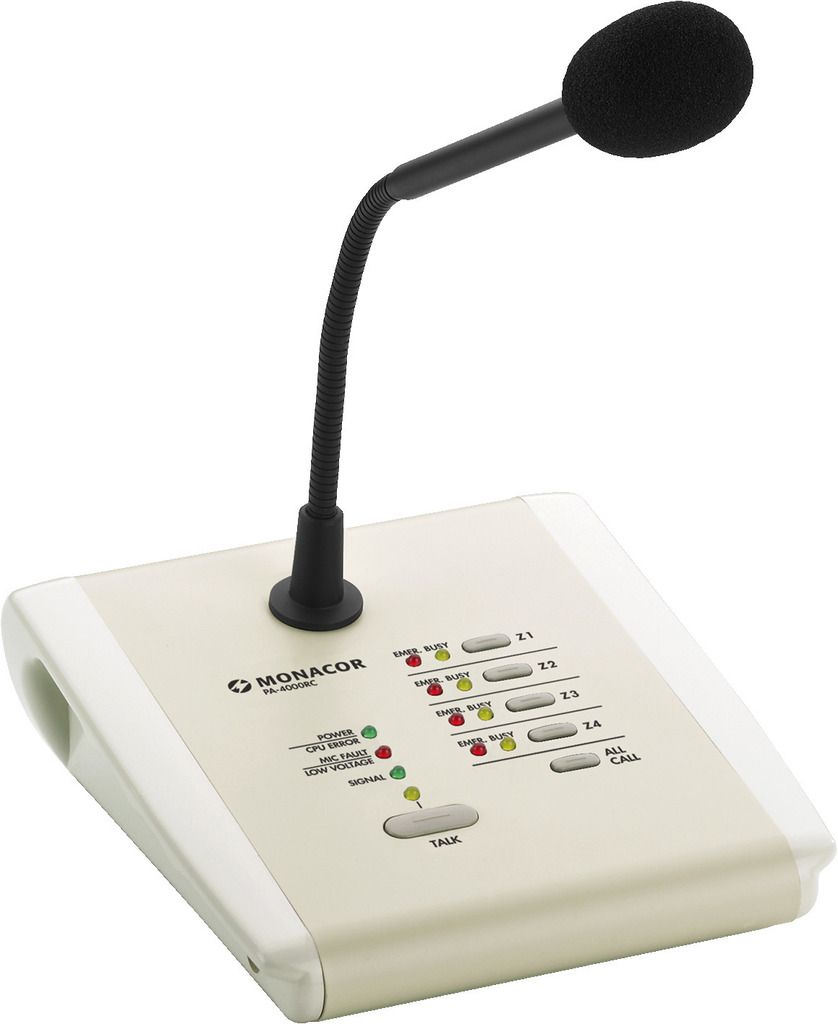

PA 4-zone paging desktop microphone,
for connection to PA-40120 and PA-6040MPX.
  • Selection buttons for 4 zones, for activating one or several zones
  • ALL CALL button for activating all of the 4 zones
  • Autom. chime via microphone announcement button (talk)
  • LED status indication for the zone buttons (busy, emergency), power, mic fault, signal and talk
  • Built-in gooseneck electret microphone
  • Adjustable microphone sensitivity
  • Chime can be activated or deactivated as required
  • 24 V power supply via PA-40120 or PA-6040MPX
  • Two RJ45 jacks for connection to PA-40120, PA-6040MPX or optional power supply and additional microphones PA-4000RC
  • Supplied with connection module for PA-40120 and PA-6040MPX
  • Up to 32 x PA-4000RC can be connected to PA-40120 or PA-6040MPX via bus
  • Supplied with 3 m connection cable (Cat. 5e)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description PA desktop microphone
Transmission method cable
Polar pattern omnidirectional
Power supply via PA-40120, PA-6040MPX or optional 24 V power supply
Admiss. ambient temp. 0-40 °C
Weight 0.9 kg
Cable Cat. 5e, 3 m
Connection 2 x RJ45
Packaging dimensions (W x H x L) 0.16 x 0.18 x 0.375 m
Gross weight 1.202 kg
Net weight 0.9 kg

Fisiere de descarcat

Fisa produsului PA-4000RC konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
