MPX-622/SW

Cod EAN: 4007754182668

6-channel stereo audio mixer, specifically for PA and DJ applications. 2 mono microphone channels with talkover switch and 2-way tone control 4 stereo input channels, switchable phono/line (channels 1 and 2) or line/line (channels 3 and 4) 1 stereo...

Citeste mai mult

Intreaba despre produs
Cumpara acum

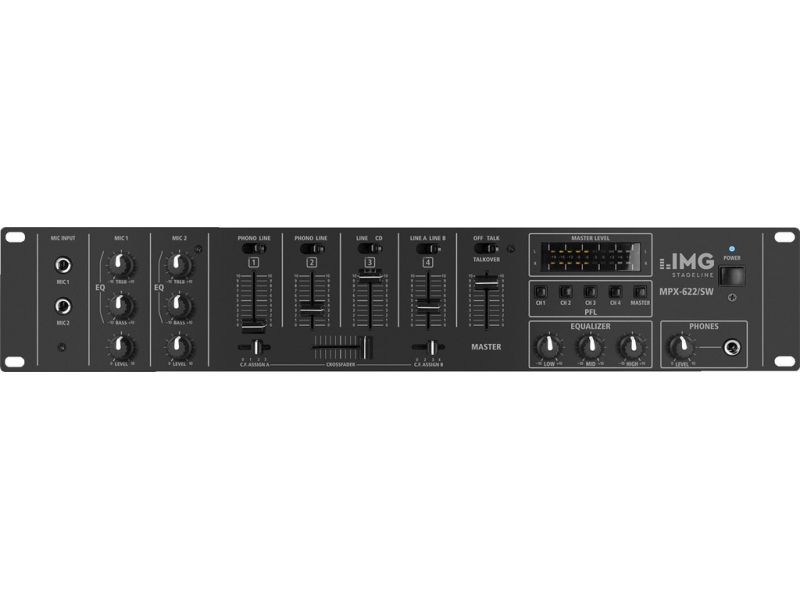

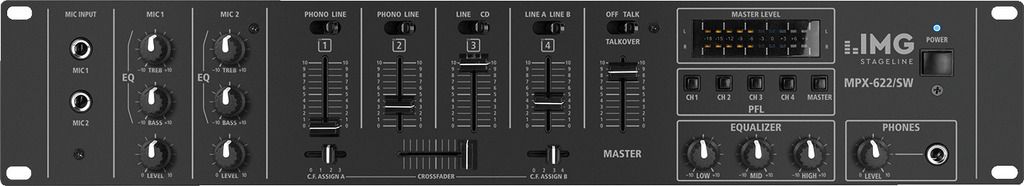

MPX-622/SW

6-channel stereo audio mixer,
specifically for PA and DJ applications.
  • 2 mono microphone channels with talkover switch and 2-way tone control
  • 4 stereo input channels, switchable phono/line (channels 1 and 2) or line/line (channels 3 and 4)
  • 1 stereo master output
  • 1 stereo record output, independent of the master
  • 3-way equalizer with centre click for master output and record output
  • Pre-fader listening to each stereo input channel and the master output via adjustable stereo headphone output
  • Switchable crossfader for crossfading between channels 1-4, any assignment possible
  • Stereo LED level display
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

No. of channels 6
No. of inputs 8
Mic input 1 mV, 2 x 6.3 mm jack
Line input 150 mV, 5 x RCA L/R
CD input 150 mV, 1 x RCA L/R
Phono input 3 mV, 2 x RCA L/R
Master output 0.775 V/600 Ω, 1 x RCA L/R
Record output 0.775 V/600 Ω, 1 x RCA L/R
Headphones ≥ 8 Ω, 1 x 6.3 mm jack
Frequency range 20-20,000 Hz
THD 0.1%
S/N ratio 65 dB
Equalizer bass ±10 dB/100 Hz
Equalizer midrange ±10 dB/1 kHz
Equalizer treble ±10 dB/10 kHz
Talkover -15 dB
Crossfader yes
Power supply ˜ 230 V/50 Hz/10 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 10 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 89 x 95 mm, 2 RS
Width 482 mm
Height 89 mm
Depth 95 mm
Rack units, RU 2
Weight 2.4 kg
Packaging dimensions (W x H x L) 0.12 x 0.155 x 0.56 m
Gross weight 3.18 kg
Net weight 2.47 kg
