PM-2/30UA

Cod EAN: 4007754020557

Moving coil panel meter With mirror scale All-plastic housing Quality class 2 Zero point correction Prewired for illumination Measuring range: 0.03 mA For illumination purposes, these panel meters can subsequently be fitted with two LEDs with ser...

Citeste mai mult

Intreaba despre produs
Cumpara acum

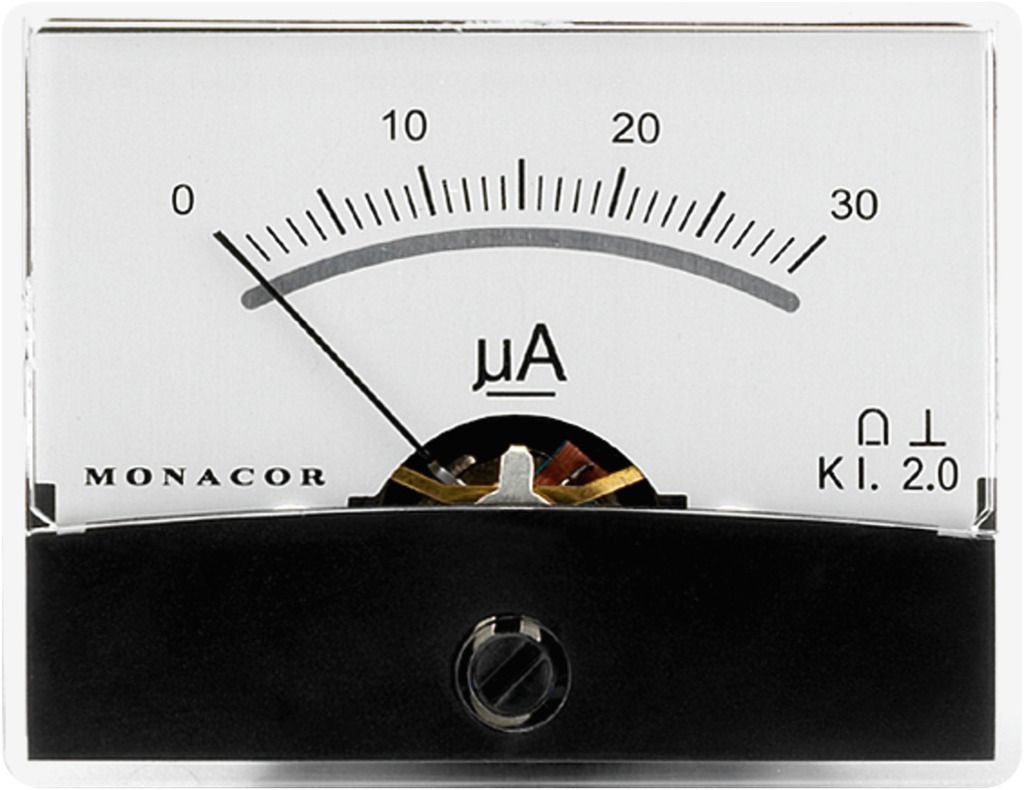

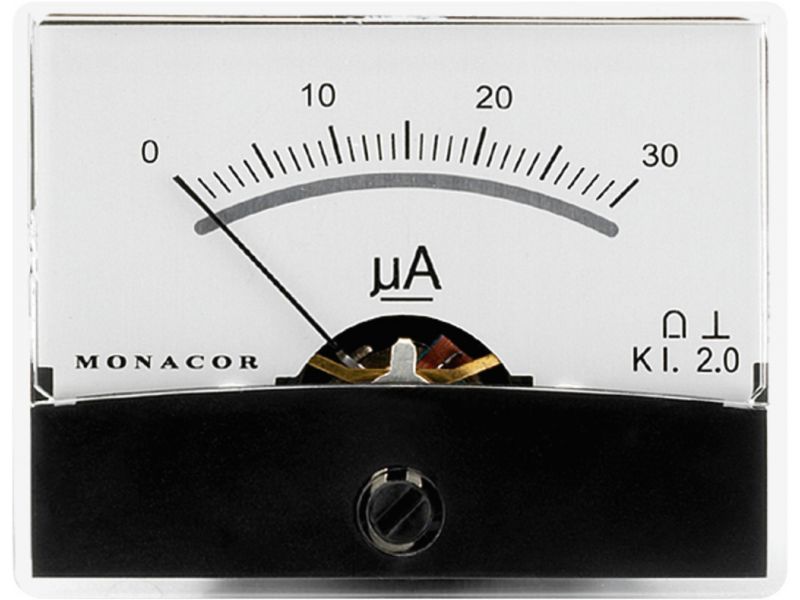

PM-2/30UA

Moving coil panel meter
  • With mirror scale
  • All-plastic housing
  • Quality class 2
  • Zero point correction
  • Prewired for illumination
  • Measuring range: 0.03 mA
For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Measuring range 0.03 mA
Internal resistance 6.5 kΩ
Dimensions display 60.3 x 46.3 mm
Mounting cutout Ø 37.5 mm
Mounting depth 23 mm

Fisiere de descarcat

Fisa produsului PM-2/30UA Manual de utilizare
