SPH-200KE

Cod EAN: 4007754064865

Top hi-fi bass-midrange speaker, 120 W, 8 Ω Kevlar cone Aluminium diecast basket for 3-way and also 2-way combinations of highest quality For full range applications Excellent bass reproduction in the entire hi-fi range Manufacturer information:...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-200KE

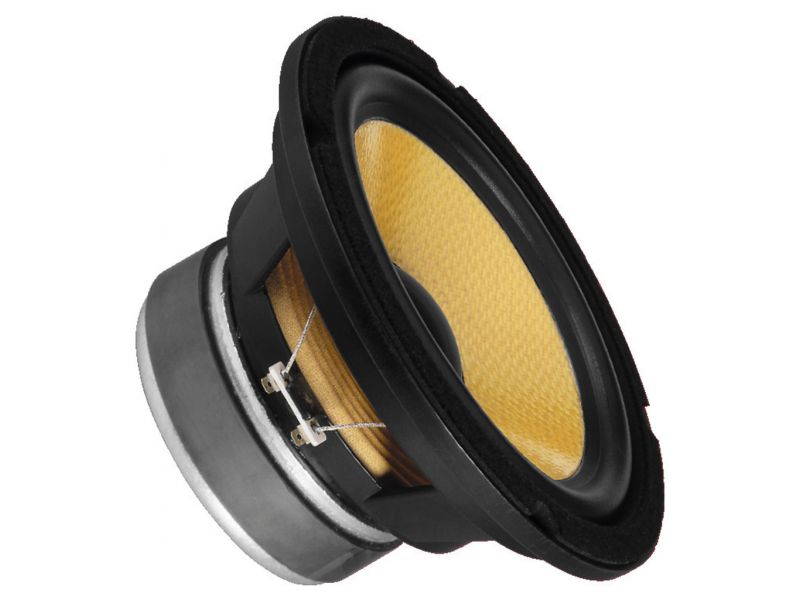

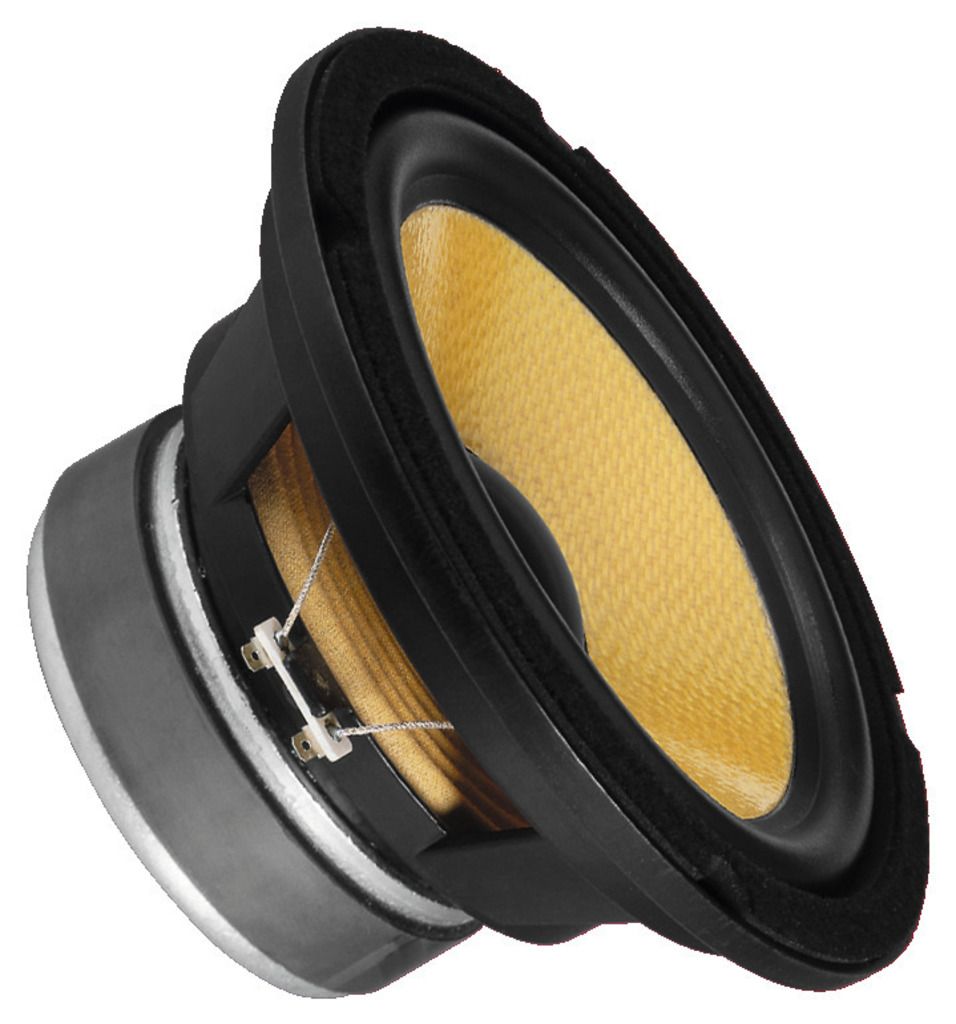

Top hi-fi bass-midrange speaker, 120 W, 8 Ω
  • Kevlar cone
  • Aluminium diecast basket for 3-way and also 2-way combinations of highest quality
  • For full range applications
  • Excellent bass reproduction in the entire hi-fi range
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-4,500 Hz
Resonant frequency (fs) 28 Hz
Power rating (RMS) 80 W
Peak music power output (MAX) 120 W
SPL 90 dB/W/m
Suspension compl. (Cms) 0.89 mm/N
Moving mass (Mms) 37 g
Mech. Q factor (Qms) 4.65
Electr. Q factor (Qes) 0.41
Total Q factor (Qts) 0.38
Equivalent volume (Vas) 54 l
DC resistance (Re) 6.2 Ω
Force factor (BxL) 9.90 Tm
Voice coil induct. (Le) 0.75 mH
Voice coil diameter Ø 50 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 4.75 mm
Eff. cone area (Sd) 207 cm2
Magnet weight 840 g + 50 g
Magnet diameter Ø 120 mm
Mounting cutout Ø 182 mm
Mounting depth 89 mm
Dimensions Ø 212 mm x 100 mm
Outside diameter Ø 212 mm
Width Ø 212 mm
Height Ø 212 mm
Depth 100 mm
Colour black/yellow
Admiss. ambient temp. 0-40 °C
Weight 2.72 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.22 x 0.125 x 0.23 m
Gross weight 2.955 kg
Net weight 2.72 kg

Fisiere de descarcat

Fisa produsului SPH-200KE
