POE-130MID
Cod EAN: 4007754234855
Power over Ethernet midspan, for feeding the supply voltage into a PoE network at any position required. For this purpose, an existing network cable is fed through. 1 port (RJ45) with 10/100/1,000 Mbps Output power: 30 W Output voltage: DC 56 V Com...

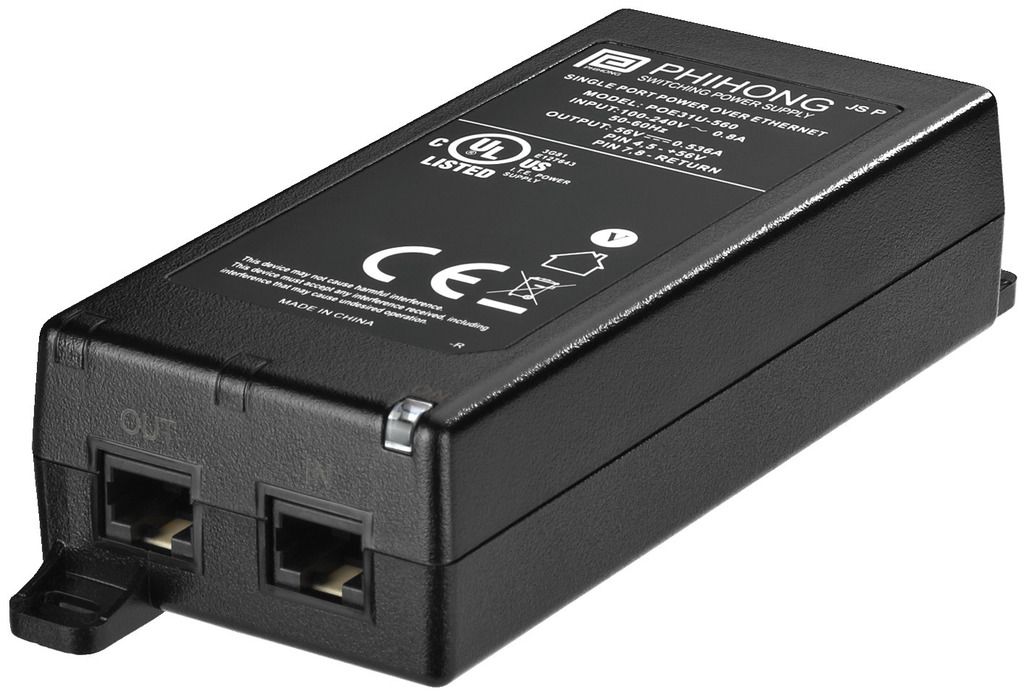

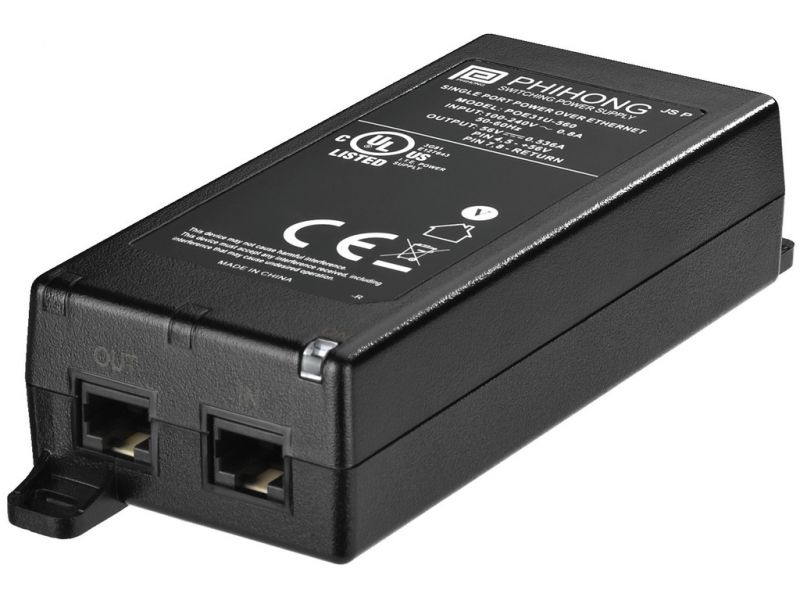

POE-130MID
Power over Ethernet midspan,
for feeding the supply voltage into a PoE network at any position required. For this purpose, an existing network cable is fed through.
- 1 port (RJ45) with 10/100/1,000 Mbps
- Output power: 30 W
- Output voltage: DC 56 V
- Compatible with standard IEEE802.3at
- Power supply: ˜100-240 V/50-60 Hz
- Dimensions: 65 x 40 x 165 mm
- Weight: 220 g
Please order matching mains cable AAC-180/SW or AAC-182/SW separately.
Manufacturer information:
Phihong Technology Co. Ltd.
No.568
Fuxing 3rd Rd.
Guishan Dist
Taoyuan City (33383)
Taiwan, R.O.C.
phsales@phihong.com.tw
No.568
Fuxing 3rd Rd.
Guishan Dist
Taoyuan City (33383)
Taiwan, R.O.C.
phsales@phihong.com.tw
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Description | Power over Ethernet midspan |
| Nominal value | output power: 30 W, output voltage: DC 56 V |
| Colour | black |
| Suitable for | PoE network |
| Power supply | ˜ 100-240 V/50-60 Hz |
| Dimensions | 65 x 40 x 165 mm |
| Weight | 220 g |
| Connections | RJ45 |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.075 x 0.05 x 0.175 m |
| Gross weight | 0.235 kg |
| Net weight | 0.22 kg |
