RL-11

Cod EAN: 4007754430035

PA pendant sound projector for ceiling mounting 100 V transmission technology 2-way speaker system (13 cm) with high sound pressure and an excellent frequency range 100 V transformer with power taps on the cable 15/7.5/3.75 W Silver-coloured alumin...

Citeste mai mult

Intreaba despre produs
Cumpara acum

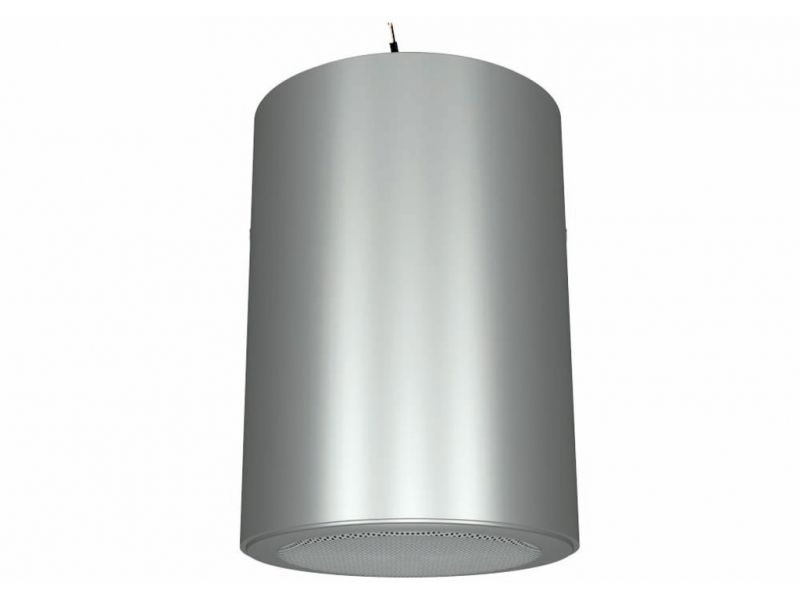

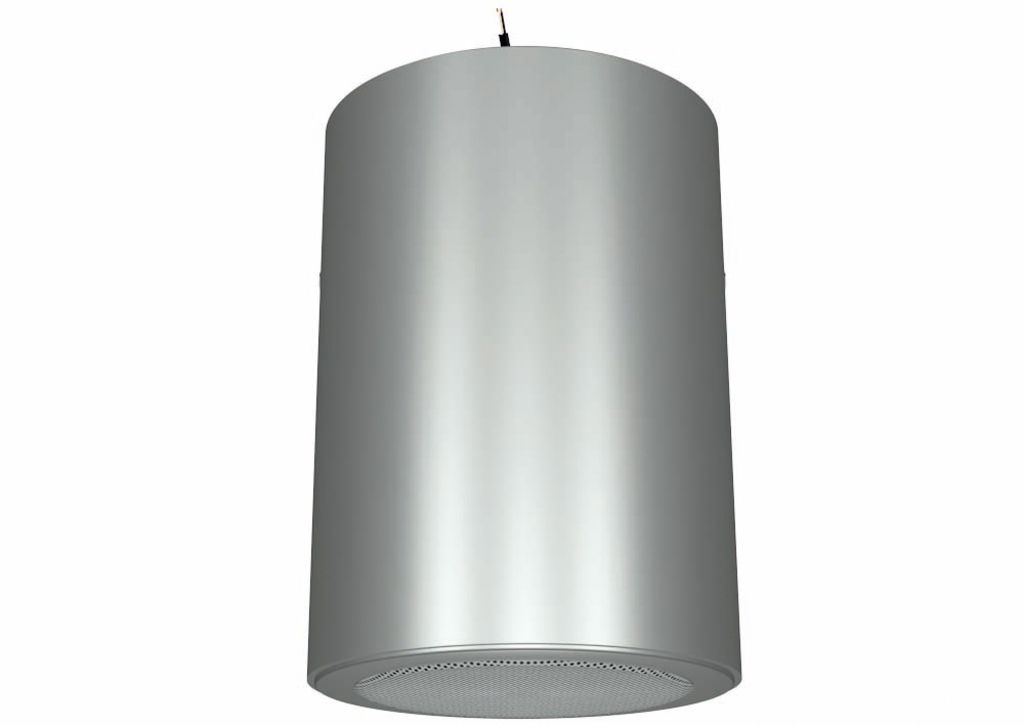

RL-11

PA pendant sound projector
for ceiling mounting
  • 100 V transmission technology
  • 2-way speaker system (13 cm) with high sound pressure and an excellent frequency range
  • 100 V transformer with power taps on the cable 15/7.5/3.75 W
  • Silver-coloured aluminium housing with front protective grille
  • Connection via 2-core cable (length: 3 m)
  • Supplied with canopy
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 15 W
Power rating (RMS) 15/7.5/3.75 W
Frequency range 60-20,000 Hz
System 2-way
Number of speakers 1
Speaker size 13 cm (5")
SPL 91 dB/W/m
Max. rated SPL 103 dB
Radiation angle/beam angle 130°
Radiation angle, horizontal 130°
Radiation angle, vertical 130°
Housing material aluminium
Colour silver, RAL 9006
Mounting device pendant suspension
Dimensions Ø 144 mm x 210 mm
Width Ø 144 mm
Height Ø 144 mm
Depth 210 mm
Weight 2.7 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.175 x 0.175 x 0.267 m
Gross weight 2.9 kg
Net weight 2.8 kg

Fisiere de descarcat

Fisa produsului RL-11
