RL-1ENABDS

Cod EAN: 4007754263886

PA A/B sound projector for wall mounting, with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849. 100 V transmission technology 13 cm full range speaker with dual voice coil 2 x 100 V transformator...

Citeste mai mult

Intreaba despre produs
Cumpara acum


RL-1ENABDS

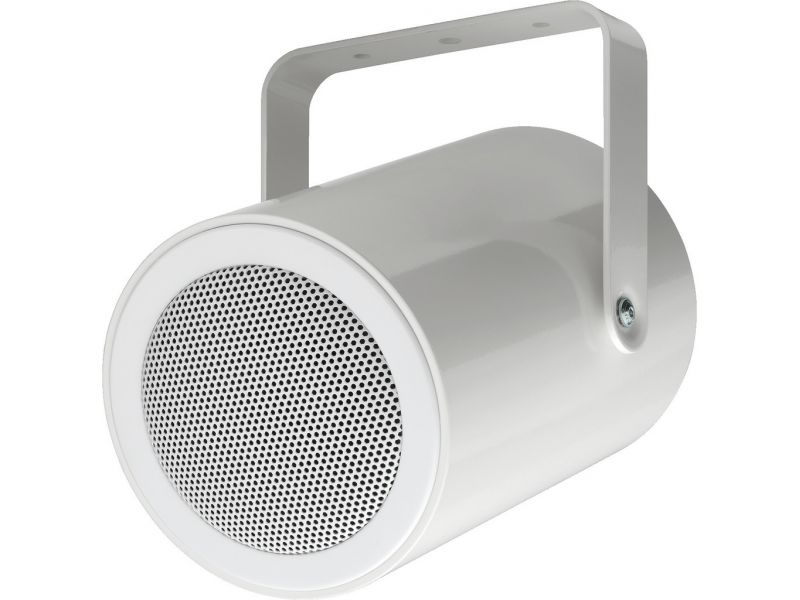

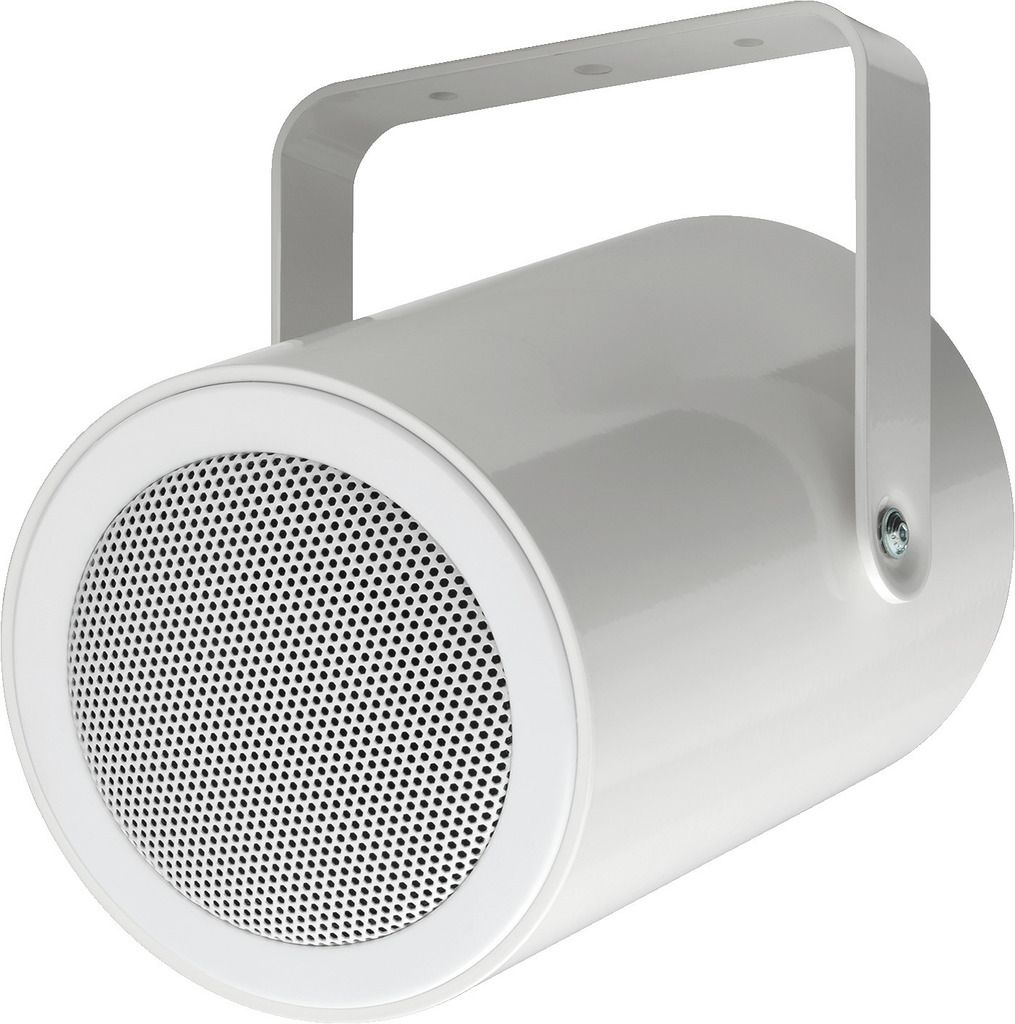

PA A/B sound projector for wall mounting,
with EN 54-24 certification for voice alarm systems with A/B speaker distribution according to EN 60849.
  • 100 V transmission technology
  • 13 cm full range speaker with dual voice coil
  • 2 x 100 V transformator with power taps on the cable 6/3/1.5 W
  • Connection via 2 x 4-core cable (length: 1.5 m)
  • Metal housing with front protective grille
  • Supplied with pan/tilt bracket and mounting accessories
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 2 x 6 W
Power rating (RMS) 2 x 6/3/1.5 W
Frequency range 80-20,000 Hz
Full range speaker 13 cm, dual voice coil
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 130°
Radiation angle, horizontal 130°
Radiation angle, vertical 130°
Housing material aluminium
Colour white
Mounting device bracket
Admiss. ambient temp. -10 °C to +55 °C
Dimensions Ø 144 mm x 210 mm
Width Ø 144 mm
Height Ø 144 mm
Depth 210 mm
Weight 2.3 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.185 x 0.285 x 0.185 m
Gross weight 2.51 kg
Net weight 2.32 kg

Fisiere de descarcat

Fisa produsului RL-1ENABDS konformitaetserklaerung-oem Manual de utilizare
