RL-6

Cod EAN: 4007754429961

PA pendant sound projector for ceiling mounting 100 transmission technology Full range speaker (13 cm) with high sound pressure and excellent frequency range 100 V transformer with power taps on the cable 6/3/1.5 W White aluminium housing with prot...

Citeste mai mult

Intreaba despre produs
Cumpara acum

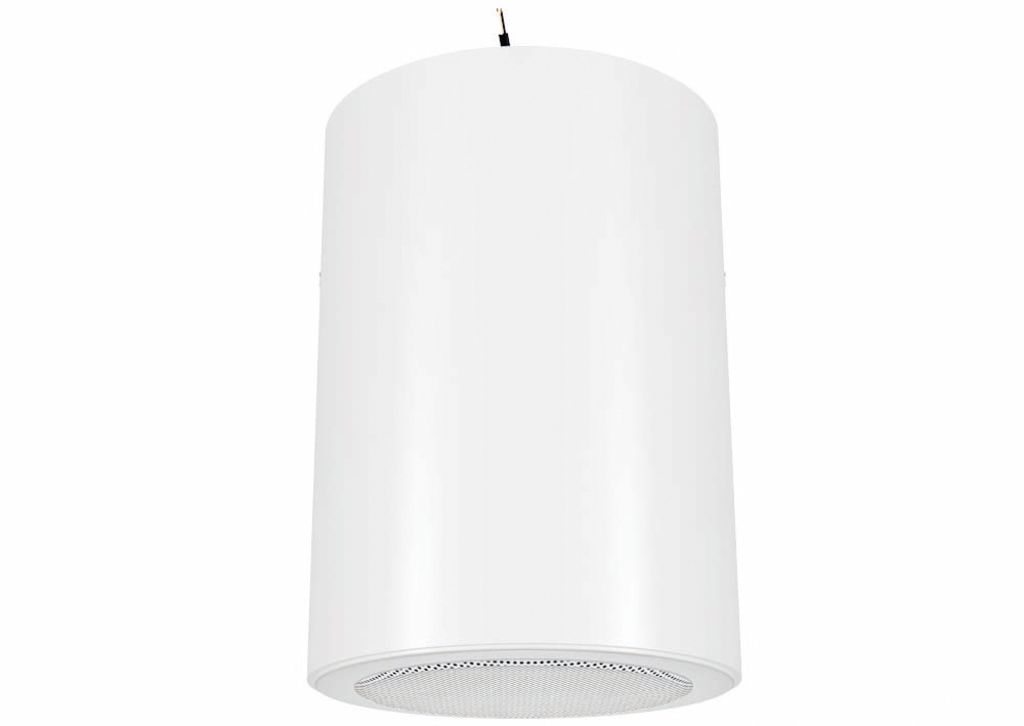

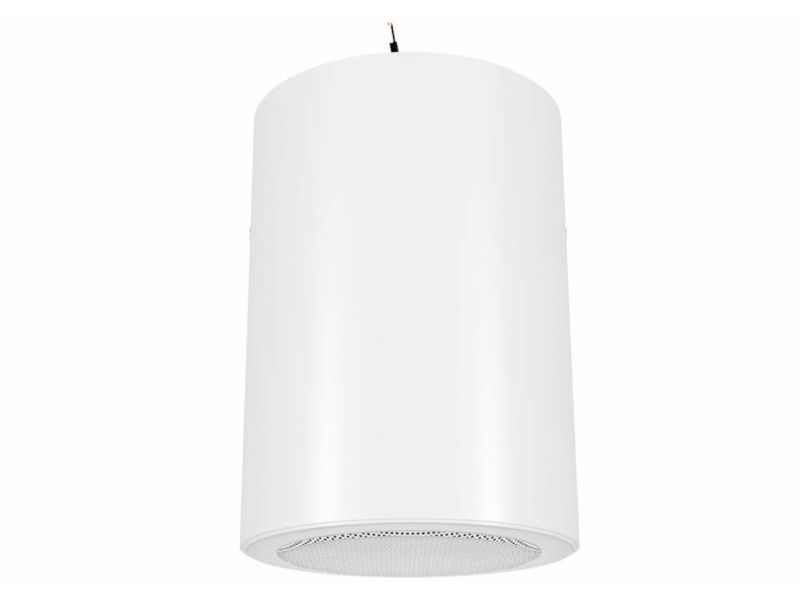

RL-6

PA pendant sound projector
for ceiling mounting
  • 100 transmission technology
  • Full range speaker (13 cm) with high sound pressure and excellent frequency range
  • 100 V transformer with power taps on the cable 6/3/1.5 W
  • White aluminium housing with protective grille
  • Connection via 4-core cable (length: 3 m)
  • Supplied with canopy
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3/1.5 W
Frequency range 70-19,000 Hz
Full range speaker 13 cm
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 130°
Radiation angle, horizontal 130°
Radiation angle, vertical 130°
Housing material aluminium
Colour white, RAL 9010
Mounting device pendant suspension
Dimensions Ø 144 mm x 210 mm
Width Ø 144 mm
Height Ø 144 mm
Depth 210 mm
Weight 2.6 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.175 x 0.175 x 0.267 m
Gross weight 2.7 kg
Net weight 2.6 kg

Fisiere de descarcat

Fisa produsului RL-6
