RU-8011D/5
Cod EAN: 4007754268683
Diversity UHF PLL wideband receiver Bandwidth: 36 MHz 6 groups, each with up to 22 compatible preset channels (114 channels) REMOSET ULTRASONIC technology for receiver/transmitter synchronisation Auto-scan function Pilot tone squelch and noise mute B...

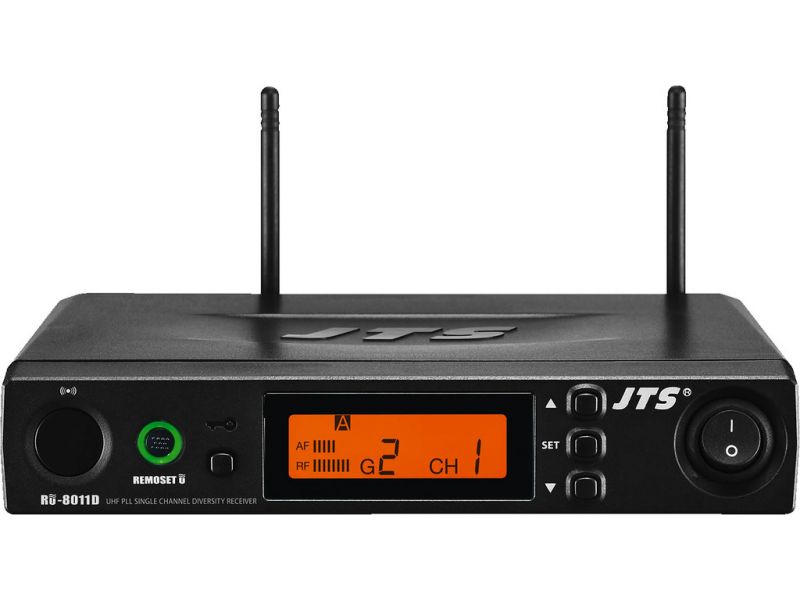

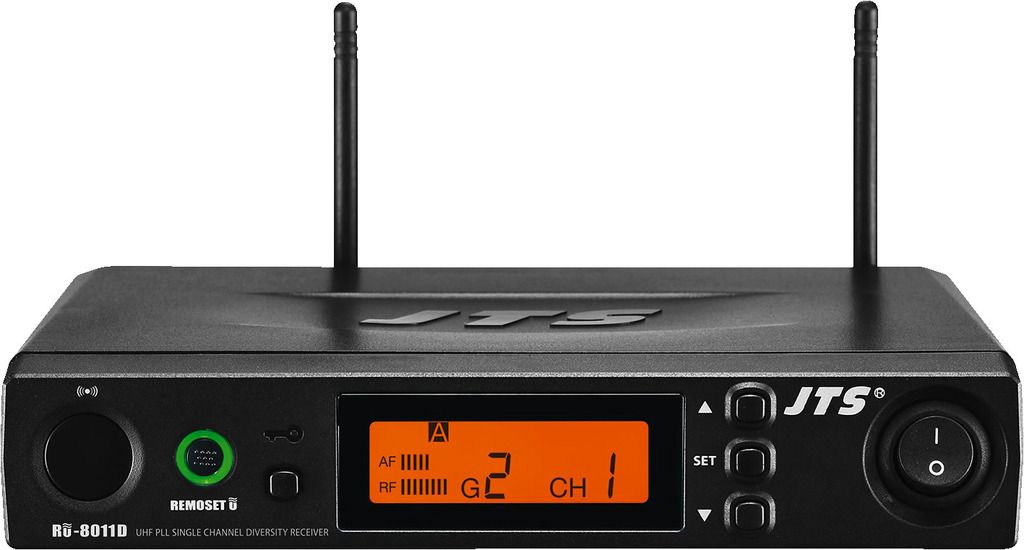

RU-8011D/5
Diversity UHF PLL wideband receiver
- Bandwidth: 36 MHz
- 6 groups, each with up to 22 compatible preset channels (114 channels)
- REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
- Auto-scan function
- Pilot tone squelch and noise mute
- Backlit display with status indications, e.g. group/channel, antenna A/B, RF receiving level, AF audio level
- XLR output (bal.) and 6.3 mm jack output (unbal.)
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Description | receiver unit |
| Carrier frequency range | 506-542 MHz |
| Audio frequency range | 60-15,000 Hz |
| Channels | 1 |
| THD | < 0.6% |
| Dynamic range | > 105 dB |
| Admiss. ambient temp. | 0-40 °C |
| Audio signal receiver | 630 mV/600 Ω XLR (line), 63 mV/600 Ω XLR (mic), 320 mV/600 Ω jack |
| Power supply receiver | via encl. power supply |
| Width receiver | 212 mm |
| Height receiver | 38 mm |
| Depth receiver | 144 mm |
| Weight receiver | 440 g |
| Connections receiver | 1 x XLR, bal., 1 x 6.3 mm jack, unbal. |
