SIC-520ROHS

Cod EAN: 4007754023886

Soldering station, 48 W, especially suitable for lead-free soldering according to EU directive (RoHS). Electronic temperature control: 150-420 °C LED bar graph display for temperature Plastic housing Replacement soldering iron: SIA-548ROHS Matching...

Citeste mai mult

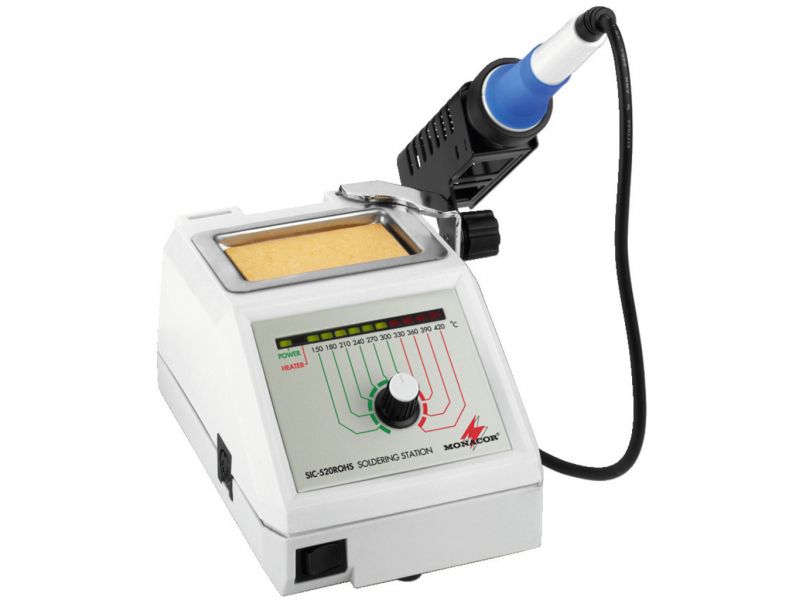

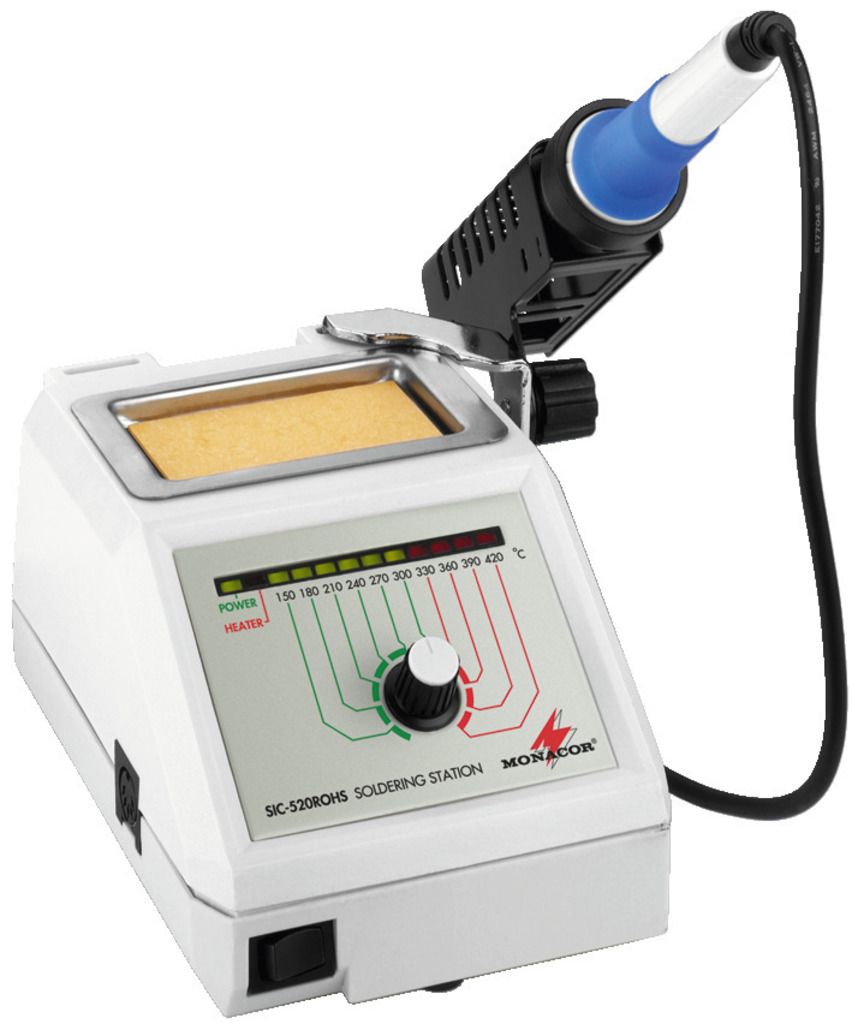

SIC-520ROHS

Soldering station, 48 W,
especially suitable for lead-free soldering according to EU directive (RoHS).
  • Electronic temperature control: 150-420 °C
  • LED bar graph display for temperature
  • Plastic housing
  • Replacement soldering iron: SIA-548ROHS
  • Matching replacement soldering tips: SIT-501ROHS, SIT-503ROHS, SIT-504ROHS, SIT-505ROHS
  • Power supply: ˜ 230 V/50 Hz/54 VA
  • Dimensions: 120 x 95 x 180 mm
  • Weight: 1.9 kg
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description soldering station, RoHS
Nominal value electronic temperature control: 150-420 °C
Type 48 W
Colour white
Material plastic housing
Power supply ˜ 230 V/50 Hz/54 VA
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 95 x 180 mm
Weight 1.84 kg
Other features LED bar graph
Packing unit 1
Packaging dimensions (W x H x L) 0.2 x 0.1 x 0.23 m
Gross weight 2.086 kg
Net weight 1.839 kg
