SIP-SPEAK/SW

Cod EAN: 8595159508184

SIP Speakers from 2N® For playing live messages or scheduled messages. It not only allows you to replay your messages from an IP telephone, you can also play them from your mobile phone or smartphone if a suitable IP control panel is used. Features o...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SIP-SPEAK/SW

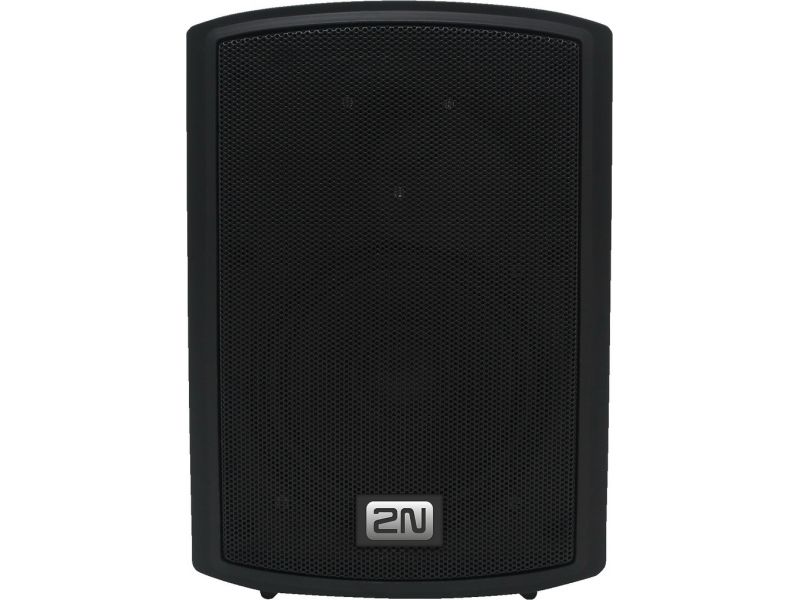

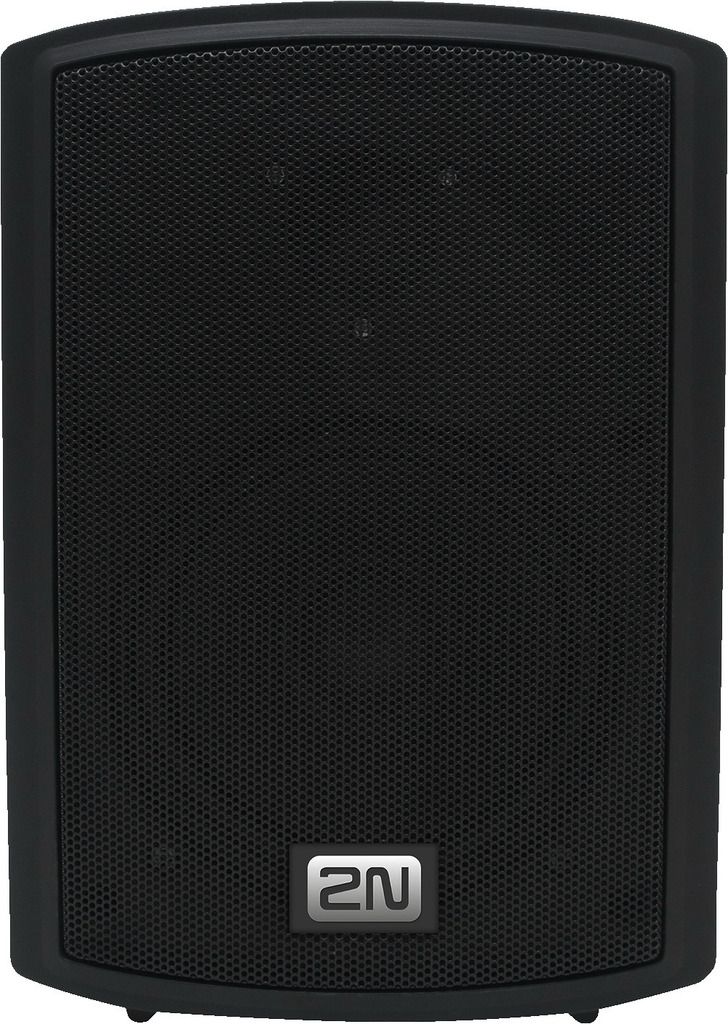

SIP Speakers from 2N®
For playing live messages or scheduled messages. It not only allows you to replay your messages from an IP telephone, you can also play them from your mobile phone or smartphone if a suitable IP control panel is used. Features of a complex audio system with SIP protocol. No further investments required for hardware or software, e.g. a PC.
Active SIP speaker
  • Black plastic housing
  • Integrated amplifier
  • Impedance: 8 Ω with an output power of 8 W (with PoE) or 12 W (with power supply via 12 V power supply)
  • Supports IP PBX (SIP)
  • Server-free audio solution, operation also possible without separate server
  • Easy installation via network cable to an existing PoE switch
  • Configuration via Web interface or a program
  • LAN/WAN connection, Ethernet RJ45, 10/100 Mbps
  • Live messages or scheduled messages
  • Reserve proxy server in case of control panel failure

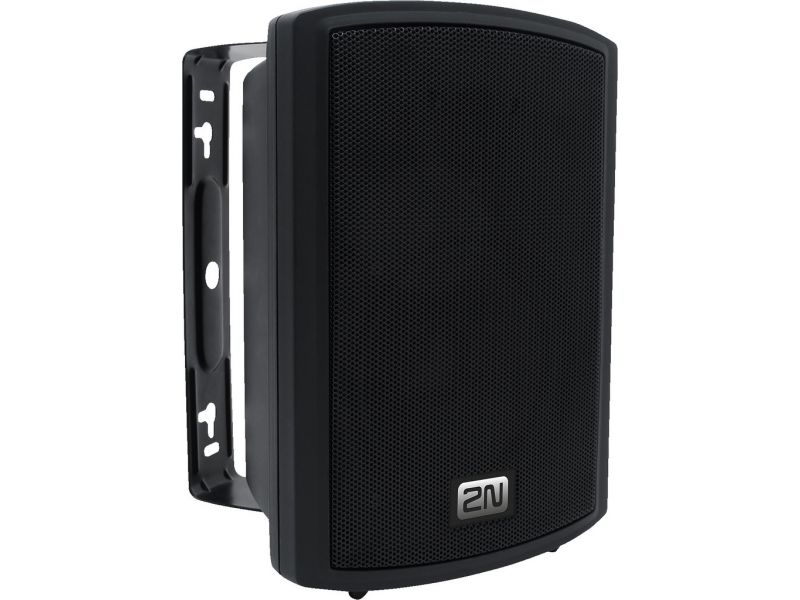

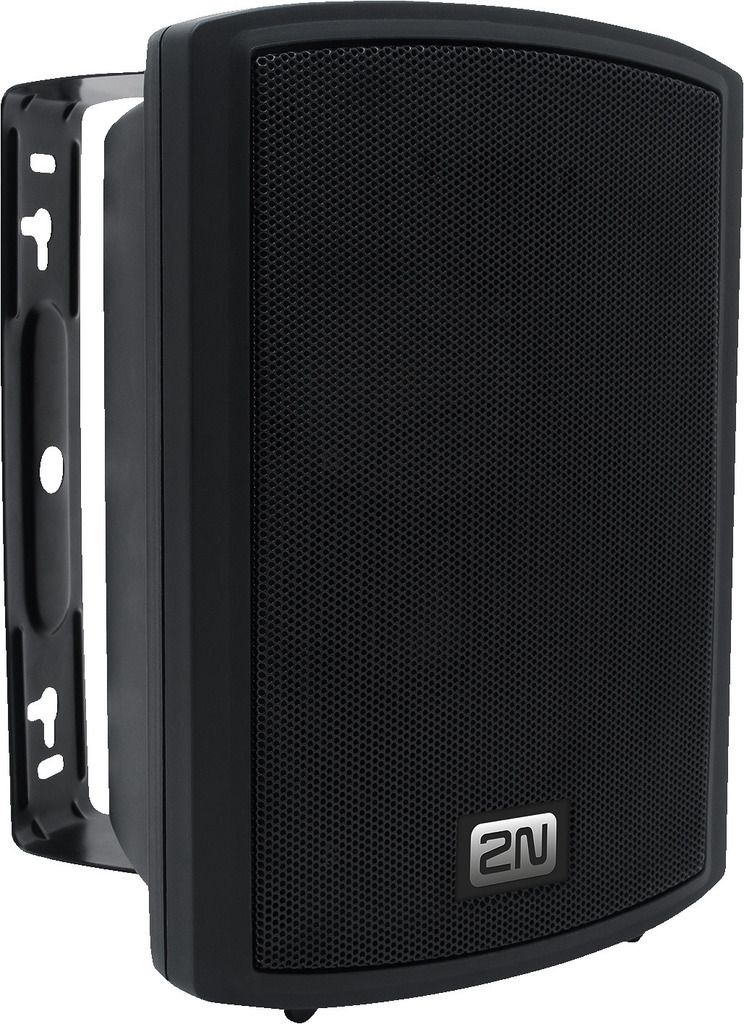

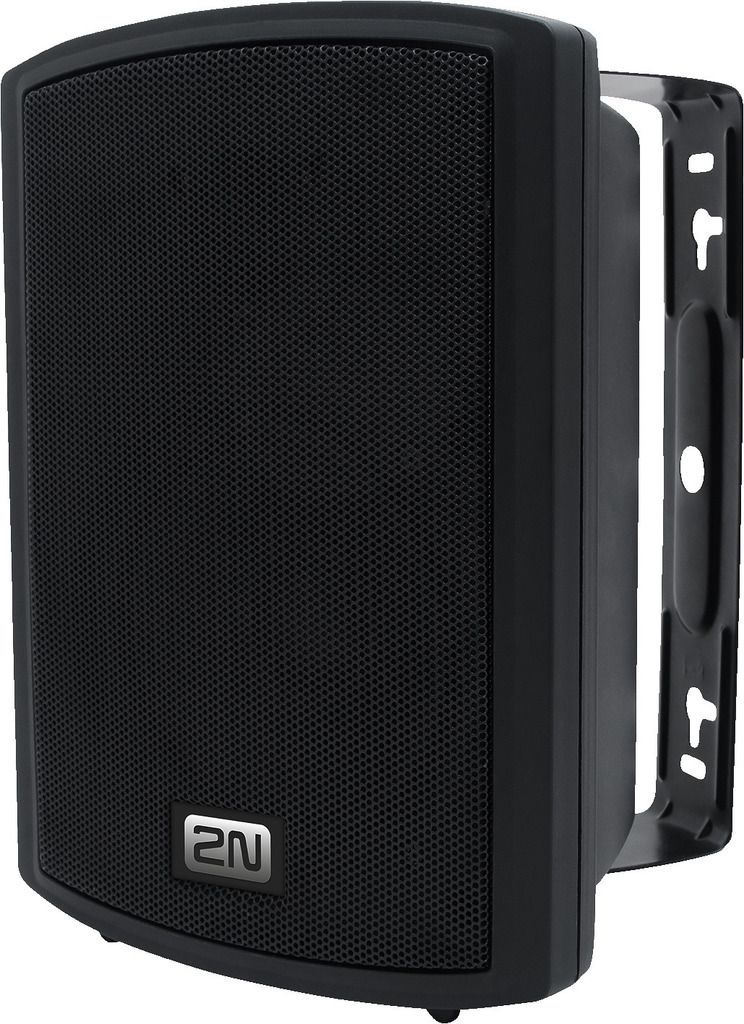

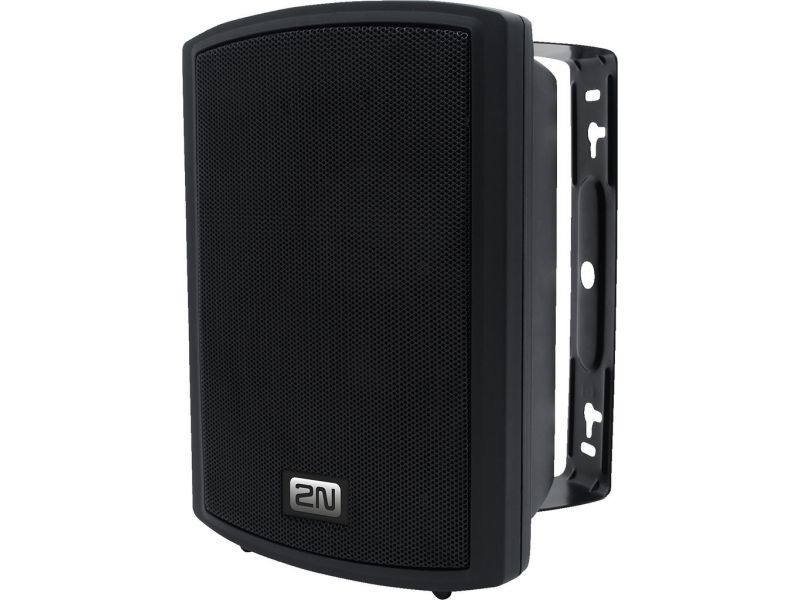

  • Movable mounting bracket for wall mounting
  • Power supply via PoE (IEEE 802.3af) or external power supply ( DC 12 V/2 A)
  • Matching power supply is available at option
  • 2N® Network Scanner app and 2N® IP Audio Manager are available

Parametrii

Active/passive active
Transmission technology LAN, SIP
Total output power 12 W
Power rating (RMS) 8 W (PoE) 12 W (12 V)
Impedance 8 Ω
Frequency range 75-20,000 Hz
THD 0.05%
Number of speakers 1
Speaker size 13 cm (5")
Max. rated SPL 99 dB
Radiation angle/beam angle H: 110°/V: 90°
Radiation angle, horizontal 110°
Radiation angle, vertical 90°
Housing material plastic
Colour black
Mounting device movable mounting bracket
Admiss. ambient temp. 0-40 °C
Power supply PoE or DC 12 V/2 A
Dimensions 176 x 250 x 143 mm
Width 176 mm
Height 250 mm
Depth 143 mm
Weight 2.3 kg

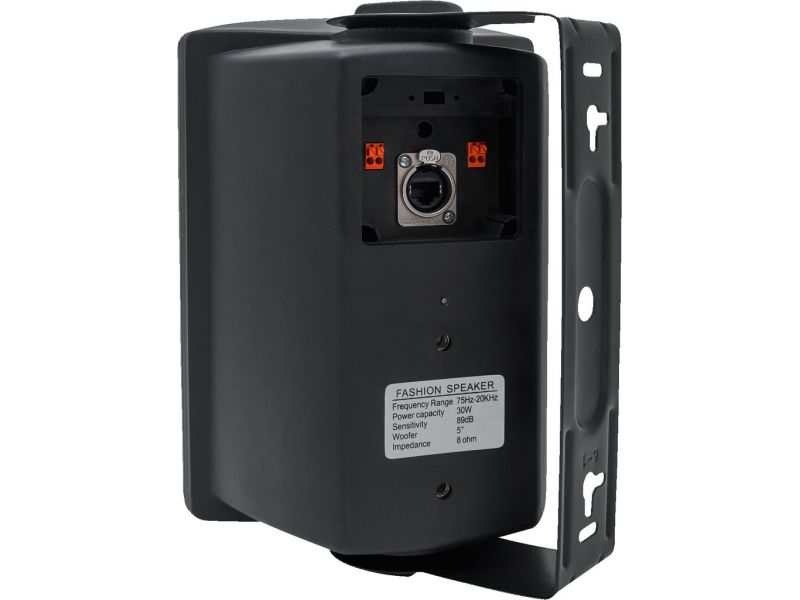

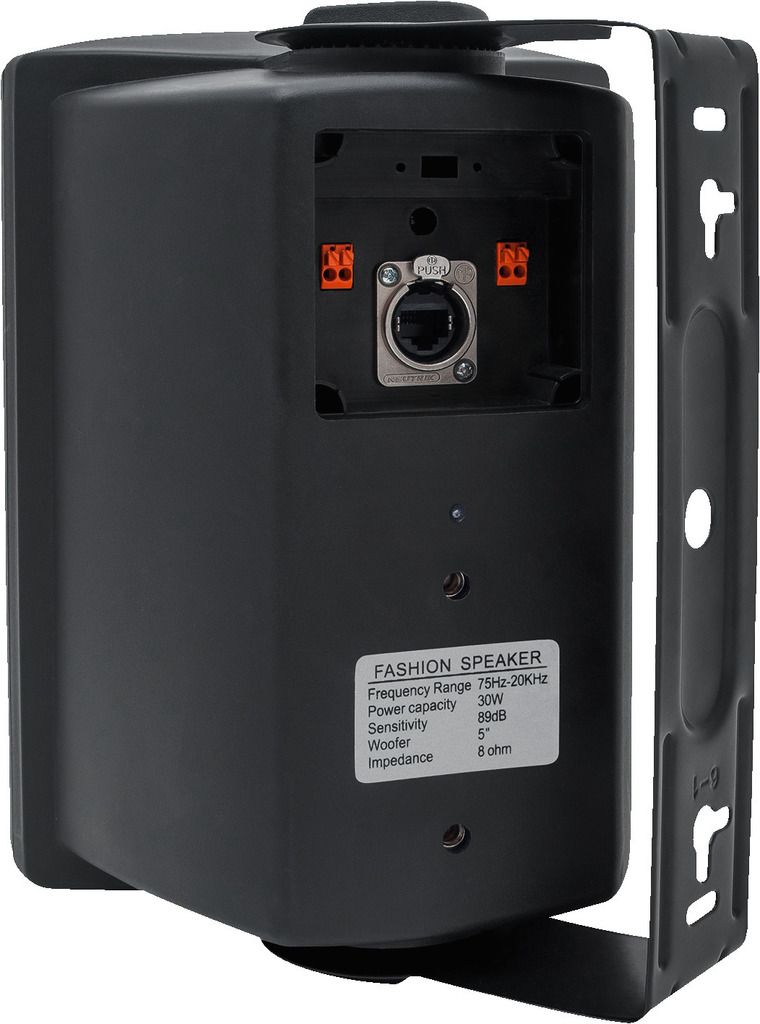

Inputs RJ45, DC in
Outputs SPK out
Other features LAN, SIP
Packaging dimensions (W x H x L) 0.23 x 0.345 x 0.19 m
Gross weight 2.71 kg
Net weight 2.42 kg

Fisiere de descarcat

Fisa produsului SIP-SPEAK/SW gnu-general-public-license gnu-general-public-license konformitaetserklaerung-oem Manual de utilizare
