SIP-MIC
Cod EAN: 8595159511429
SIP Microphone Station from 2N® With SIP technology and various functions, e.g. transmission into 12 zones, two-way communication thanks to built-in speaker or reproduction of pre-recorded announcements. Each of the stated functions is available with...

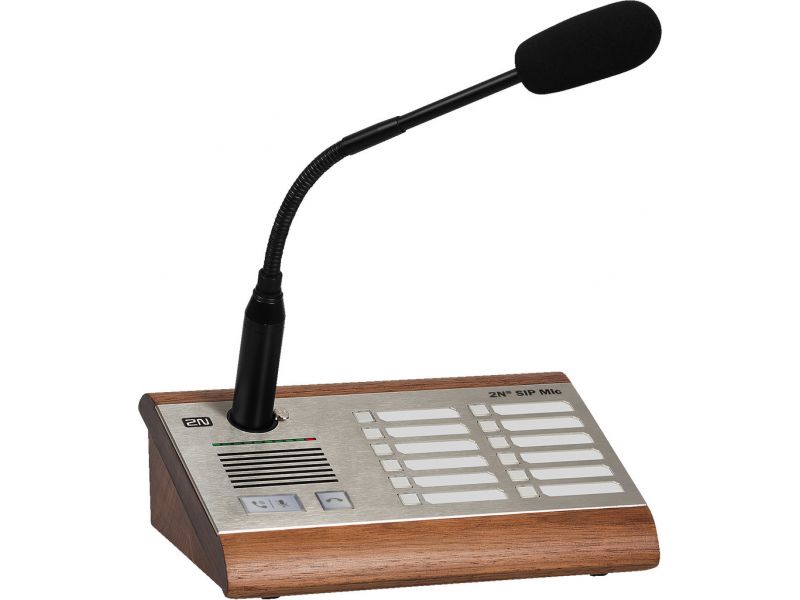

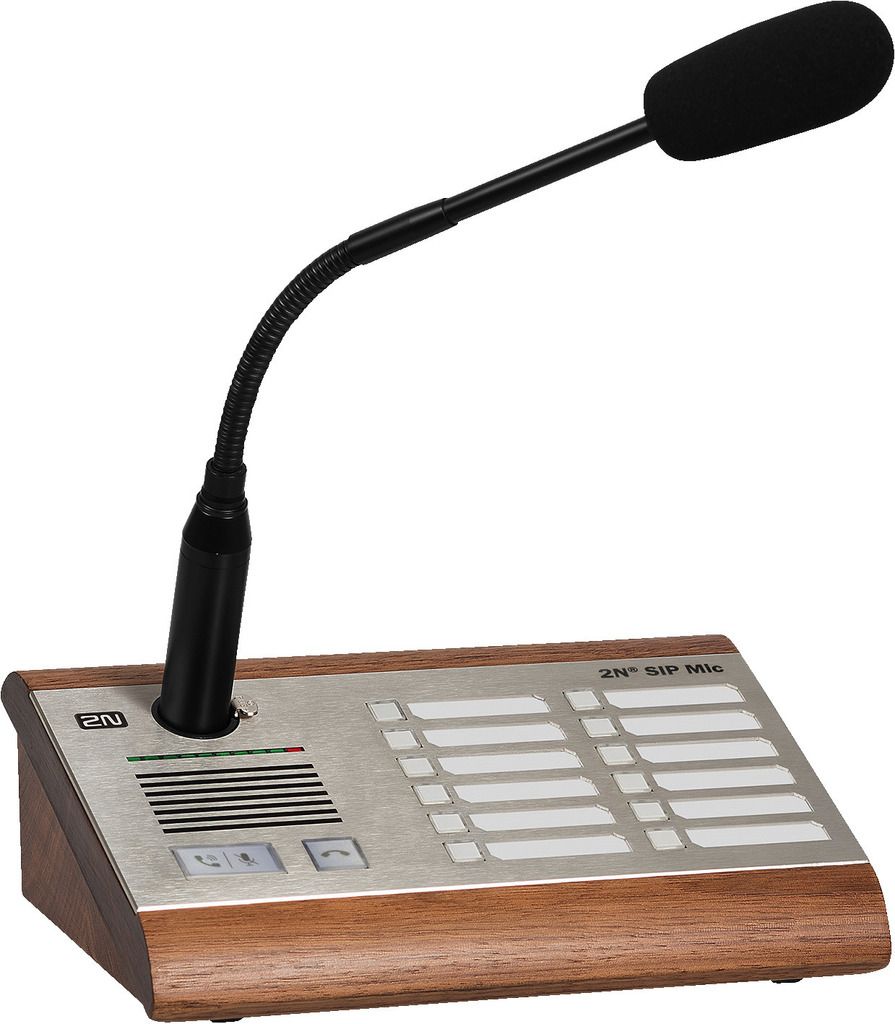

SIP-MIC
SIP Microphone Station from 2N®
With SIP technology and various functions, e.g. transmission into 12 zones, two-way communication thanks to built-in speaker or reproduction of pre-recorded announcements. Each of the stated functions is available without a server and there is no limitation as to the distance.
SIP microphone station
- For transmitting live audio announcements or previously stored messages into different zones
- Connection to the existing LAN/WAN network
- Connection facility for external microphone, CD/MP3 player or headphones

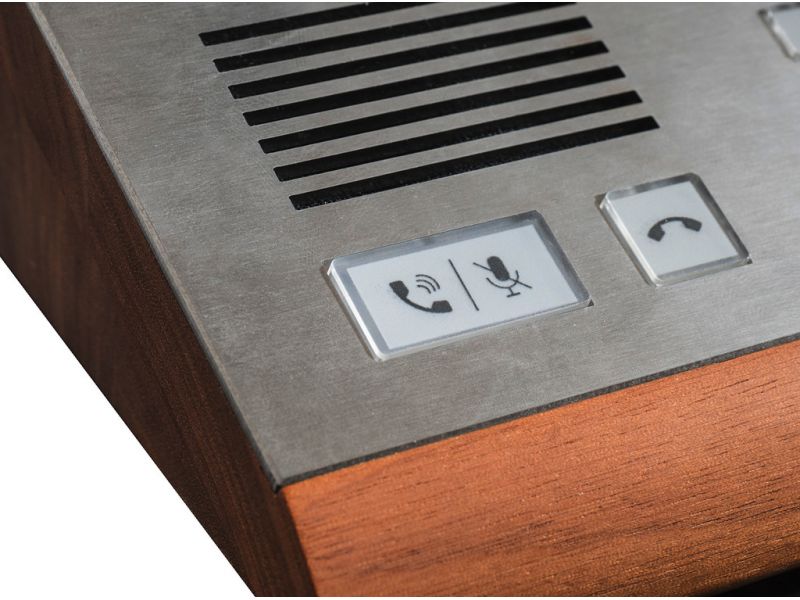

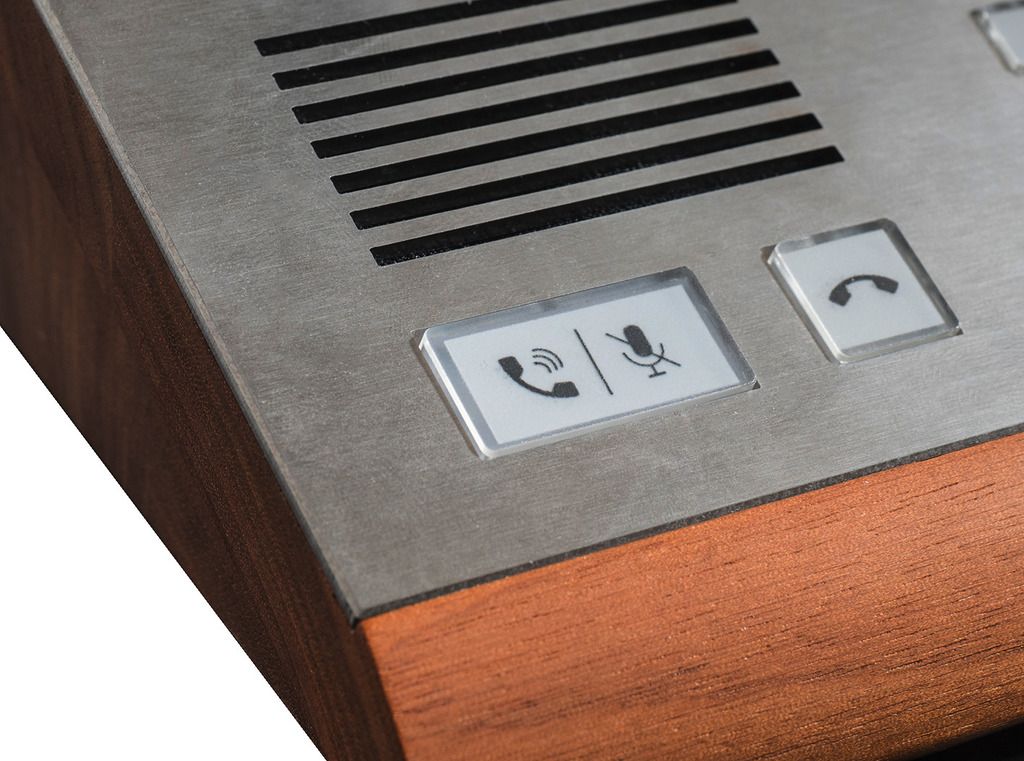

- 14 buttons, 12 of them to be programmed as required
- Supports IP PBX (SIP)

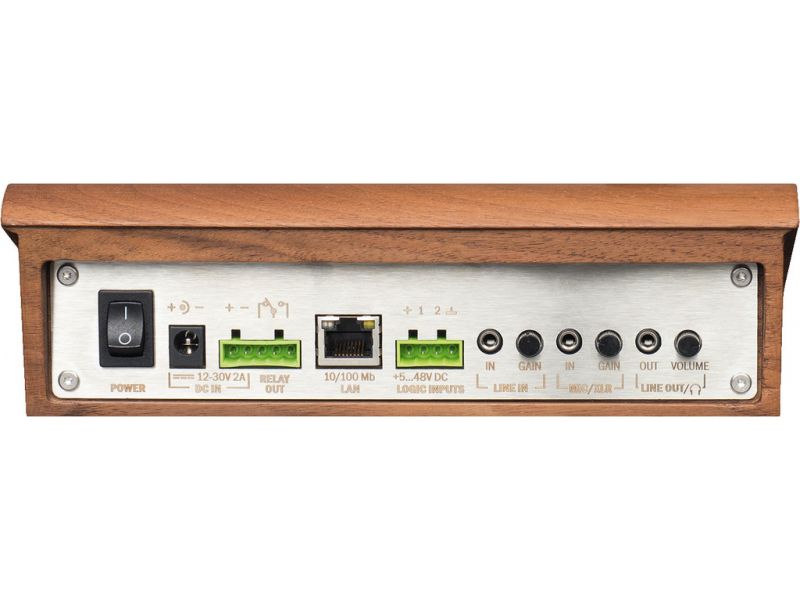

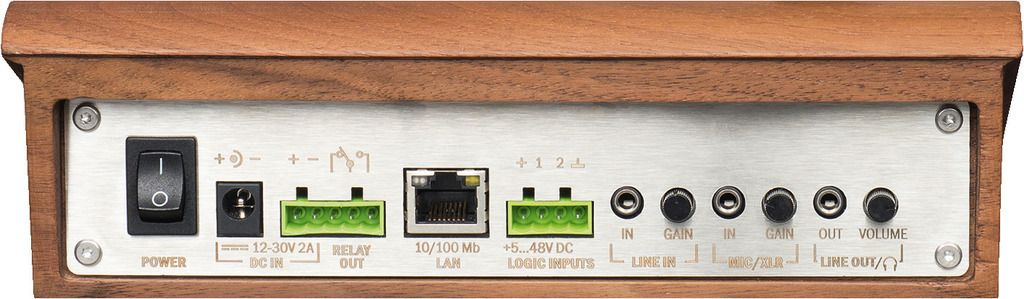

- Ethernet via RJ45, 10/100 Mbps
- 2 speakers (2 x 1 W)
- 2 logical inputs for contact or voltage of 5-48 V
- Relay output NO/NC, max. 48 V/1 A
- Audio output, 3.5 mm jack
- Main microphone input, balanced, XLR, integrated 24 V phantom power
- Microphone input, 3.5 mm jack
- Line input, 3.5 mm jack
- Power supply via PoE (IEEE 802.3af) or external power supply (12-32 V/1 A)
- Matching power supply PSS-1230DC is available at option
Manufacturer information:
Axis Communications AB
Gränden 1
SE-223 69 Lund
Sweden
sales@2n.com
Gränden 1
SE-223 69 Lund
Sweden
sales@2n.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Description | SIP microphone station |
| Nominal value | 2 x 1 W speaker |
| Type | SIP |
| Power supply | PoE or DC 12-32 V/1 A via external power supply |
| Dimensions | 209 x 65 x 143 mm |
| Weight | 1.25 kg |
| Connections | RJ45 (LAN), XLR, bal. (microphone), 3.5 mm jack (microphone), 3.5 mm jack (line in) |
| Other features | SIP |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.17 x 0.16 x 0.32 m |
| Gross weight | 1.54 kg |
| Net weight | 1.255 kg |
