SIP-HORN

Cod EAN: 8595159509181

SIP Horn Speakers from 2N® Suitable for outdoor applications, with high volume level and perfect speech intelligibility. You can also use it as a useful instrument for broadcasting live messages in wide open spaces as well as for actively protecting...

Citeste mai mult

Intreaba despre produs
Cumpara acum

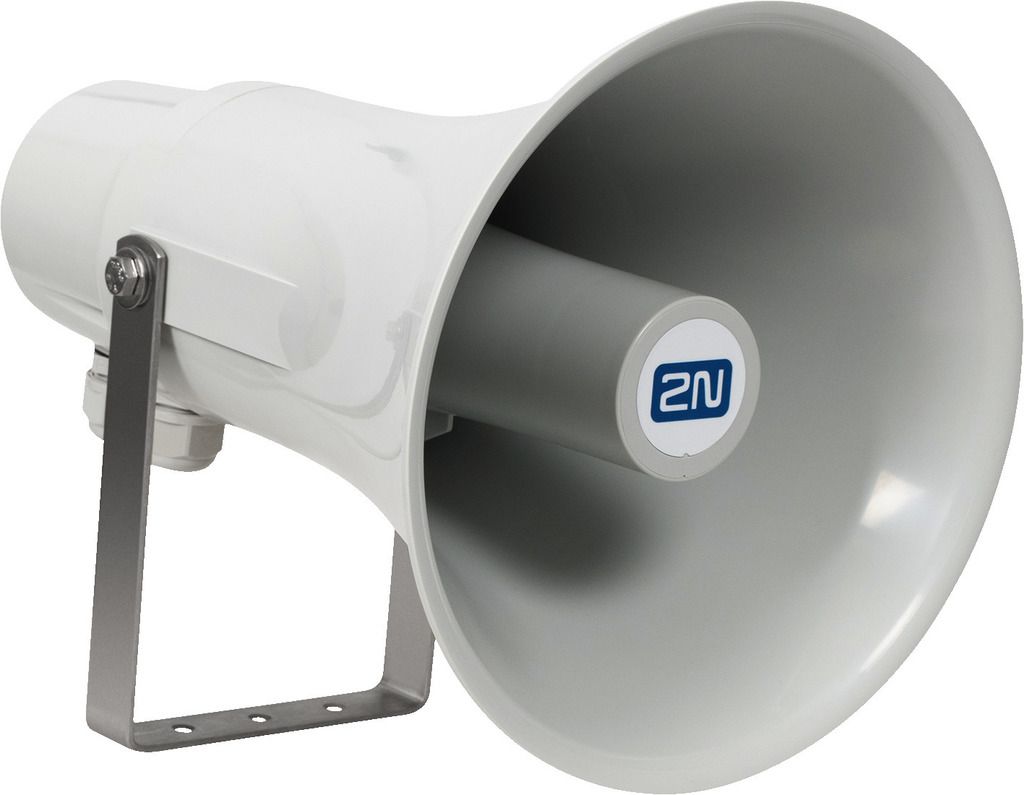

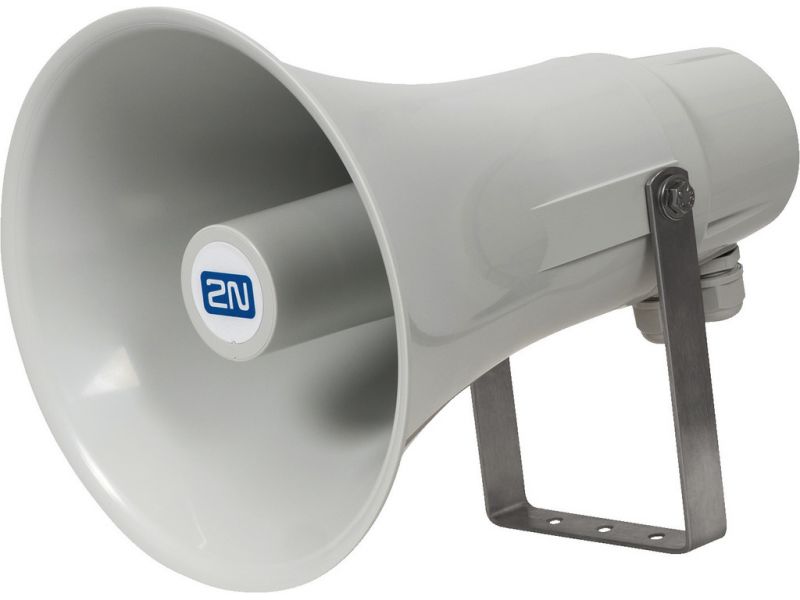

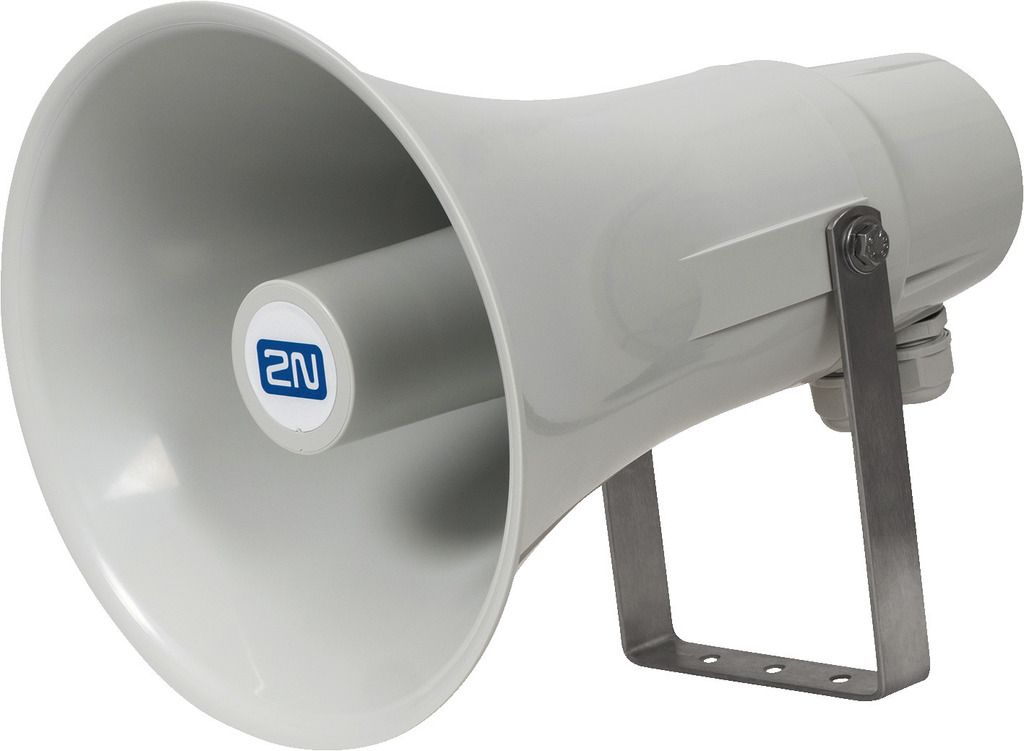

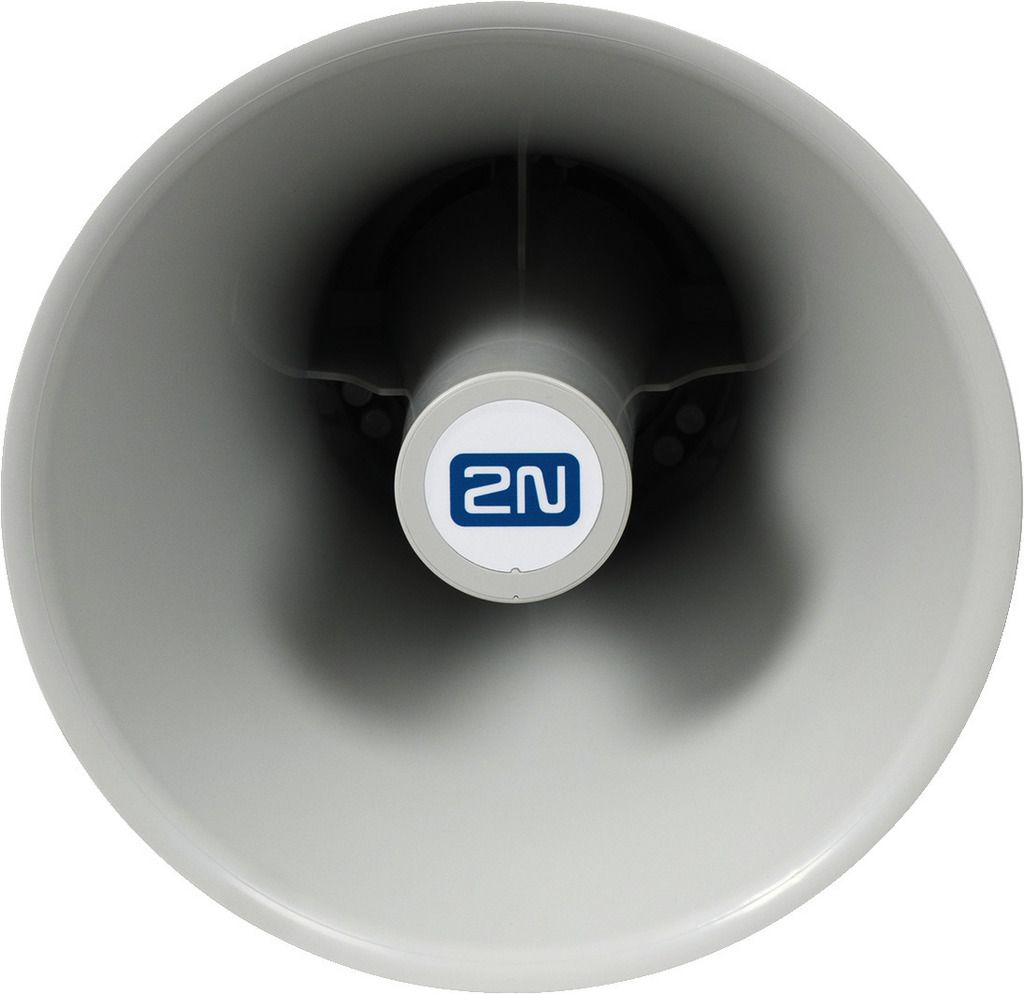

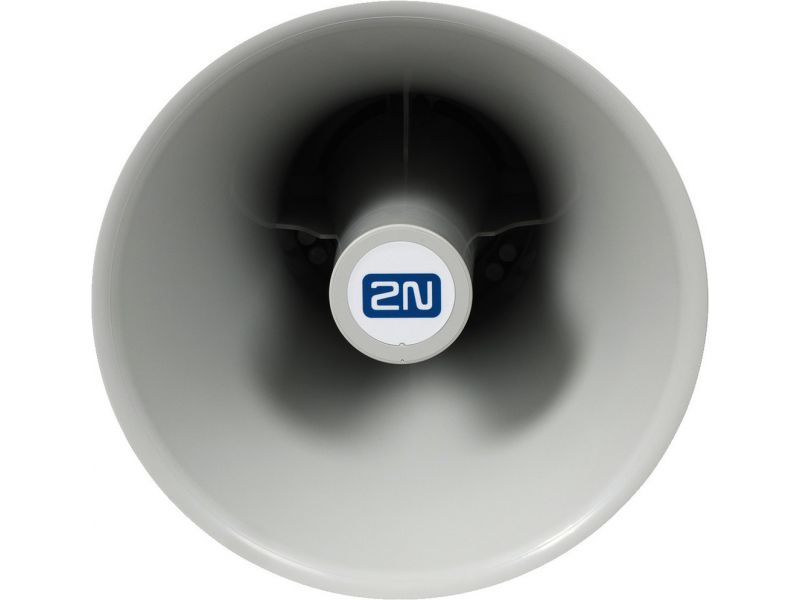

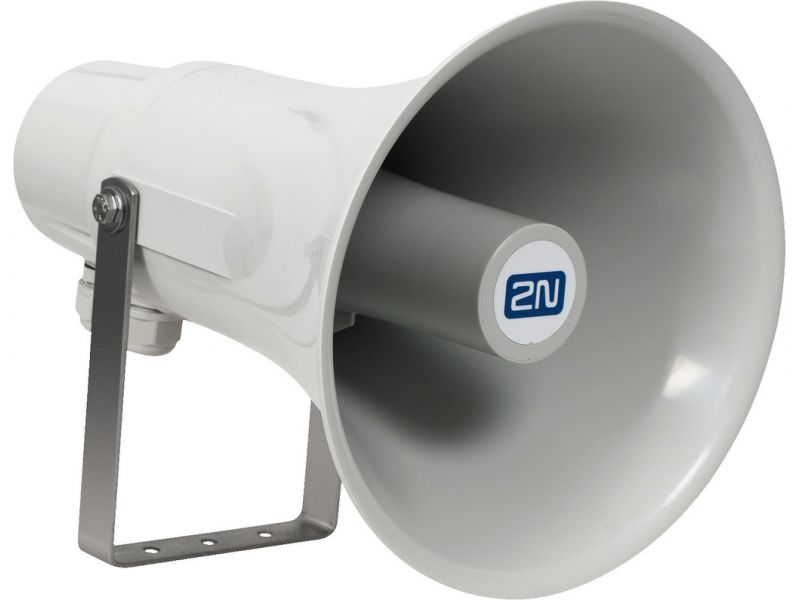

SIP-HORN

SIP Horn Speakers from 2N®
Suitable for outdoor applications, with high volume level and perfect speech intelligibility. You can also use it as a useful instrument for broadcasting live messages in wide open spaces as well as for actively protecting your property. In case an intruder intends to break in, you can react immediately, either with a live message or a preset message to quickly drive away intruders.
Active SIP horn speaker
  • Integrated amplifier
  • Impedance: 8 Ω with an output power of 8 W (with PoE) or 25 W (with power provided via 24 V power supply)
  • Supports IP PBX (SIP)
  • Serverless audio solution
  • Easy installation to an existing PoE switch via network cable
  • LAN connection, Ethernet RJ45, 10/100 Mbps
  • Connection to VMS thanks to ONVIF compatibility
  • Live messages or preset messages via scheduler
  • Audio self-test with fault indication
  • Noise detection with adjustable threshold for triggering an action
  • Pivoting mounting bracket, stainless steel
  • Power is provided via PoE (IEEE 802.3af) or external power supply ( DC 24 V/2 A)
  • Matching power supply is available at option
  • 2N® Network Scanner app for searching of 2N® IP intercom systems and 2N® access units available within the network
Manufacturer information:
Axis Communications AB
Gränden 1
SE-223 69 Lund
Sweden
sales@2n.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range -30 °C to +60 °C).
If the device is to be taken out of operation permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology LAN, SIP
Total output power 25 W
Power rating (RMS) 8 W (PoE) 25 W (24 V)
Impedance 8 Ω
Frequency range 400-7,500 Hz (-10 dB) 275-12,000 Hz (-20 dB)
Number of speakers 1
SPL 110 dB/W/m
Max. rated SPL 124 dB
Radiation angle/beam angle 80°
Radiation angle, horizontal 80°
Radiation angle, vertical 80°
Housing material plastic
Colour grey (RAL 7035)
Mounting device pivoting mounting bracket
Protection class IP67
Admiss. ambient temp. -30 °C to +60 °C
Power supply PoE or  DC 24 V/2 A
Dimensions Ø 232.7 mm x 309.6 mm
Width Ø 232.7 mm
Height Ø 232.7 mm
Depth 309.6 mm
Weight 1.75 kg
Inputs RJ45
Other features LAN, SIP
Packaging dimensions (W x H x L) 0.25 x 0.37 x 0.24 m
Gross weight 2.2 kg
Net weight 1.75 kg

Fisiere de descarcat

Fisa produsului SIP-HORN konformitaetserklaerung-oem Manual de utilizare
