SM-2
Cod EAN: 4007754174045
Sound level meter, (class 2), one-hand operation. Electret microphone cartridge Functions max hold and data hold A-weighting and C-weighting, slow and fast Additional output for DC/˜ V via 3.5 mm jack Supplied with practical nylon bag Manufactu...

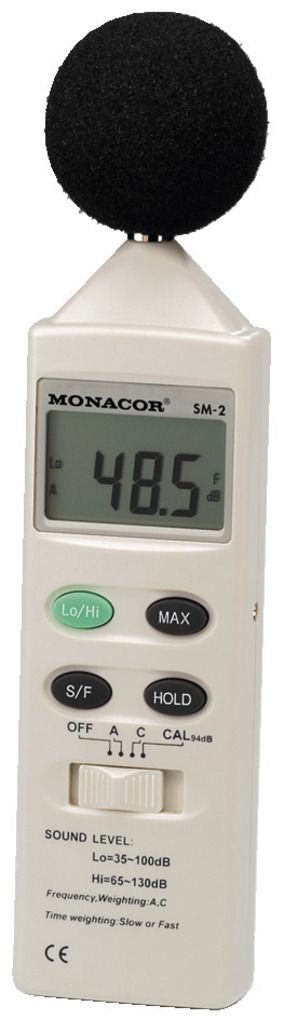

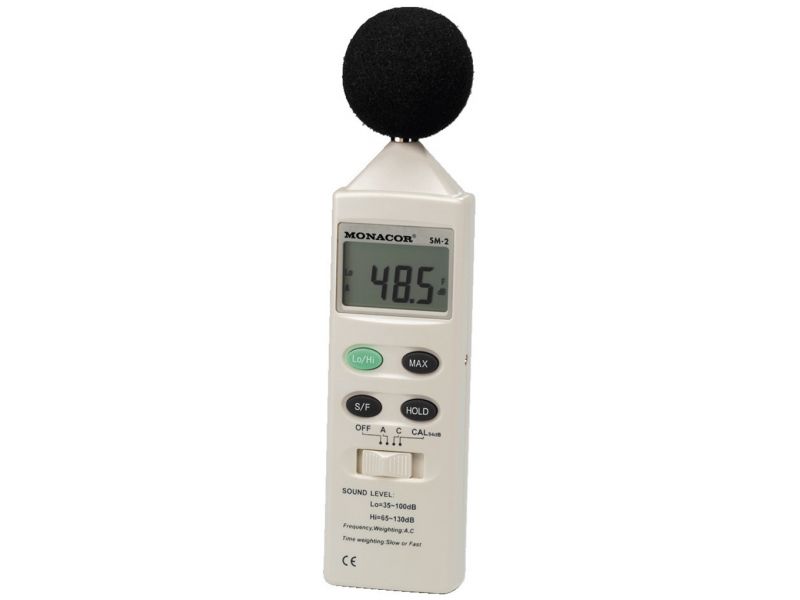

SM-2
Sound level meter,
(class 2), one-hand operation.
- Electret microphone cartridge
- Functions max hold and data hold
- A-weighting and C-weighting, slow and fast
- Additional output for DC/˜ V via 3.5 mm jack
- Supplied with practical nylon bag
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Display | 3½ digits, LCD, 17 mm |
| Frequency range | 31.5-8,000 Hz |
| Measuring range, low | 35-100 dB |
| Measuring range, high | 65-130 dB |
| Resolution | 0.1 dB |
| Accuracy | ±1.5 dB (94 dB/1 kHz) |
| Output V˜ | low: 38 mV/dB, 100 Ωhigh: 8.3 mV/dB, 100 Ω |
| Output V DC | 10 mV/dB, 100 Ω |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | 9 V battery (not supplied) |
| Dimensions | 63 x 253 x 30 mm |
| Weight | 250 g |
