SOUND-100SUB

Cod EAN: 4007754212303

With the 2-way Active Systems and the Subwoofers of the SOUND Series, efficient speakers with a powerful sound are available in different sizes and with different features. They are all integrated into high-quality bass-reflex MDF cabinets and featur...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SOUND-100SUB

With the 2-way Active Systems and the Subwoofers of the SOUND Series,
efficient speakers with a powerful sound are available in different sizes and with different features. They are all integrated into high-quality bass-reflex MDF cabinets and feature speakers with magnetic shielding. The speaker systems are ideally suited as active hi-fi speaker systems, high-end PC speakers and for small PA applications requiring a powerful sound, e.g. media presentations.

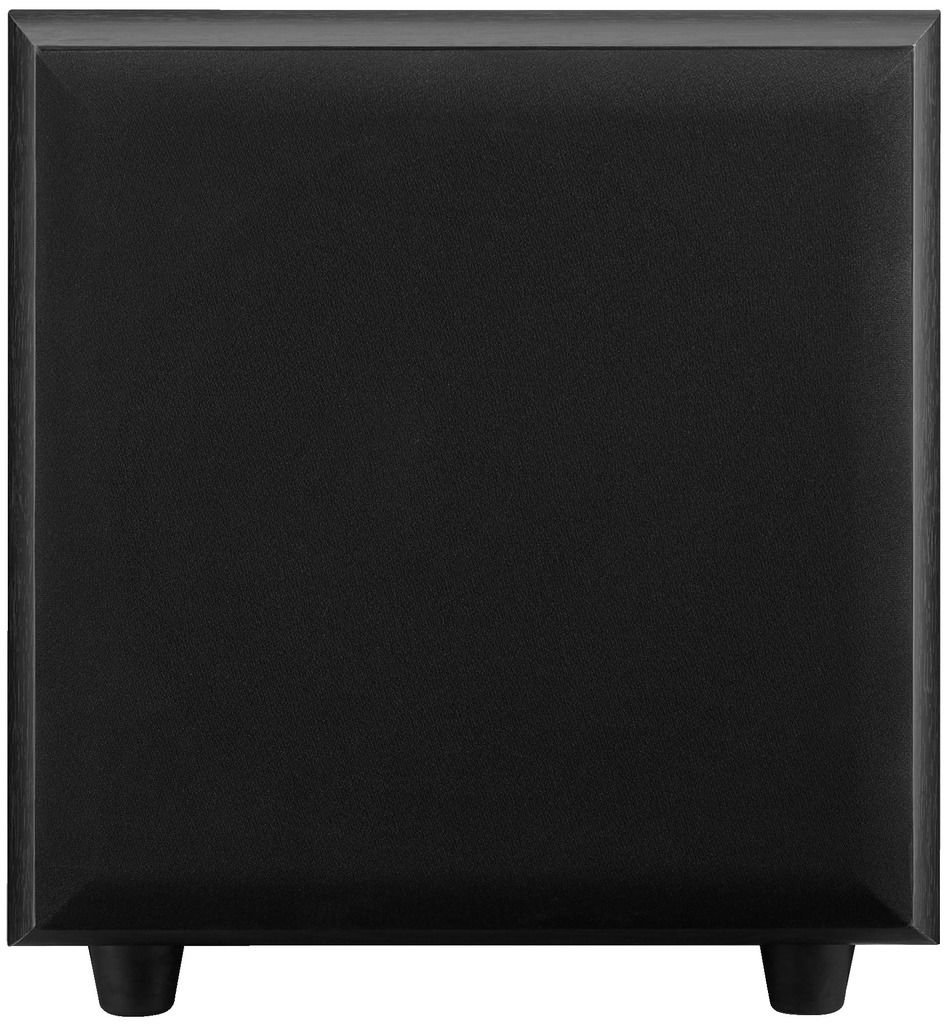

Active subwoofer system, 120 W
  • Active subwoofer for adding to the active SOUND speaker systems, but also to any other compact speaker for hi-fi or home cinema applications and home recordings

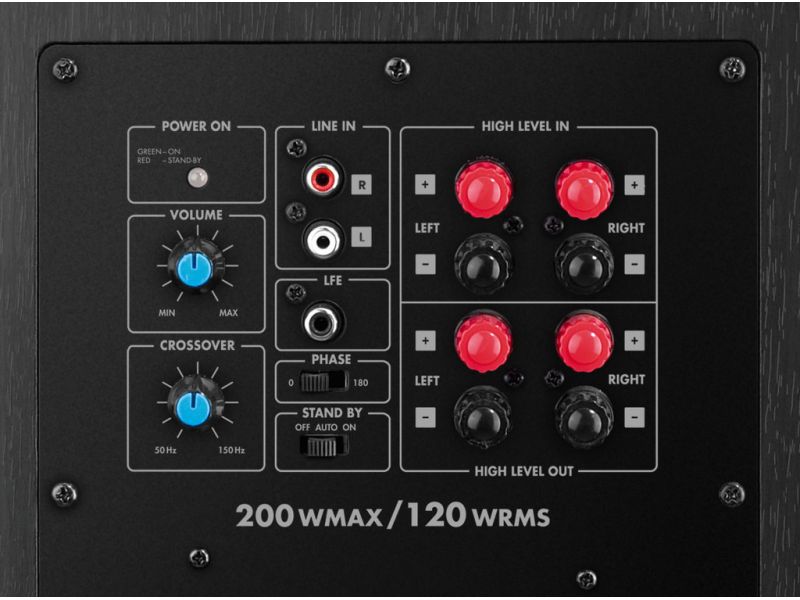

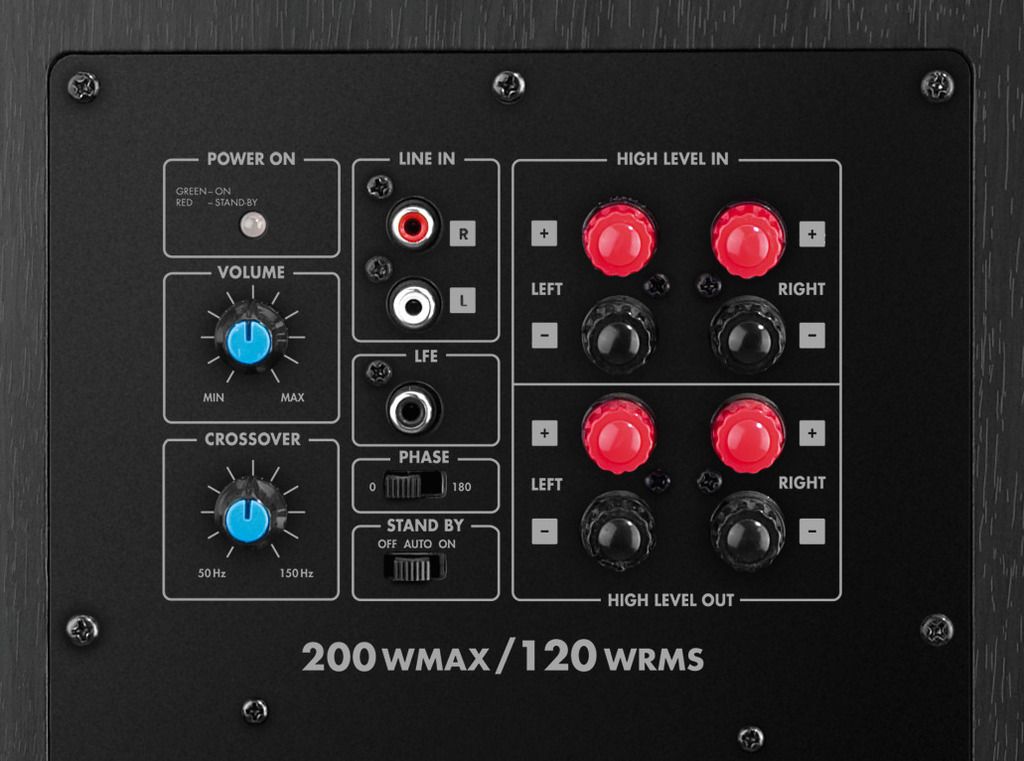

  • Amplifier features variable input sensitivity, a phase switch, an automatic switch-on system which can additionally be activated as well as an adjustable crossover frequency (50-150 Hz)

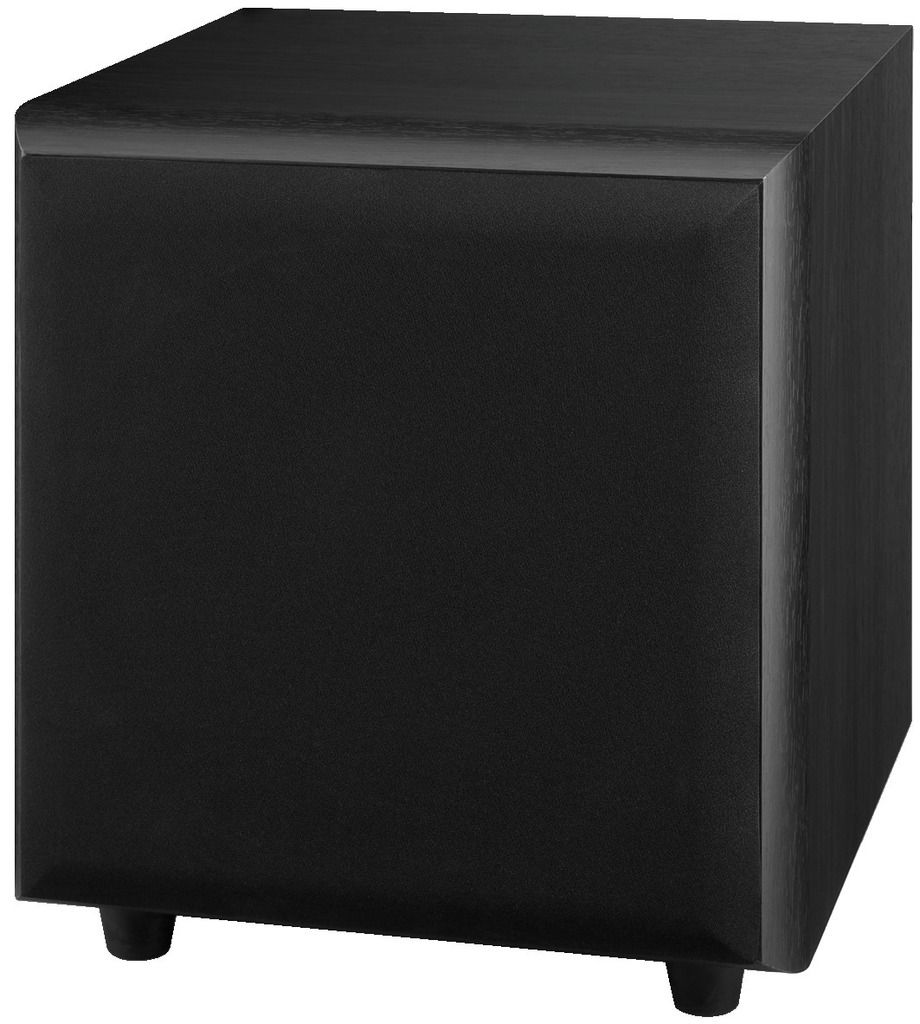

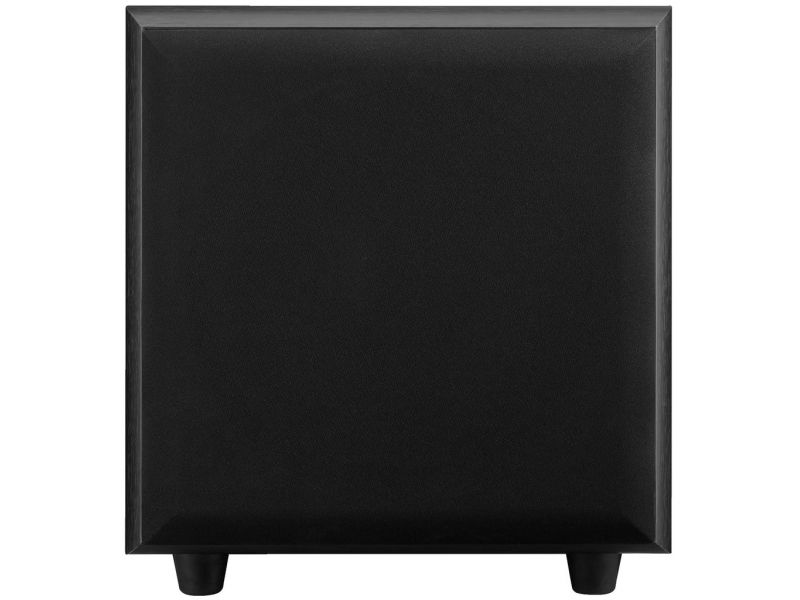

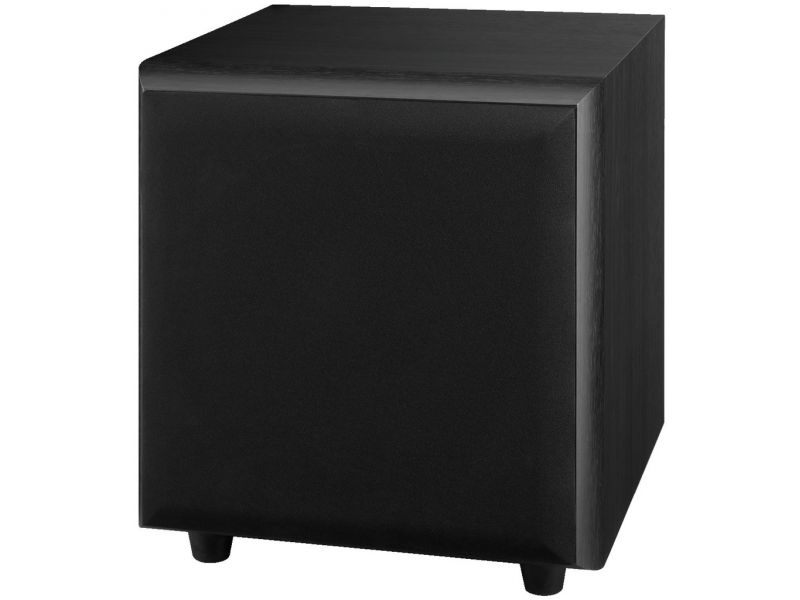

  • High-quality bass-reflex MDF cabinet (black wood veneer look)

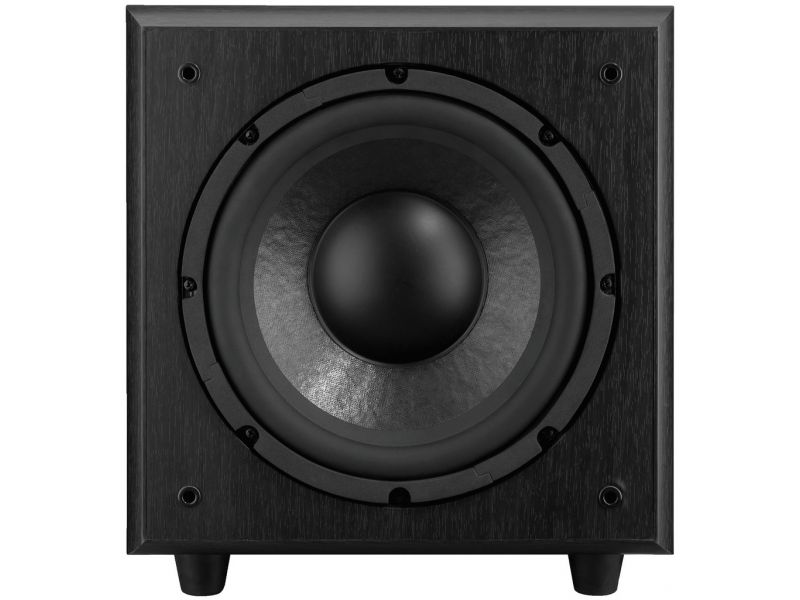

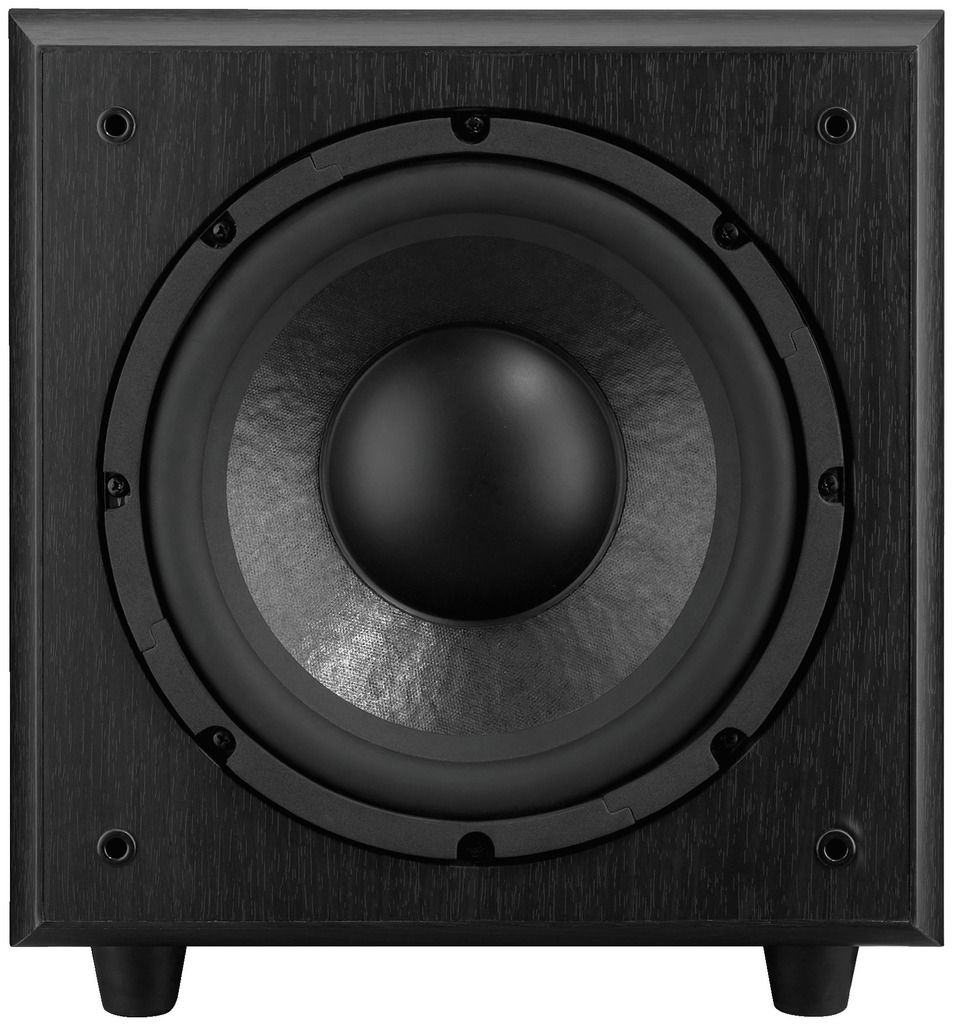

  • 25 cm (10") bass speaker
  • Volume control for the subwoofer
  • Inputs via 1 x RCA L/R, RCA LFE or screw terminals for high-level L/R
  • Additional outputs for mid-high range speakers, thus well-suited for connection to already existing speaker cables
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology cable
Total output power 200 W
Power rating (RMS) 120 W

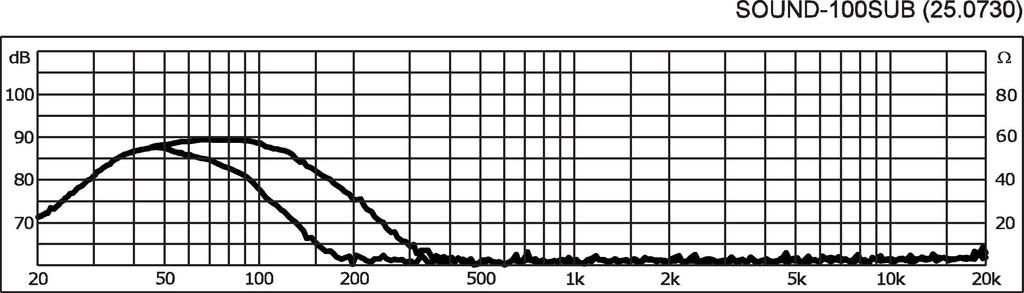

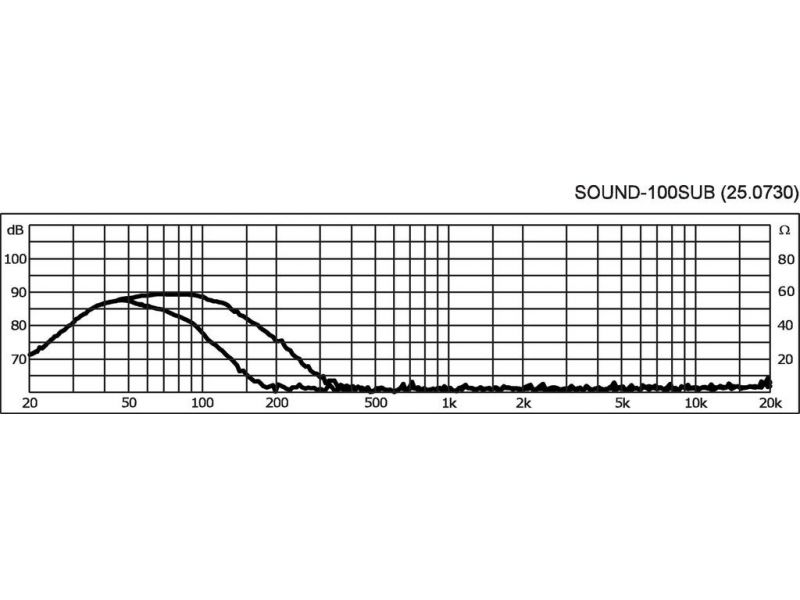

Frequency range 35-100 Hz
Input signal 150 mV/24 kΩ (RCA L/R)55 mV/16 kΩ (RCA mono)2.3 V/440 Ω (high IN)
Bass speaker 25 cm (10") bass speaker
Number of speakers 1
Speaker size 25 cm (10")
SPL 88 dB/W/m
Max. rated SPL 108 dB
Radiation angle/beam angle omnidirectional
Housing material wood
Colour black
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/240 VA
Dimensions 330 x 360 x 360 mm
Width 330 mm
Height 360 mm
Depth 360 mm
Weight 13 kg
Inputs 1 x RCA (L/R), unbal., IN1 x RCA (mono), unbal., IN1 x screw terminal (stereo), high-level IN
Outputs 1 x screw terminals (stereo), high-level out
Packaging dimensions (W x H x L) 0.46 x 0.46 x 0.46 m
Gross weight 15.68 kg
Net weight 13.05 kg

Fisiere de descarcat

Fisa produsului SOUND-100SUB konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
