SP-10A/302PA
Cod EAN: 4007754191042
PA bass-midrange speaker, 300 W, 8 Ω Of very high power capability 25 cm (10") professional speaker of long excursion Diecast basket Cone with water-repellent coating Very neat workmanship with a front-facing basket Wide frequency response of low dis...

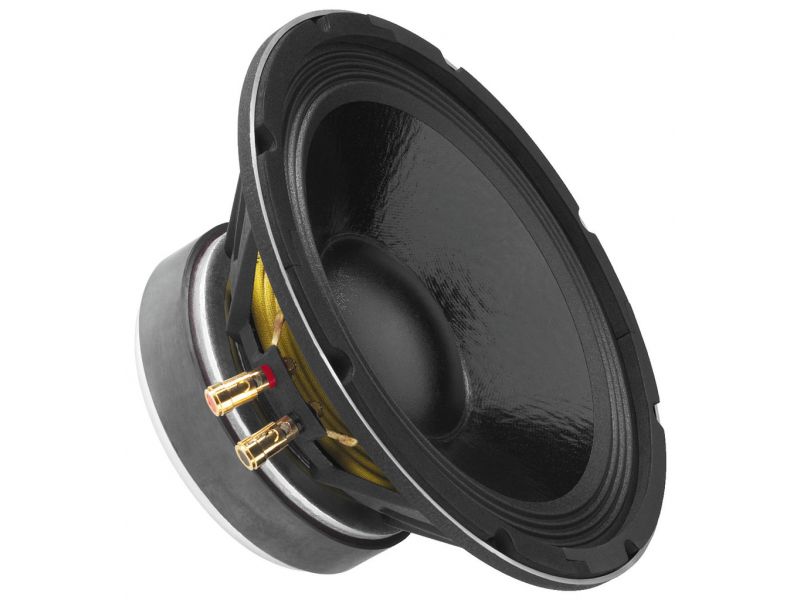

SP-10A/302PA
PA bass-midrange speaker, 300 W, 8 Ω
- Of very high power capability
- 25 cm (10") professional speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with a front-facing basket
- Wide frequency response of low distortion
- High efficiency
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
- For compact bass-reflex cabinets from 20 litres on already
- For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 01/2017
“Bass driver providing a top-class sound for compact bass-reflex cabinets of about 40 litres, suitable for 2-way systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | f3-3,500 Hz |
| Resonant frequency (fs) | 55 Hz |
| Power rating (RMS) | 300 W |
| Peak music power output (MAX) | 600 W |
| SPL | 98 dB/W/m |
| Suspension compl. (Cms) | 0.24 mm/N |
| Moving mass (Mms) | 35 g |
| Mech. Q factor (Qms) | 7.44 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.3 |
| Equivalent volume (Vas) | 40 l |
| DC resistance (Re) | 6.4 Ω |
| Force factor (BxL) | 15.82 Tm |
| Voice coil induct. (Le) | 0.65 mH |
| Voice coil diameter | 66 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | 4 mm |
| Eff. cone area (Sd) | 346 cm2 |
| Magnet weight | 2 kg |
| Magnet diameter | Ø 154 mm |
| Mounting cutout | Ø 234 mm |
| Mounting depth | 112 mm |
| Dimensions | Ø 260 mm x 124 mm |
| Outside diameter | Ø 260 mm |
| Width | Ø 260 mm |
| Height | Ø 260 mm |
| Depth | 122 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.98 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.285 x 0.16 x 0.285 m |
| Gross weight | 5.42 kg |
| Net weight | 4.98 kg |
