SP-12A/302PA
Cod EAN: 4007754191059
PA bass-midrange speaker, 300 W, 8 Ω Of very high power capability 30 cm (12") professional speaker of long excursion Diecast basket Cone with water-repellent coating Very neat workmanship with front-facing basket Wide frequency response of low disto...

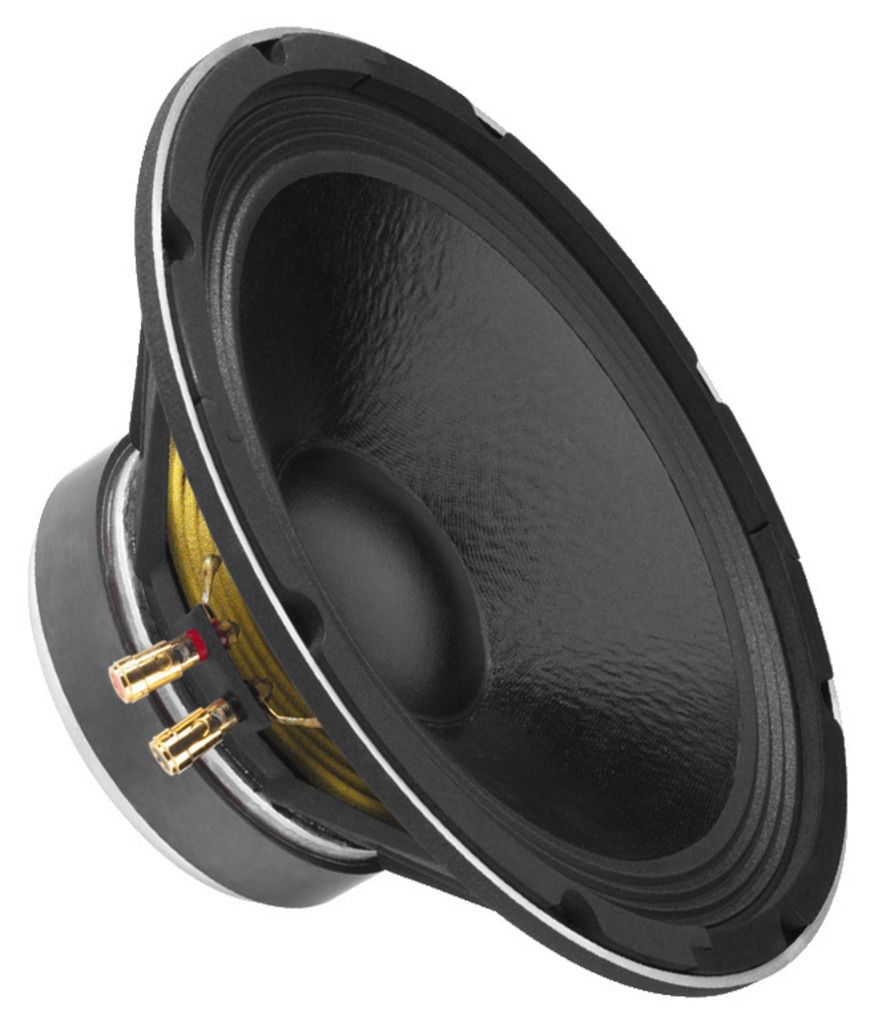

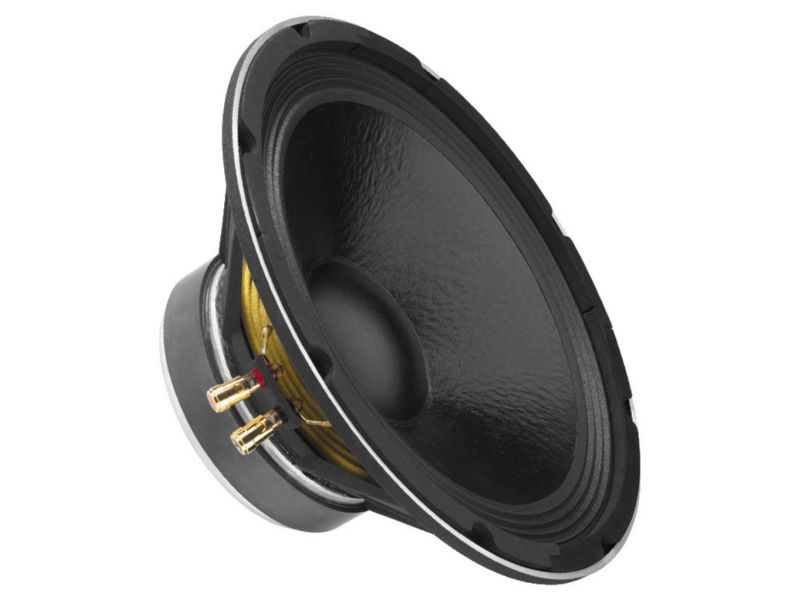

SP-12A/302PA
PA bass-midrange speaker, 300 W, 8 Ω
- Of very high power capability
- 30 cm (12") professional speaker of long excursion
- Diecast basket
- Cone with water-repellent coating
- Very neat workmanship with front-facing basket
- Wide frequency response of low distortion
- High efficiency
- Excellent bass reproduction
- Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
- For bass-reflex cabinets from 30 litres on already
- For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 05/2013
“With the SP-12A/302PA, IMG Stage Line offers a bass speaker of high power capability for 3-way systems which features an impressively deep bass, a superior level stability and an excellent sound quality.”
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

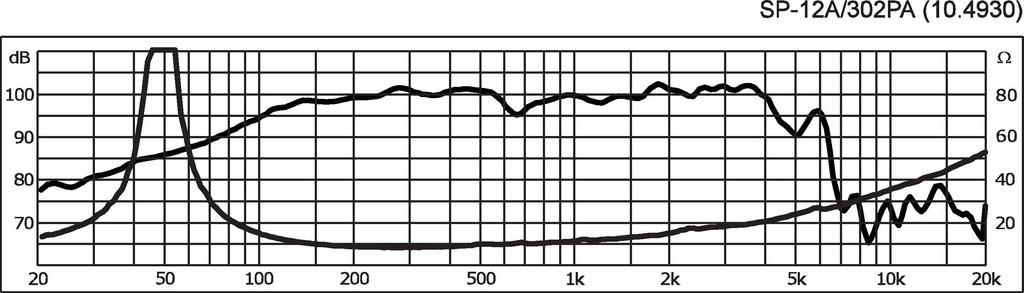

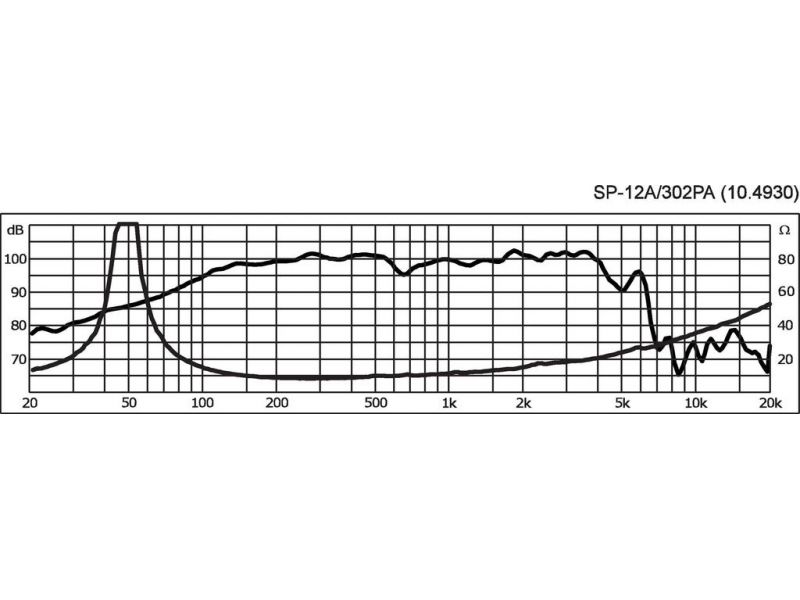

| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 50 Hz |
| Power rating (RMS) | 300 W |
| Peak music power output (MAX) | 600 W |
| SPL | 99 dB/W/m |
| Suspension compl. (Cms) | 0.19 mm/N |
| Moving mass (Mms) | 50 g |
| Mech. Q factor (Qms) | 7.87 |
| Electr. Q factor (Qes) | 0.35 |
| Total Q factor (Qts) | 0.34 |
| Equivalent volume (Vas) | 77 l |
| DC resistance (Re) | 6.4 Ω |
| Force factor (BxL) | 16.98 Tm |
| Voice coil induct. (Le) | 0.8 mH |
| Voice coil diameter | Ø 66 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 5 mm |
| Eff. cone area (Sd) | 530 cm2 |
| Magnet weight | 2 kg |
| Magnet diameter | Ø 154 mm |

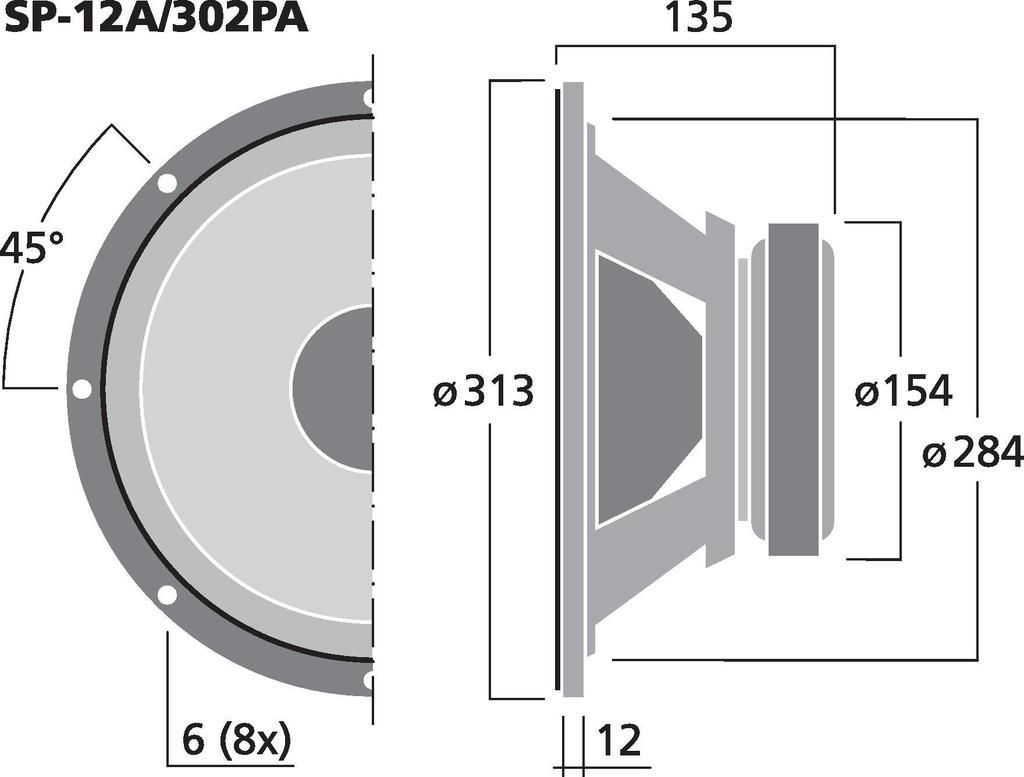

| Mounting cutout | Ø 284 mm |
| Mounting depth | 123 mm |
| Dimensions | Ø 313 mm x 135 mm |
| Outside diameter | Ø 313 mm |
| Width | Ø 313 mm |
| Height | Ø 313 mm |
| Depth | 135 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 5.1 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.345 x 0.165 x 0.345 m |
| Gross weight | 5.8 kg |
| Net weight | 5.1 kg |
