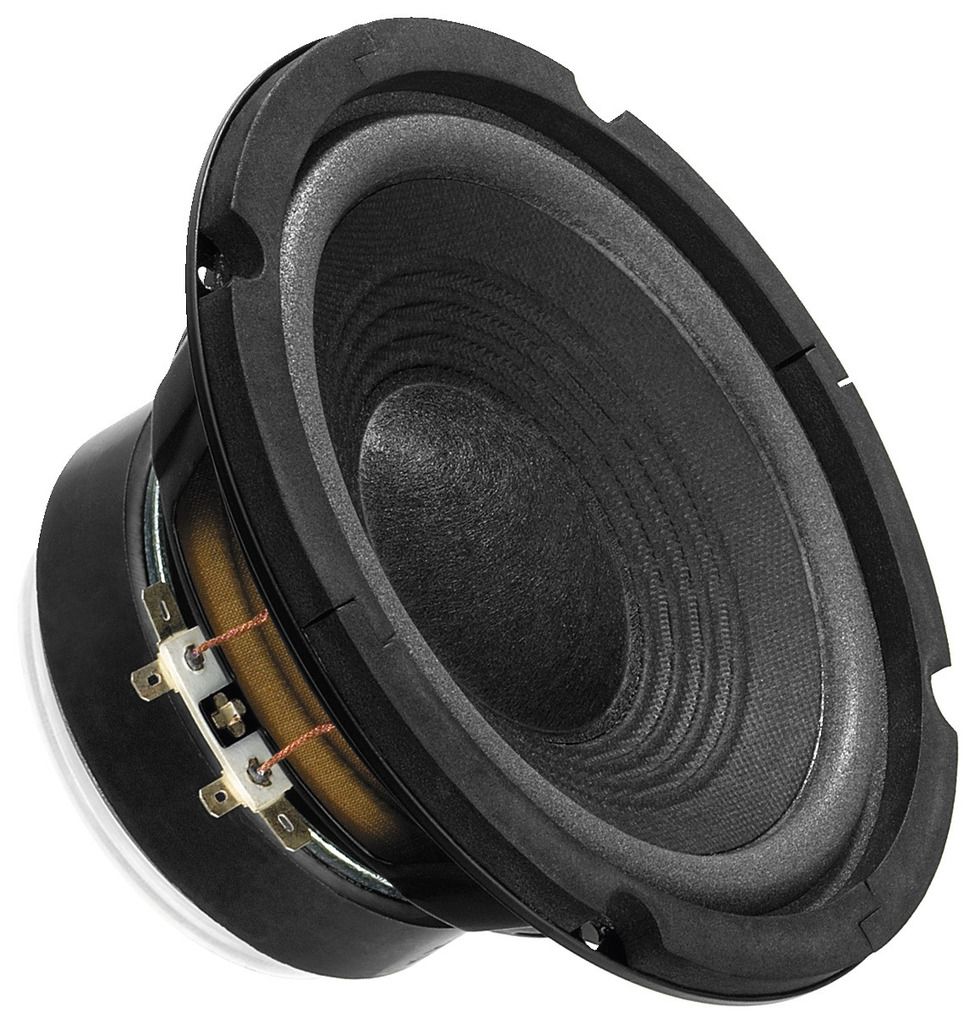

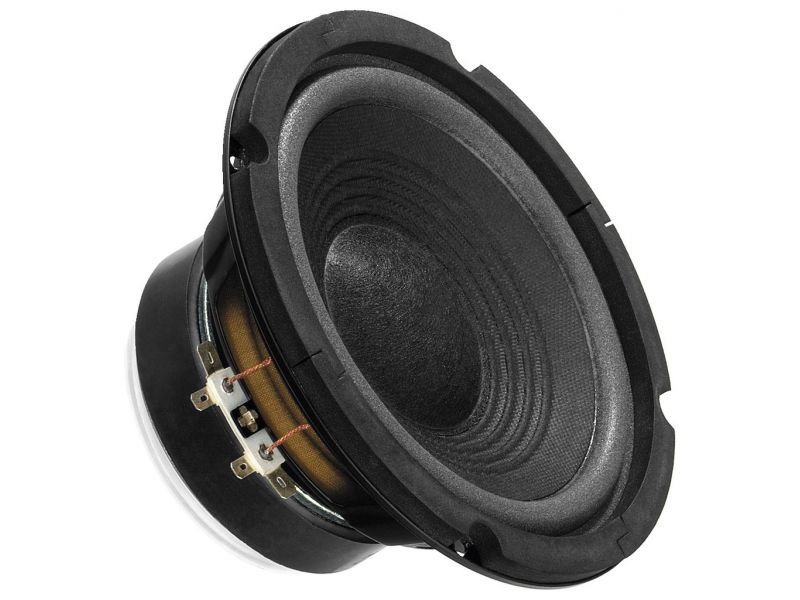

SP-167E

Cod EAN: 4007754153507

Hi-fi bass-midrange speaker, 35 W, 4 Ω Great all-round speaker Foam surround Replacement speaker for closed speaker systems and bass-reflex speaker systems

Intreaba despre produs
Cumpara acum


SP-167E

Hi-fi bass-midrange speaker, 35 W, 4 Ω
  • Great all-round speaker
  • Foam surround
  • Replacement speaker for closed speaker systems and bass-reflex speaker systems

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable
Frequency range f3-6,000 Hz
Resonant frequency (fs) 62 Hz
Power rating (RMS) 35 W
Peak music power output (MAX) 70 W
SPL 92 dB/W/m
Suspension compl. (Cms) 0.7 mm/N
Moving mass (Mms) 9.3 g
Mech. Q factor (Qms) 2.78
Electr. Q factor (Qes) 0.48
Total Q factor (Qts) 0.41
Equivalent volume (Vas) 17.9 l
DC resistance (Re) 3.9 Ω
Force factor (BxL) 5.43 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2.5 mm
Eff. cone area (Sd) 135 cm2
Magnet weight 570 g
Magnet diameter Ø 100 mm

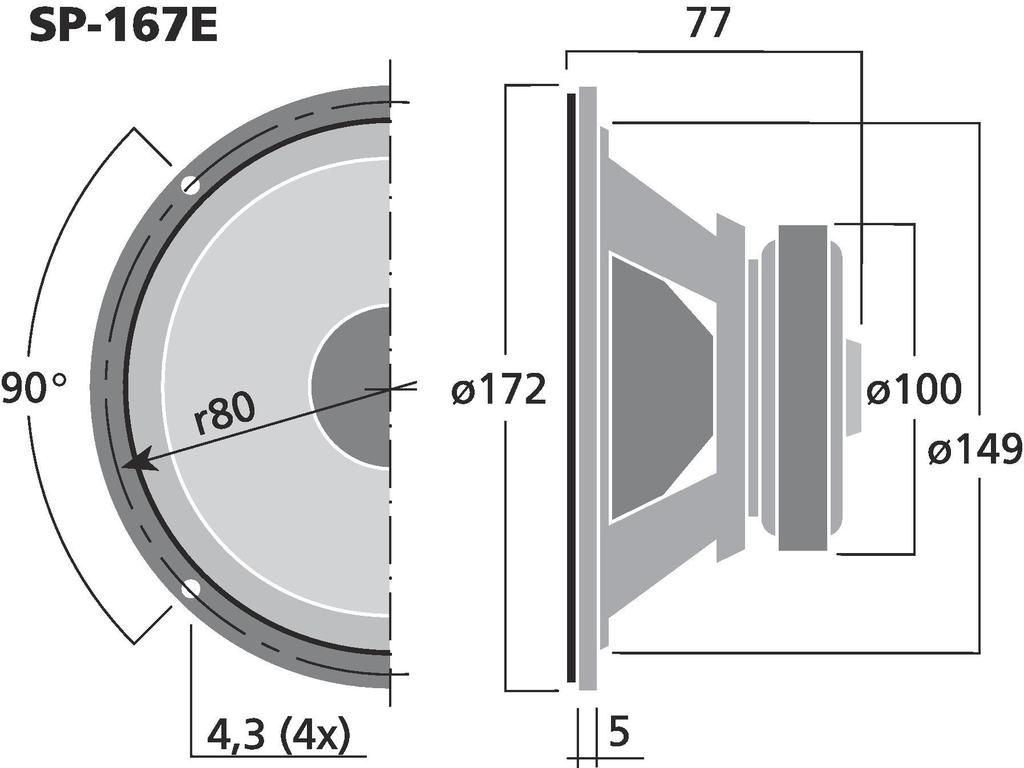

Mounting cutout Ø 149 mm
Mounting depth 72 mm
Mounting hole diameter Ø 160 mm
Dimensions Ø 172 mm x 77 mm
Outside diameter Ø 172 mm
Width Ø 172 mm
Height Ø 172 mm
Depth 77 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.23 kg
Packing unit 1
Type of speaker 6.5"
Packaging dimensions (W x H x L) 0.185 x 0.09 x 0.185 m
Gross weight 1.33 kg
Net weight 1.23 kg

Fisiere de descarcat

Fisa produsului SP-167E konformitaetserklaerung-ce konformitaetserklaerung-ukca
