SP-202PA

Cod EAN: 4007754134889

Universal bass-midrange speaker, 50 W, 8 Ω For bass-midrange applications, also in power speaker systems.

Intreaba despre produs
Cumpara acum


SP-202PA

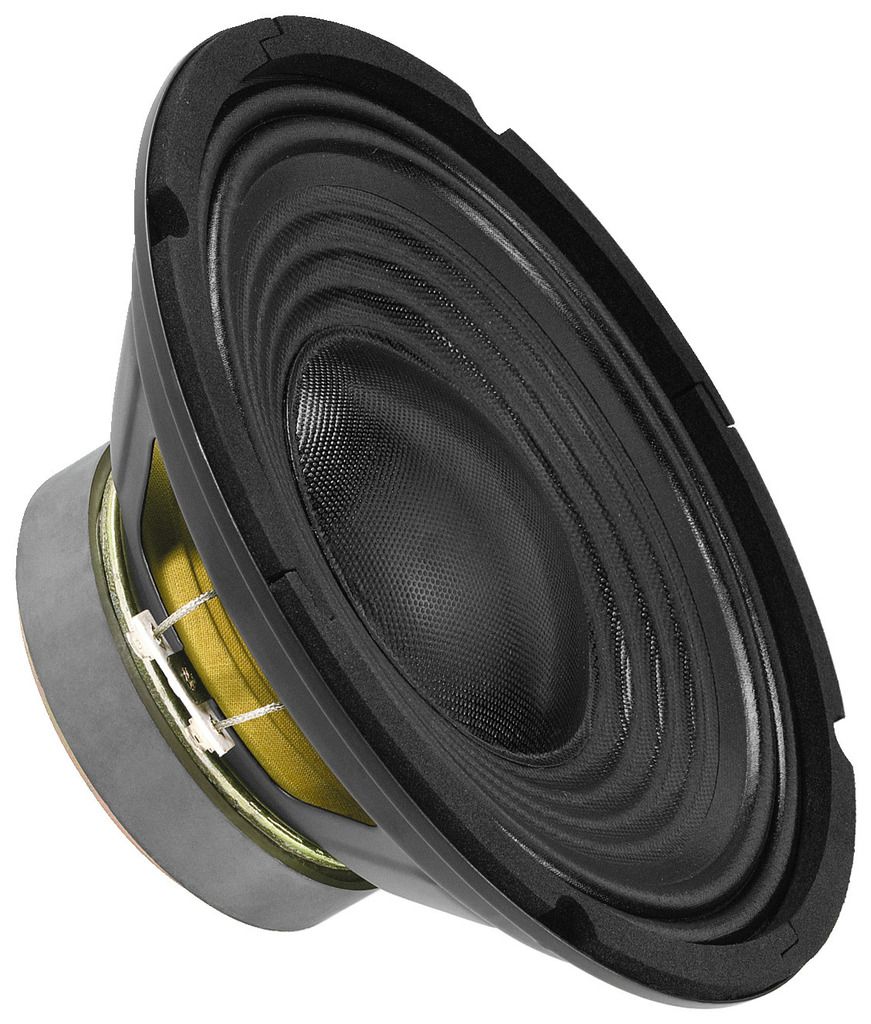

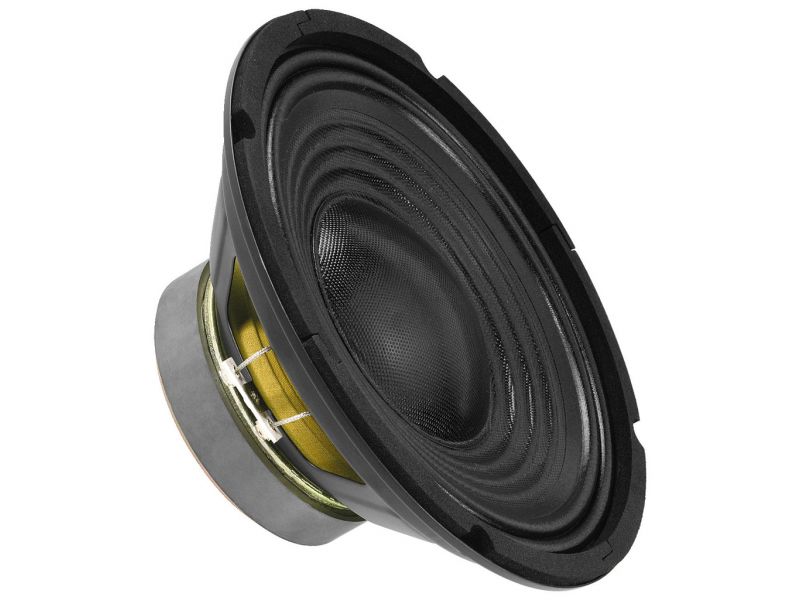

Universal bass-midrange speaker, 50 W, 8 Ω
For bass-midrange applications, also in power speaker systems.

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

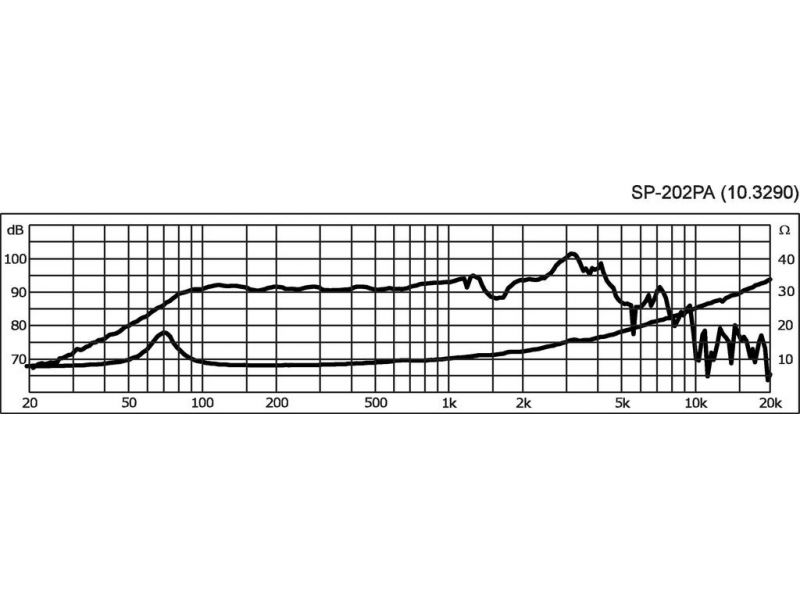

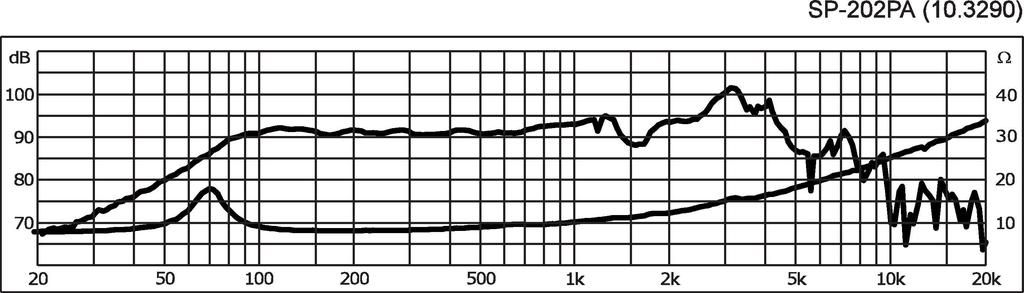

Frequency range f3-4,500 Hz
Resonant frequency (fs) 68 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 91 dB/W/m
Suspension compl. (Cms) 0.2 mm/N
Moving mass (Mms) 18 g
Mech. Q factor (Qms) 2.33
Electr. Q factor (Qes) 2.25
Total Q factor (Qts) 1.1
Equivalent volume (Vas) 12 l
DC resistance (Re) 7.4 Ω
Force factor (BxL) 5.60 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 216 cm2
Magnet weight 570 g
Magnet diameter Ø 100 mm

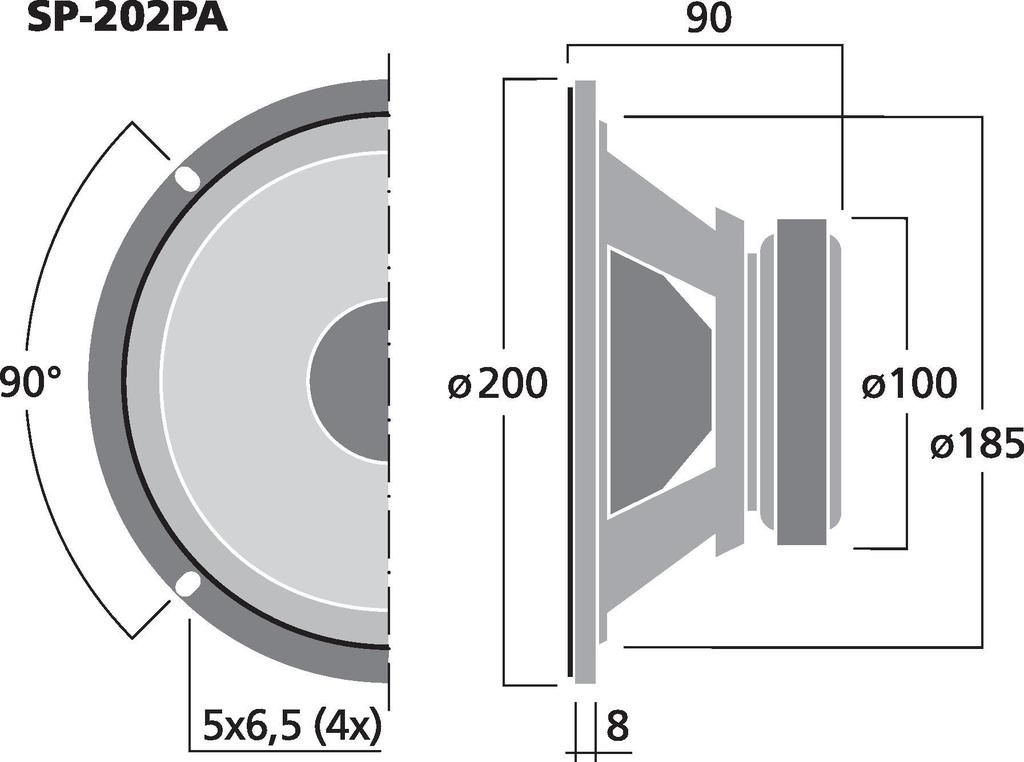

Mounting cutout Ø 185 mm
Mounting depth 82 mm
Dimensions Ø 200 mm x 90 mm
Outside diameter Ø 200 mm
Width Ø 200 mm
Height Ø 200 mm
Depth 90 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.115 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.21 x 0.095 x 0.21 m
Gross weight 1.245 kg
Net weight 1.115 kg
