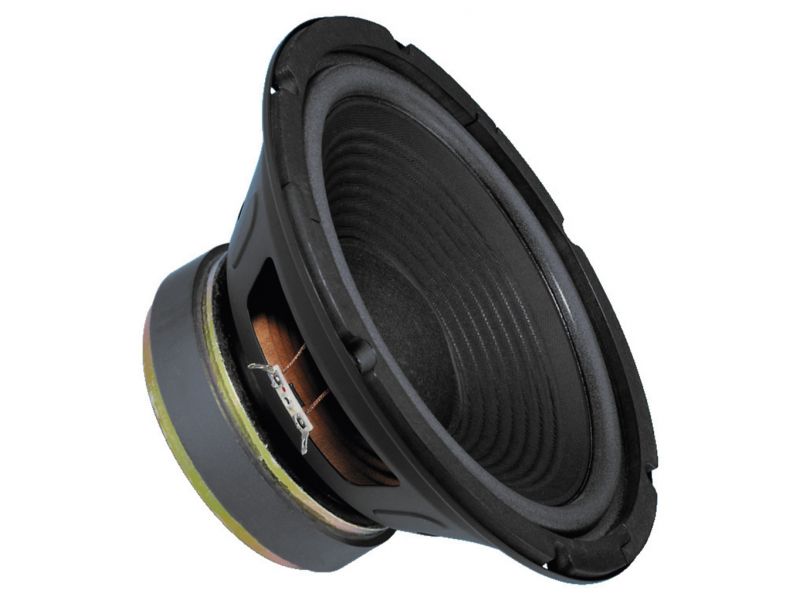

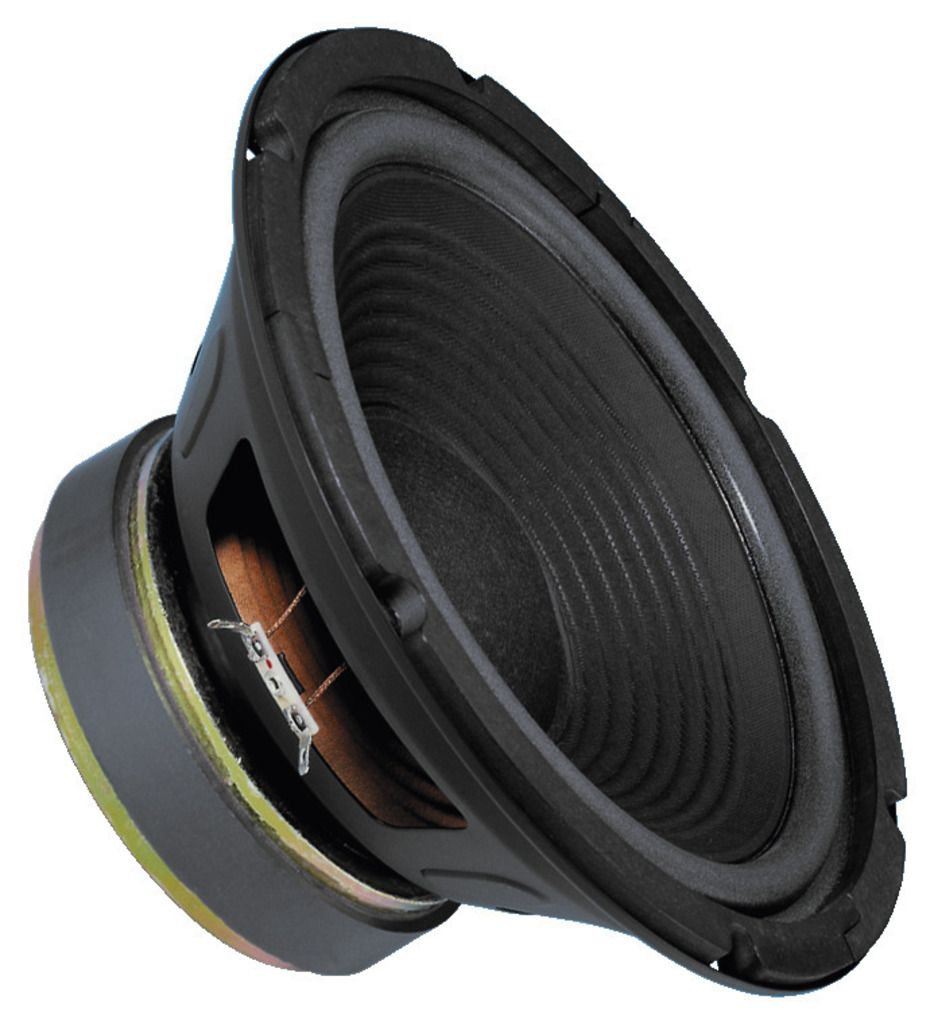

SP-250P

Cod EAN: 4007754024494

Bass speaker, 100 W, 8 Ω With drilled pole core Great linear excursion for powerful bass reproductions Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com

Intreaba despre produs
Cumpara acum


SP-250P

Bass speaker, 100 W, 8 Ω
  • With drilled pole core
  • Great linear excursion for powerful bass reproductions
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-4,000 Hz
Resonant frequency (fs) 33 Hz
Power rating (RMS) 100 W
Peak music power output (MAX) 200 W
SPL 94 dB/W/m
Suspension compl. (Cms) 0.69 mm/N
Moving mass (Mms) 33 g
Mech. Q factor (Qms) 2.33
Electr. Q factor (Qes) 0.38
Total Q factor (Qts) 0.33
Equivalent volume (Vas) 115 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 10.80 Tm
Voice coil induct. (Le) 1.2 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3.5 mm
Eff. cone area (Sd) 346 cm2
Magnet weight 1.1 kg
Magnet diameter Ø 145 mm

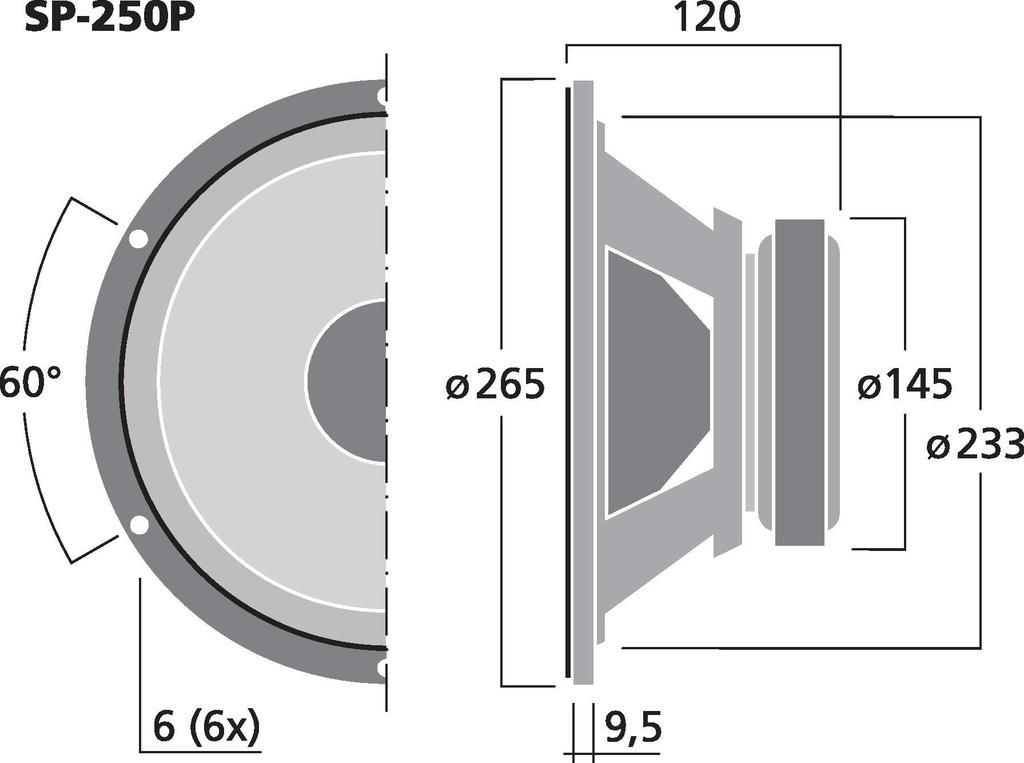

Mounting cutout Ø 233 mm
Mounting depth 110.5 mm
Mounting hole diameter Ø 250 mm
Dimensions Ø 265 mm x 120 mm
Outside diameter Ø 265 mm
Width Ø 265 mm
Height Ø 265 mm
Depth 120 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 3.34 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.285 x 0.145 x 0.285 m
Gross weight 3.66 kg
Net weight 3.34 kg

Fisiere de descarcat

Fisa produsului SP-250P konformitaetserklaerung-ce konformitaetserklaerung-ukca
