SP-302E

Cod EAN: 4007754153538

Hi-fi bass-midrange speaker, 100 W, 4 Ω Multi-purpose speaker Foam surround Replacement speaker for closed cabinets Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com

Intreaba despre produs
Cumpara acum


SP-302E

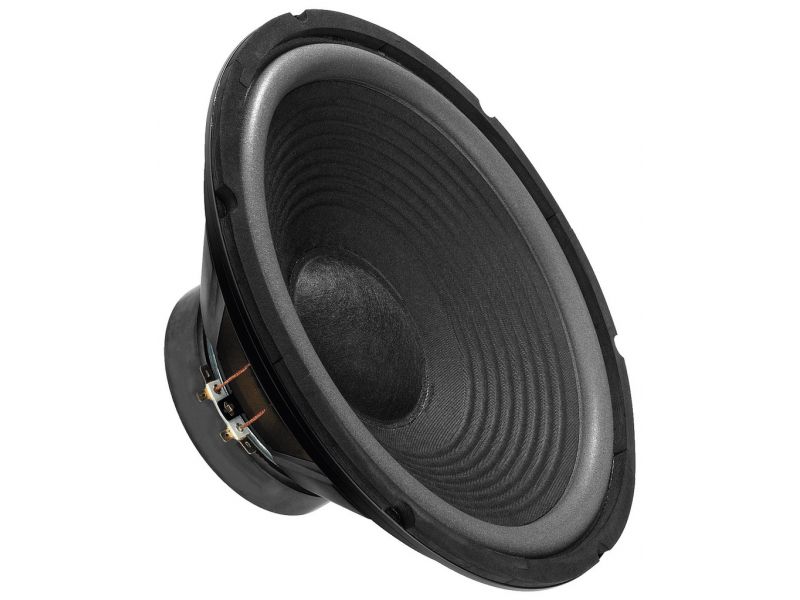

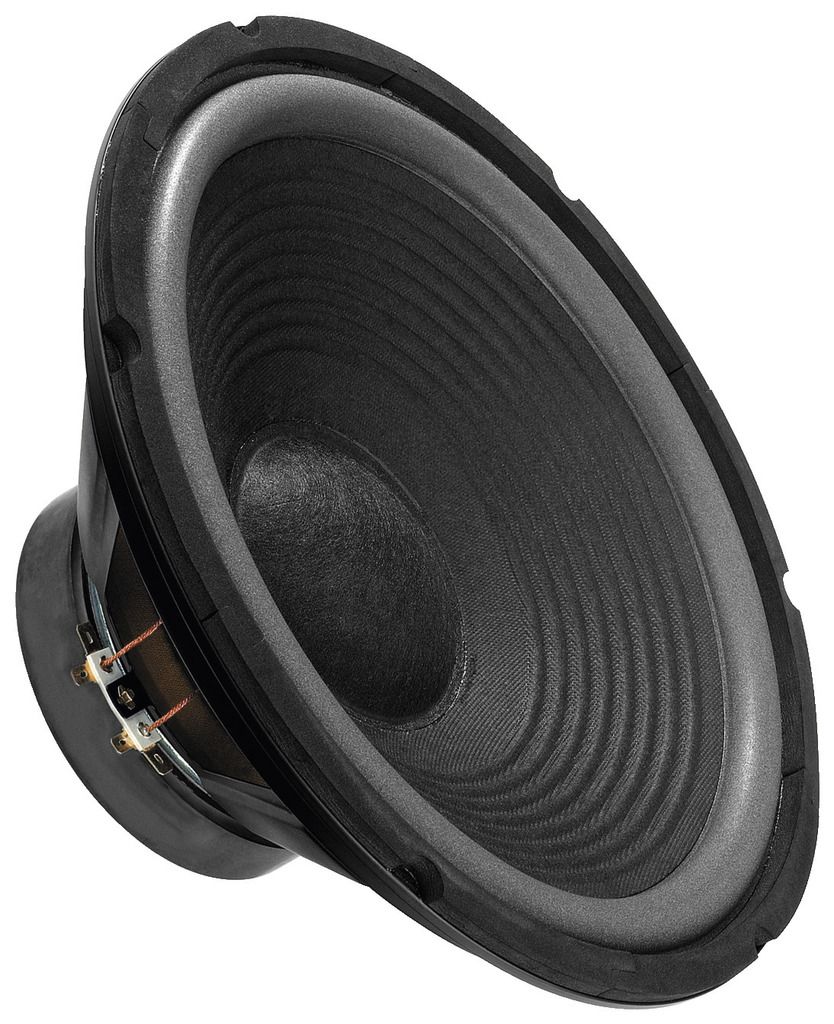

Hi-fi bass-midrange speaker, 100 W, 4 Ω
  • Multi-purpose speaker
  • Foam surround
  • Replacement speaker for closed cabinets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

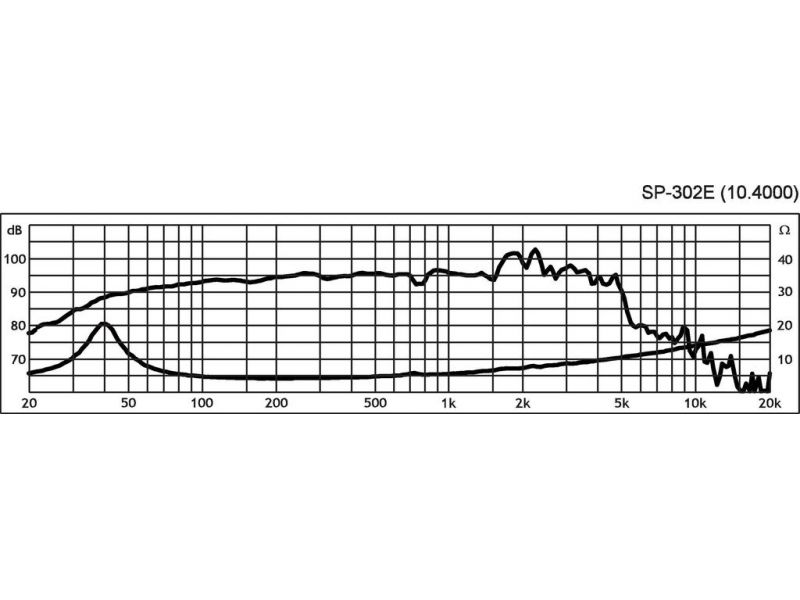

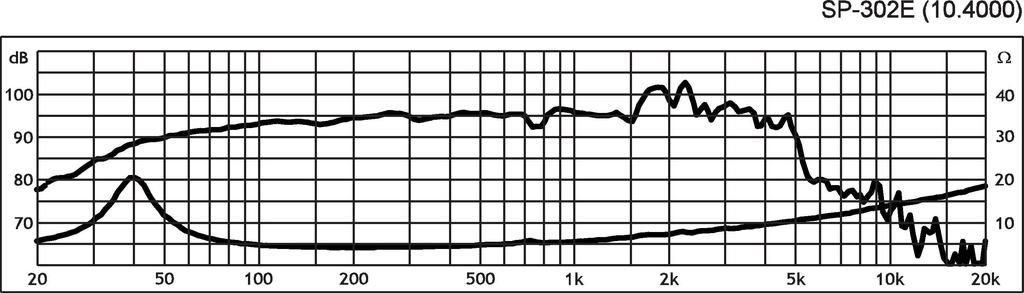

Frequency range f3-5,500 Hz
Resonant frequency (fs) 39 Hz
Power rating (RMS) 100 W
Peak music power output (MAX) 200 W
SPL 95 dB/W/m
Suspension compl. (Cms) 0.39 mm/N
Moving mass (Mms) 40 g
Mech. Q factor (Qms) 4.24
Electr. Q factor (Qes) 0.87
Total Q factor (Qts) 0.72
Equivalent volume (Vas) 141 l
DC resistance (Re) 3.6 Ω
Force factor (BxL) 6.63 Tm
Voice coil induct. (Le) 1.1 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 518 cm2
Magnet weight 960 g
Magnet diameter Ø 125 mm

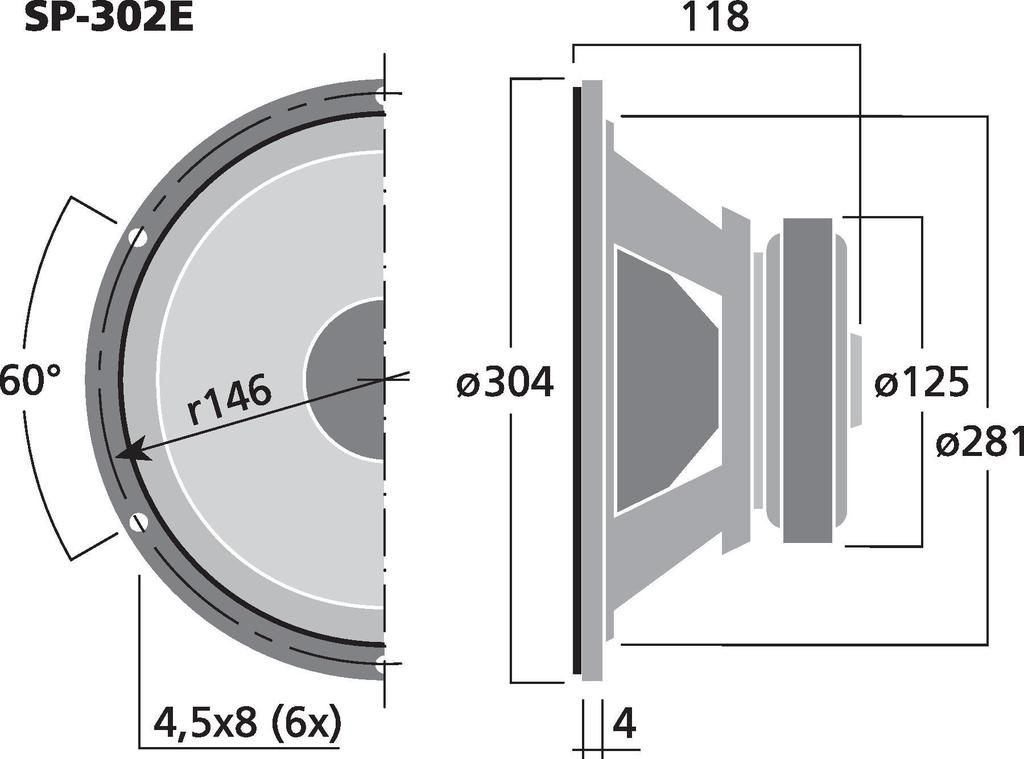

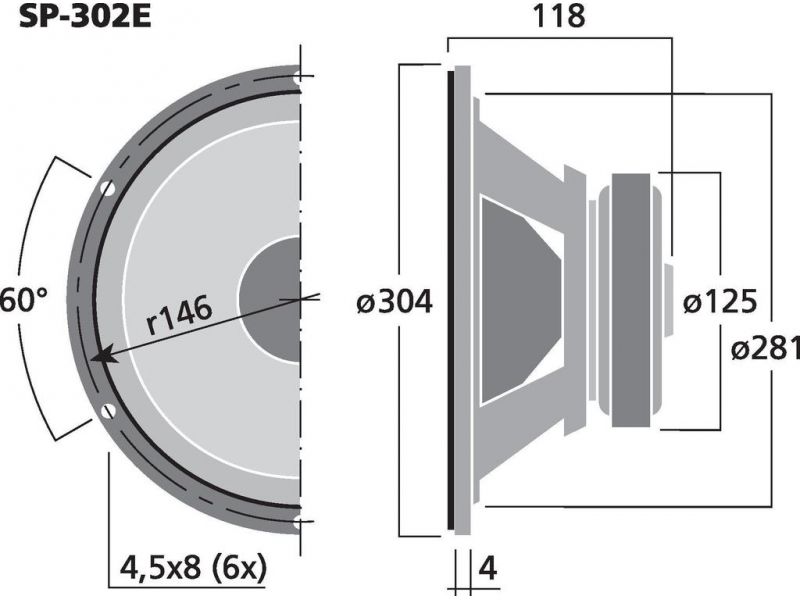

Mounting cutout Ø 281 mm
Mounting depth 114 mm
Mounting hole diameter Ø 292 mm
Dimensions Ø 304 mm x 118 mm
Outside diameter Ø 304 mm
Width Ø 304 mm
Height Ø 304 mm
Depth 118 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.58 kg
Packing unit 1
Type of speaker 12"
Packaging dimensions (W x H x L) 0.31 x 0.14 x 0.315 m
Gross weight 2.76 kg
Net weight 2.585 kg

Fisiere de descarcat

Fisa produsului SP-302E konformitaetserklaerung-ce konformitaetserklaerung-ukca
