SP-312CX

Cod EAN: 4007754246599

2-way coaxial PA speaker, with integrated horn tweeter. 30 cm (12") PA bass speaker of high power capability and high efficiency Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver Excellent sound characteristi...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-312CX

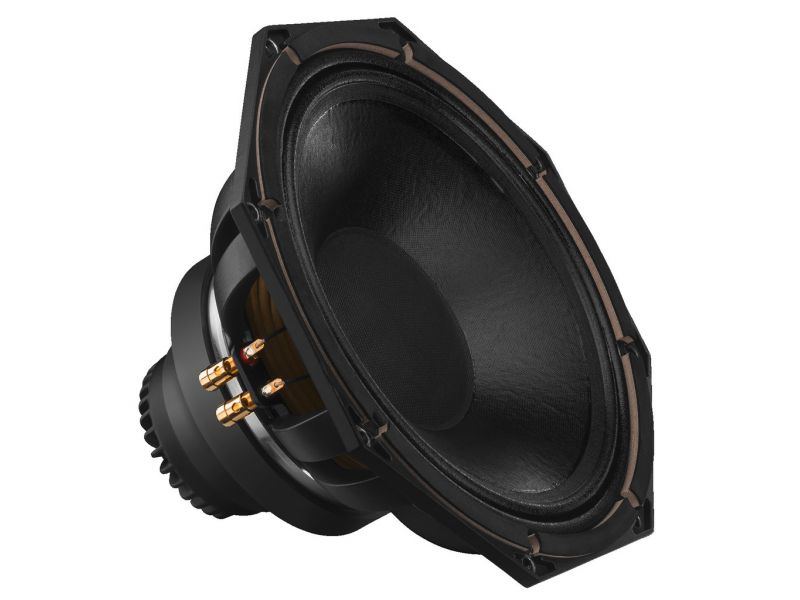

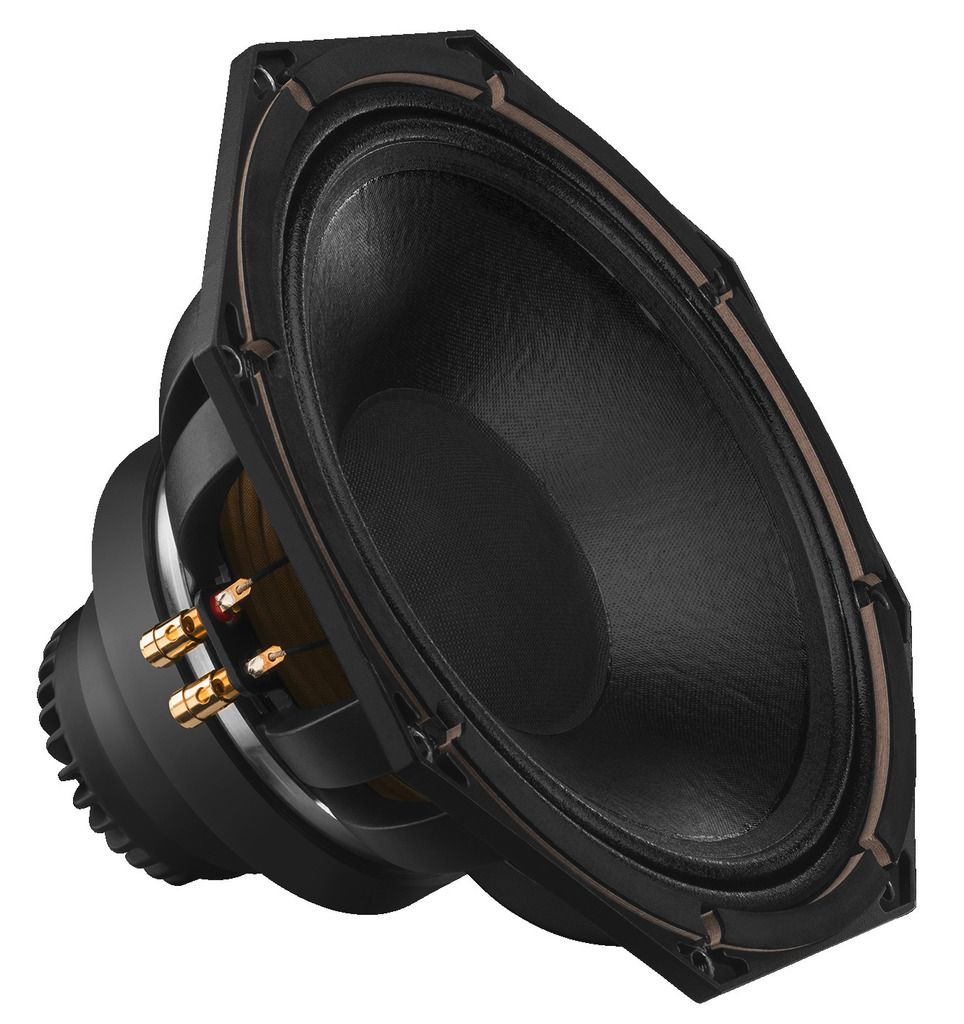

2-way coaxial PA speaker,
with integrated horn tweeter.
  • 30 cm (12") PA bass speaker of high power capability and high efficiency
  • Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
  • Excellent sound characteristics
  • Robust diecast basket with rear-ventilated centering spider
  • 75 mm (3") heat-resistant voice coil on a polyamide voice coil former (TIL)
  • Excellent and consistent radiation pattern
  • Ideally suited for stage monitors or very compact full range speaker systems
  • Operation only allowed with crossover network (recommended crossover frequency: 1,800 Hz)
Klang+Ton 08,09/2016
“Even at high volume levels which are anything but neighbour-friendly, you can still lean back and enjoy the sound - thats exactly how PA speakers should be. The Stage 12 is a well-balanced speaker system of high efficiency ...”

Klang+Ton 01/2015
“Excellent coaxial speaker.”

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

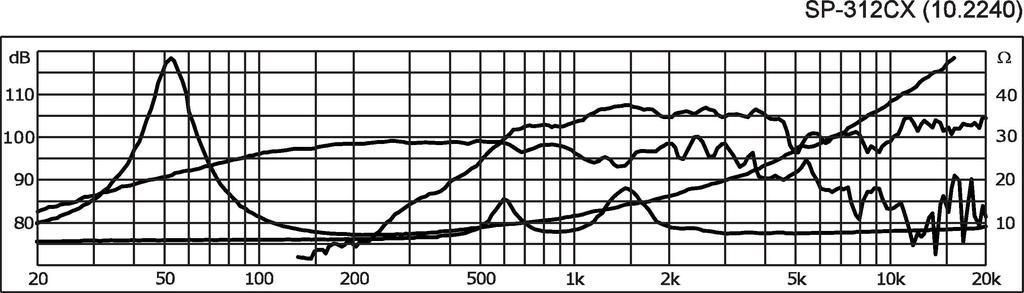

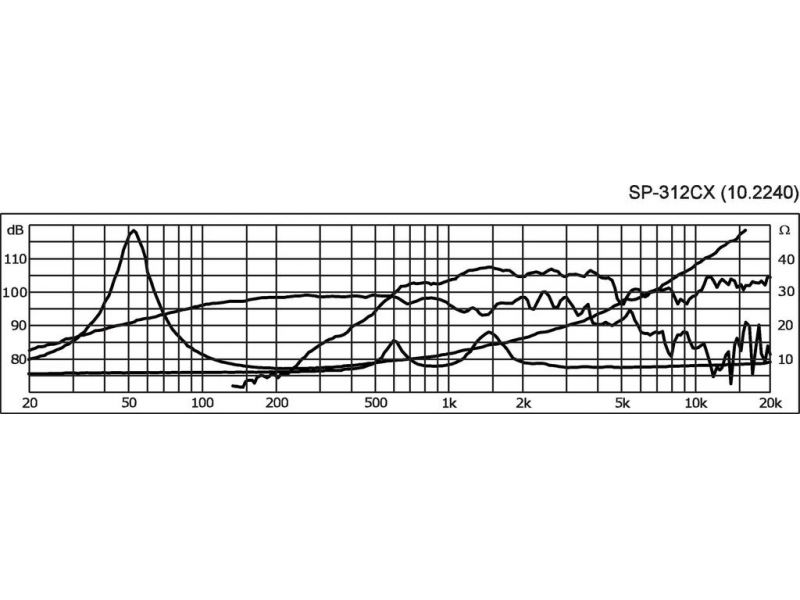

Frequency range f3-3,000 Hz
Resonant frequency (fs) 55 Hz (bass), 700 Hz (tweeter)
Power rating (RMS) 250 W (bass) / 50 W (tweeter)
Peak music power output (MAX) 500 W (bass) / 100 W (tweeter)
SPL 97 dB (bass) / 106 dB (tweeter)
Suspension compl. (Cms) 0.16 mm/N
Moving mass (Mms) 56 g
Mech. Q factor (Qms) 3.74
Electr. Q factor (Qes) 0.36
Total Q factor (Qts) 0.33
Equivalent volume (Vas) 64 l
DC resistance (Re) 5.6 Ω
Force factor (BxL) 16.90 Tm
Voice coil induct. (Le) 1.1 mH
Voice coil diameter Ø 75 mm (bass) / Ø 44 mm (tweeter)
Voice coil former polyimide
Linear excursion (XMAX) ± 3.0 mm
Eff. cone area (Sd) 540 cm2
Magnet weight 1.8 kg

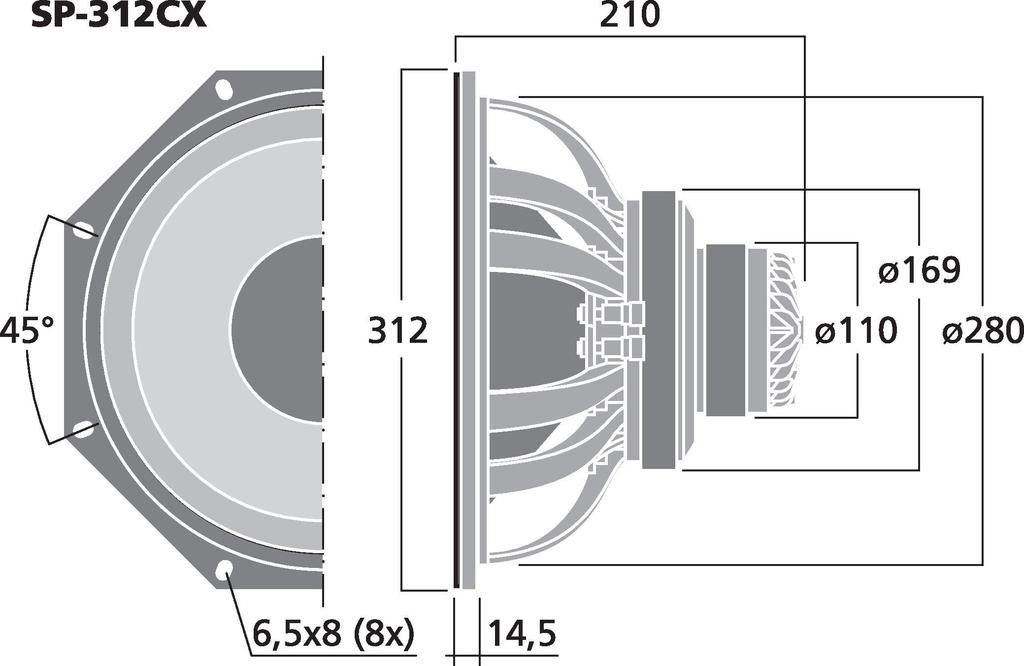

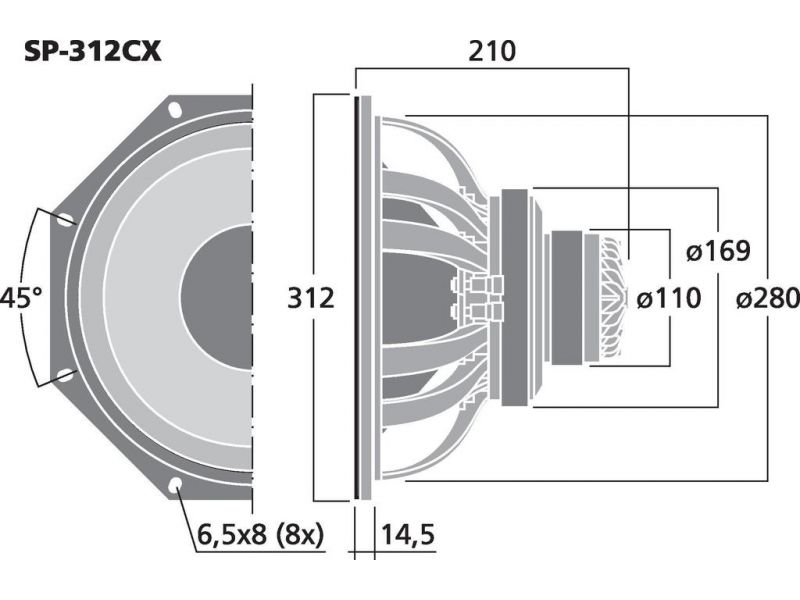

Magnet diameter Ø 169 mm/Ø 110 mm
Mounting cutout Ø 280 mm
Mounting depth 195.5 mm
Dimensions 312 x 312 x 210 mm
Width 312 mm
Height 312 mm
Depth 210 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 8.06 kg
Packing unit 1
Type of speaker 12"
Packaging dimensions (W x H x L) 0.395 x 0.27 x 0.395 m
Gross weight 9.31 kg
Net weight 8.06 kg

Fisiere de descarcat

Fisa produsului SP-312CX konformitaetserklaerung-ce konformitaetserklaerung-ukca
