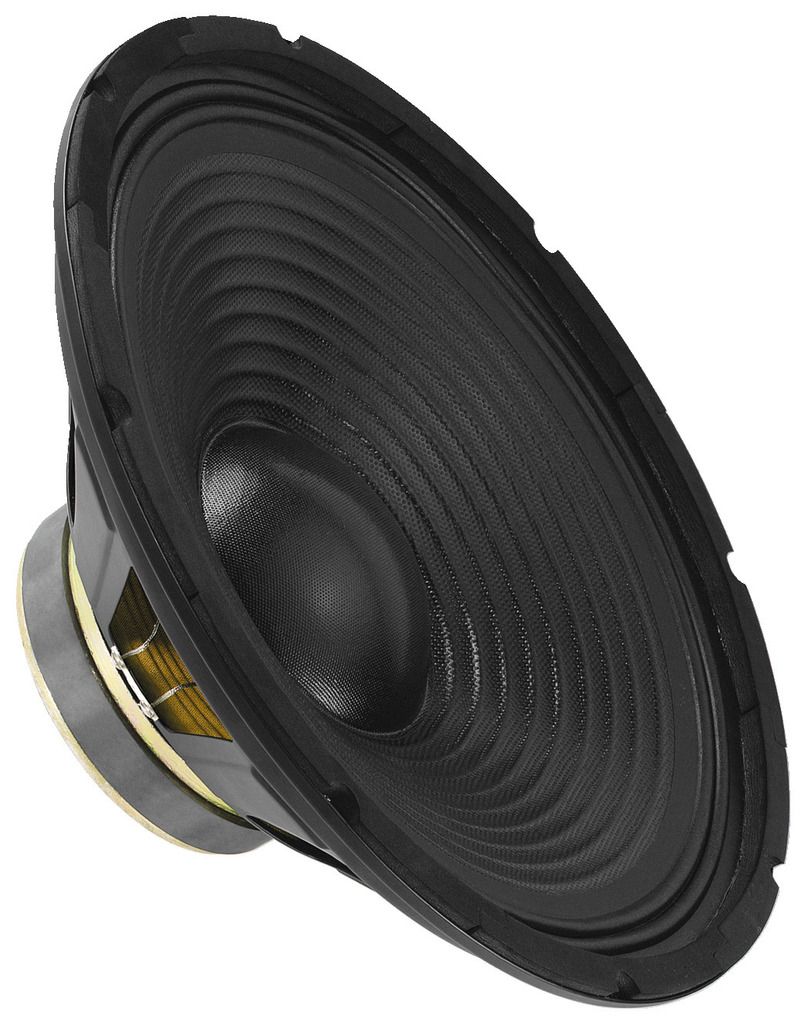

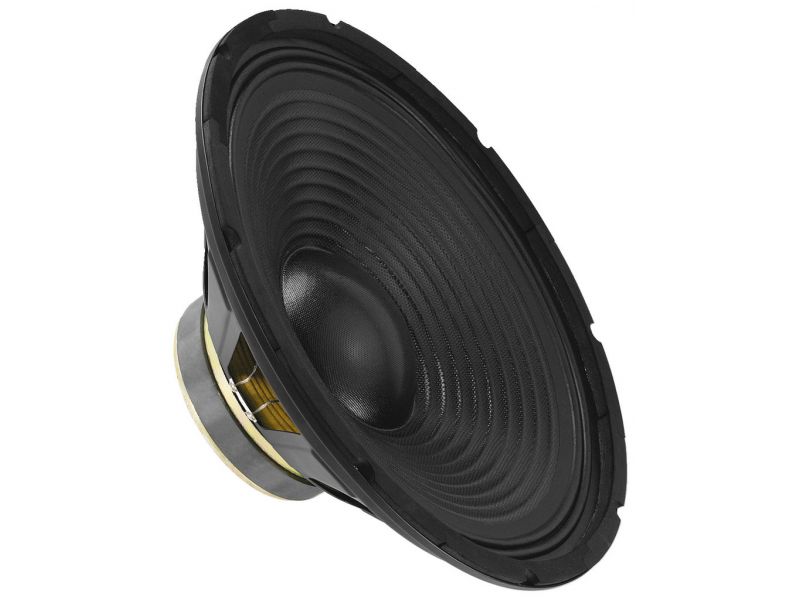

SP-382PA
Cod EAN: 4007754134919
Universal bass speaker, 150 W, 8 Ω For bass applications, also in power speaker systems.
SP-382PA
Universal bass speaker, 150 W, 8 Ω
For bass applications, also in power speaker systems.
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

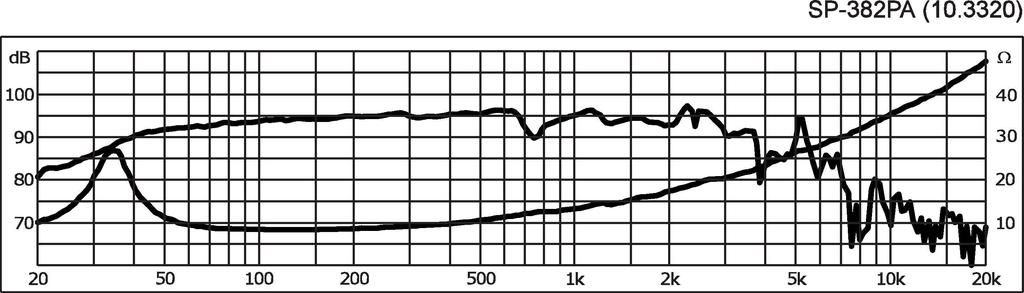

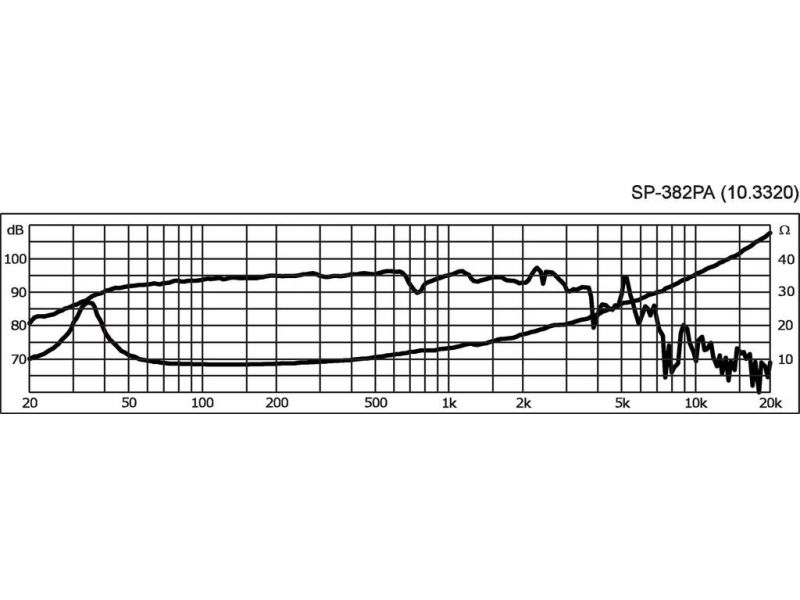

| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 25 Hz |
| Power rating (RMS) | 150 W |
| Peak music power output (MAX) | 300 W |
| SPL | 94 dB/W/m |
| Suspension compl. (Cms) | 0.26 mm/N |
| Moving mass (Mms) | 73 g |
| Mech. Q factor (Qms) | 3.03 |
| Electr. Q factor (Qes) | 0.99 |
| Total Q factor (Qts) | 0.75 |
| Equivalent volume (Vas) | 270 l |
| DC resistance (Re) | 7.0 Ω |
| Force factor (BxL) | 10.87 Tm |
| Voice coil induct. (Le) | 0.8 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 3.5 mm |
| Eff. cone area (Sd) | 825 cm2 |
| Magnet weight | 1.2 kg |
| Magnet diameter | Ø 142 mm |

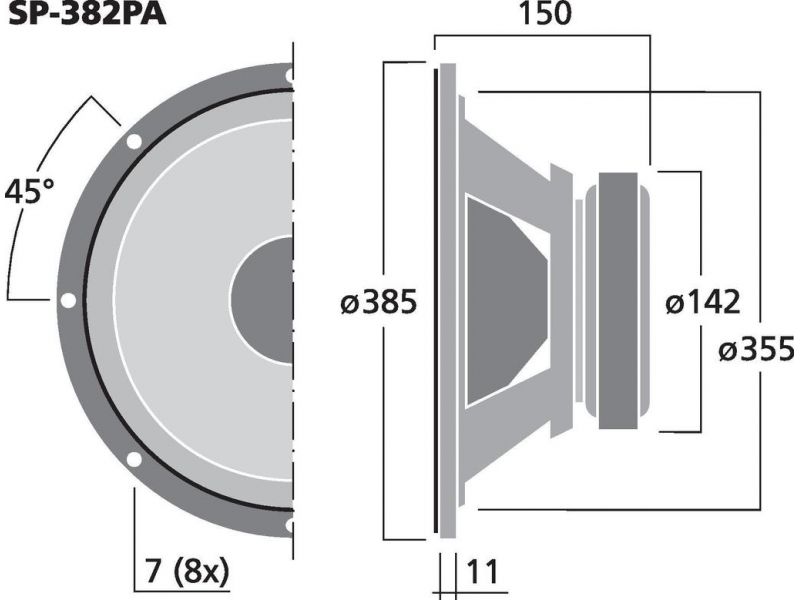

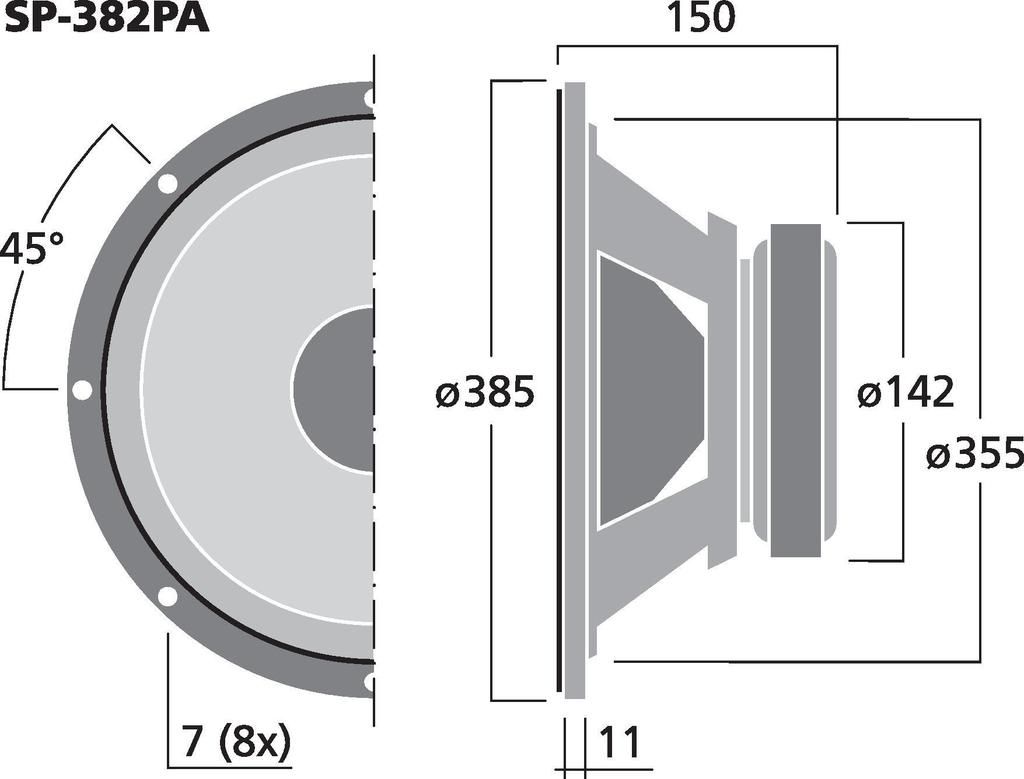

| Mounting cutout | Ø 355 mm |
| Mounting depth | 139 mm |
| Dimensions | Ø 385 mm x 150 mm |
| Outside diameter | Ø 385 mm |
| Width | Ø 385 mm |
| Height | Ø 385 mm |
| Depth | 150 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.9 kg |
| Packing unit | 1 |
| Type of speaker | 15" |
| Packaging dimensions (W x H x L) | 0.39 x 0.15 x 0.39 m |
| Gross weight | 4.3 kg |
| Net weight | 3.9 kg |
