SP-45/8

Cod EAN: 4007754024760

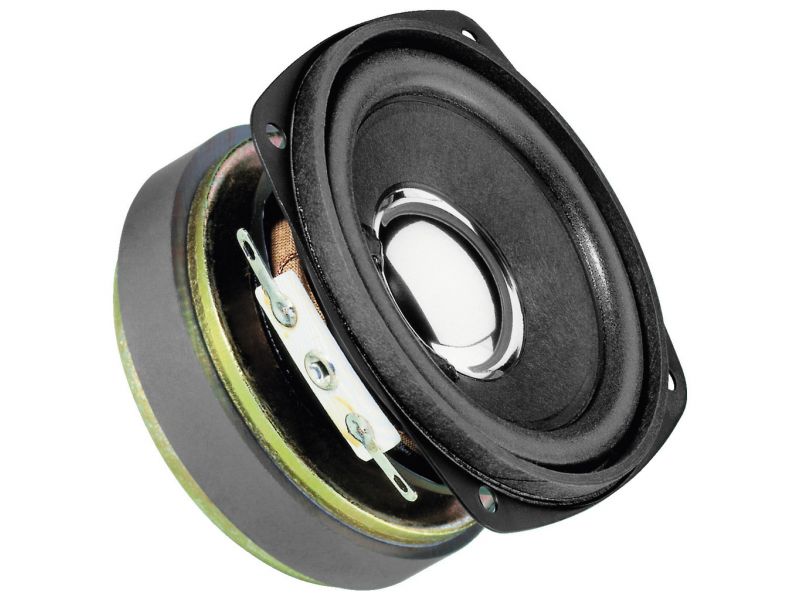

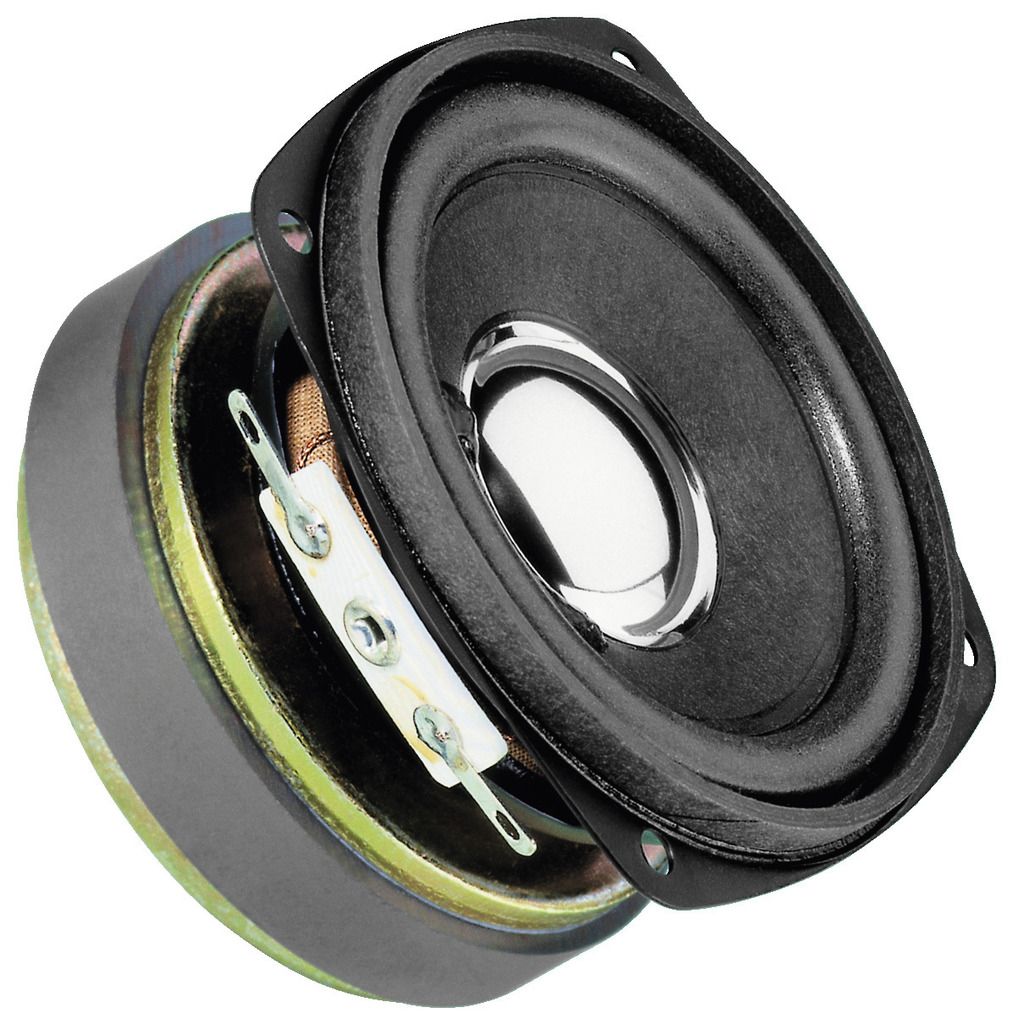

Bass-midrange speakers, 20 W, 8 Ω (/8) and 4 Ω (/4) Particularly suitable for mini speaker systems and column speakers.

Intreaba despre produs
Cumpara acum


SP-45/8

Bass-midrange speakers, 20 W, 8 Ω (/8) and 4 Ω (/4)
Particularly suitable for mini speaker systems and column speakers.

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

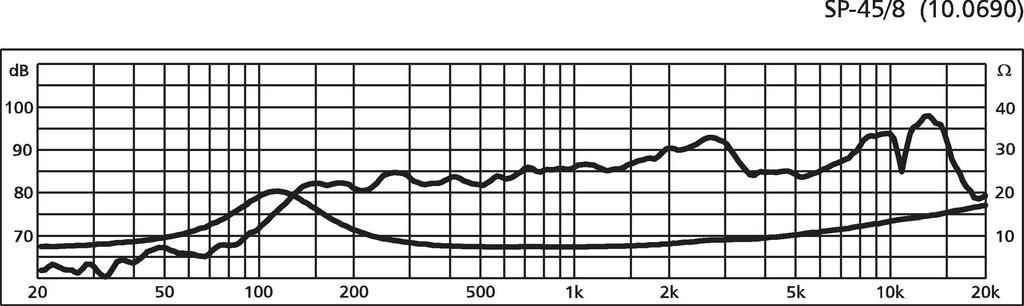

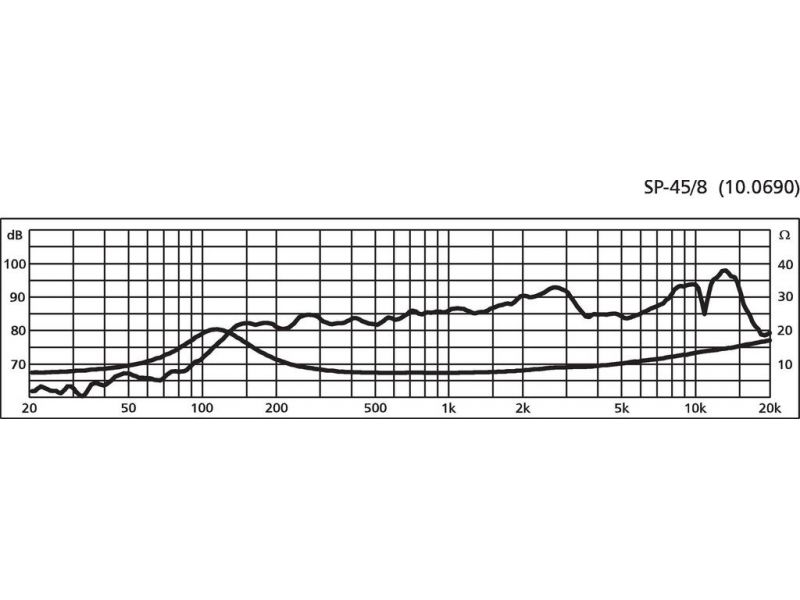

Frequency range f3-16,000 Hz
Resonant frequency (fs) 120 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
SPL 88 dB/W/m
Suspension compl. (Cms) 1.1 mm/N
Moving mass (Mms) 1.6 g
Mech. Q factor (Qms) 2.82
Electr. Q factor (Qes) 0.68
Total Q factor (Qts) 0.55
Equivalent volume (Vas) 1.5 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 3.40 Tm
Voice coil induct. (Le) 0.15 mH
Voice coil diameter Ø 19 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 0.75 mm
Eff. cone area (Sd) 31 cm2
Magnet weight 150 g
Magnet diameter Ø 70 mm

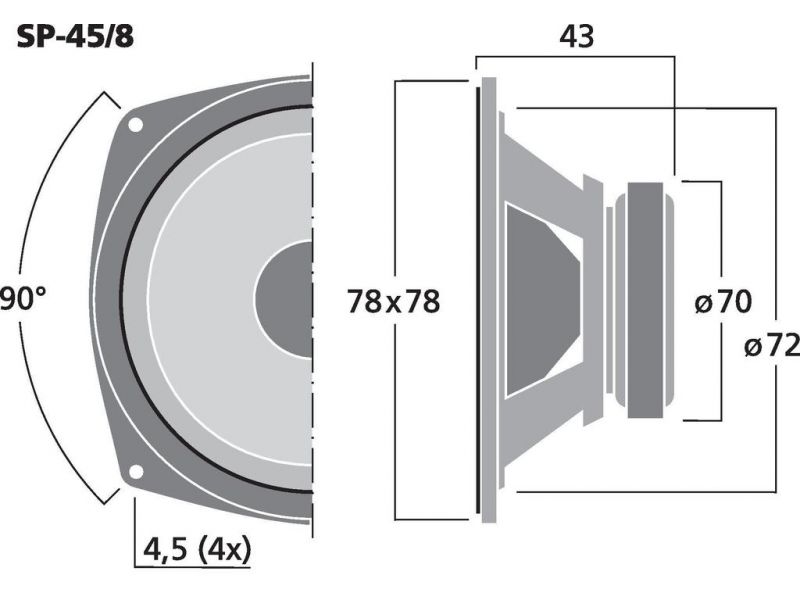

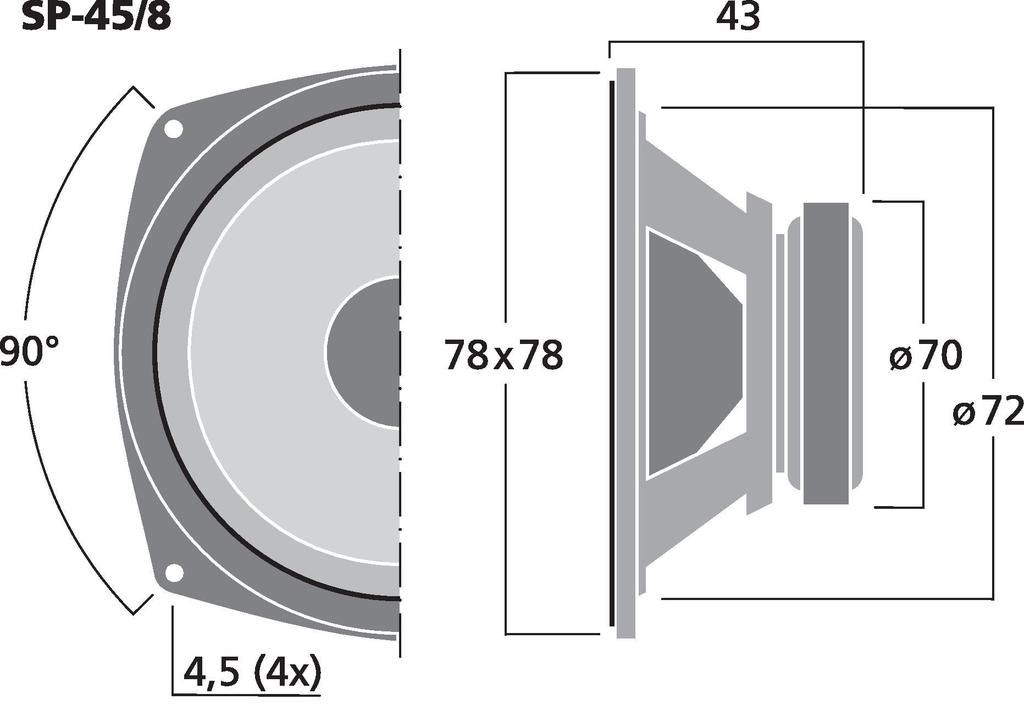

Mounting cutout Ø 72 mm
Mounting depth 43 mm
Mounting hole diameter Ø 84 mm
Hole spacing X-axis 59.5 mm
Hole spacing Y-axis 59.5 mm
Dimensions 78 x 78 x 43 mm
Outside diameter Ø 93 mm
Width 78 mm
Height 78 mm
Depth 43 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.411 kg
Packing unit 1
Type of speaker 3"
Packaging dimensions (W x H x L) 0.085 x 0.055 x 0.085 m
Gross weight 0.425 kg
Net weight 0.411 kg
