TXS-900

Cod EAN: 4007754239096

Multifrequency receiver unit, with UHF PLL technology. 2 frequency ranges (E band: 823-832 MHz and 863-865 MHz) 442 selectable channels Intermodulation-free presets, 4 groups with 8 channels each 12 intermodulation-free channels max. can be used in...

Citeste mai mult

Intreaba despre produs
Cumpara acum

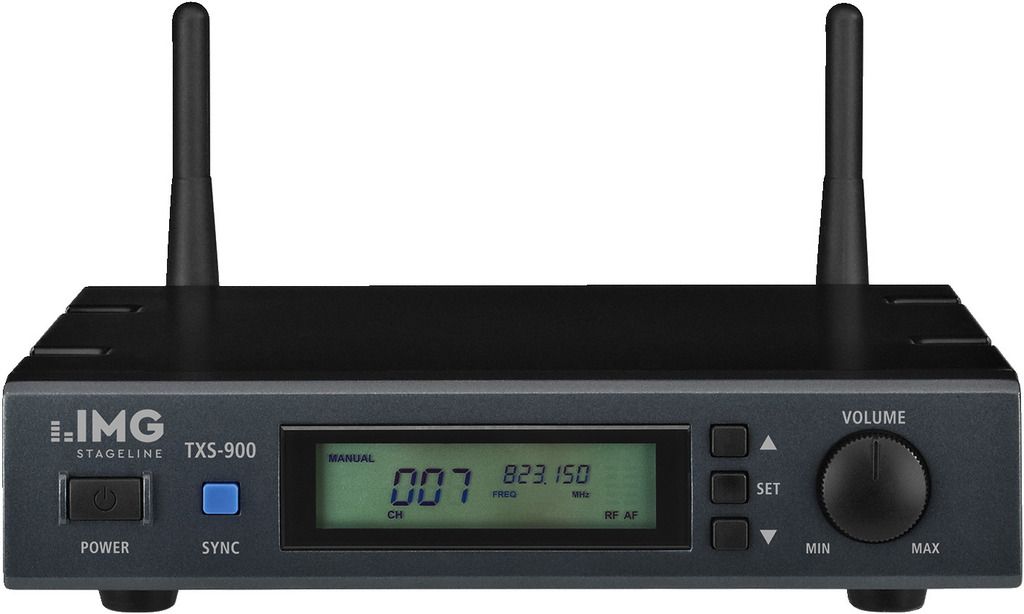

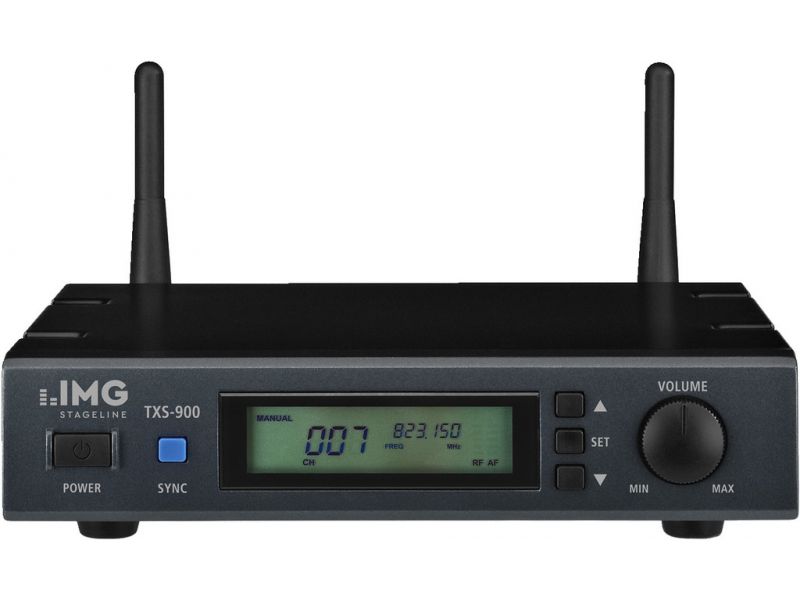

TXS-900

Multifrequency receiver unit,
with UHF PLL technology.
  • 2 frequency ranges (E band: 823-832 MHz and 863-865 MHz)
  • 442 selectable channels
  • Intermodulation-free presets, 4 groups with 8 channels each
  • 12 intermodulation-free channels max. can be used in parallel (auto-scan)
  • SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
  • Auto-scan with intermodulation detection
  • True diversity system with removable antennas (BNC connection)
  • Pilot tone squelch
  • Volume and squelch controls
  • LCD for indicating group/channel, frequency, RF receiving level, AF audio level
  • XLR output (bal.) and 6.3 mm output (unbal.), switchable mic/line
  • 8 V supply voltage for active antennas or antenna amplifiers (e.g. TXS-875B) available
  • Robust metal housing
  • Supplied with power supply
  • 482 mm (19") rack installation possible with supplied mounting brackets
Please consider the regulations and requirements in the country of application.
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description receiver unit
Carrier frequency range 823-832 MHz + 863-865 MHz
Audio frequency range 80-18,000 Hz
Channels 1
THD < 1%
Dynamic range > 100 dB
RF S/N ratio > 100 dB
Admiss. ambient temp. 0-40 °C
Audio signal receiver line: 75 mV, mic: 7 mV (jack, unbal.) line: 150 mV, mic: 15 mV (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 200 mm
Height receiver 42 mm
Depth receiver 183 mm
Weight receiver 1.1 kg
Connections receiver 1 x XLR, bal., 1 x 6.3 mm jack, unbal.

Fisiere de descarcat

Fisa produsului TXS-900 konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
