USP-124
Cod EAN: 4007754256345
4-way antenna splitter For operating up to four antennas with one transmitter (e.g. SIEM-111/5) Frequency range: 470-960 MHz Gain: 0 dB, ± 2 dB All connections via BNC jacks Manufacturer information: JTS PROFESSIONAL CO., LTD.No. 148, Gongye 9...

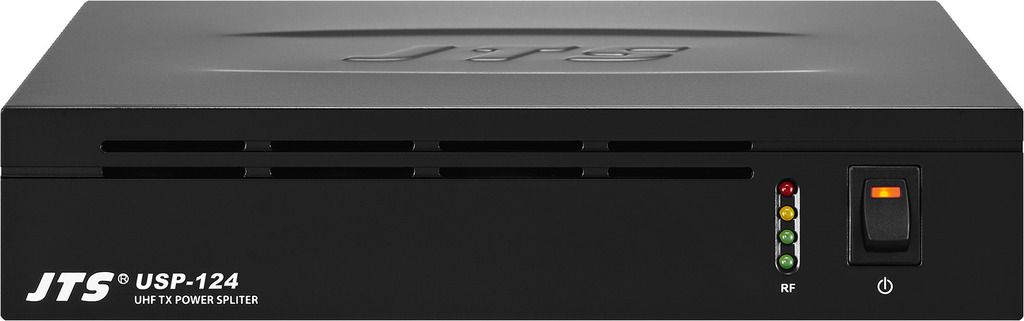

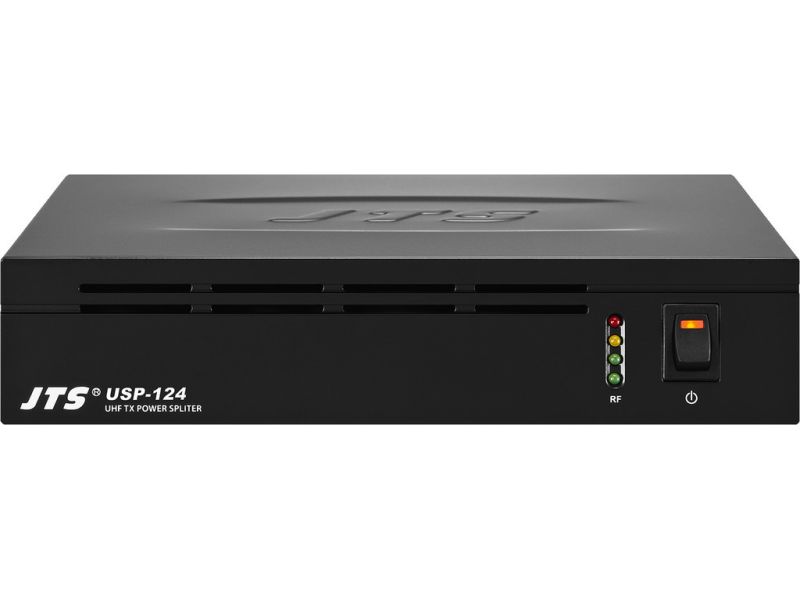

USP-124
4-way antenna splitter
- For operating up to four antennas with one transmitter (e.g. SIEM-111/5)
- Frequency range: 470-960 MHz
- Gain: 0 dB, ± 2 dB
- All connections via BNC jacks
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Frequency range | 470-960 MHz |
| Active/passive | active |
| Antenna gain | 0 dB, ±2 dB |
| Power supply | via encl. power supply |
| Dimensions | 212 x 44 x 203 mm |
| Weight | 350 g |
| Connection | BNC |
