SP-6/150PA

Cod EAN: 4007754125061

PA midrange speaker, 150 W, 8 Ω For PA midrange applications requiring a high power capability with simultaneous use of mid-high range horns Very well-suited for dual arrangements Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKon...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SP-6/150PA

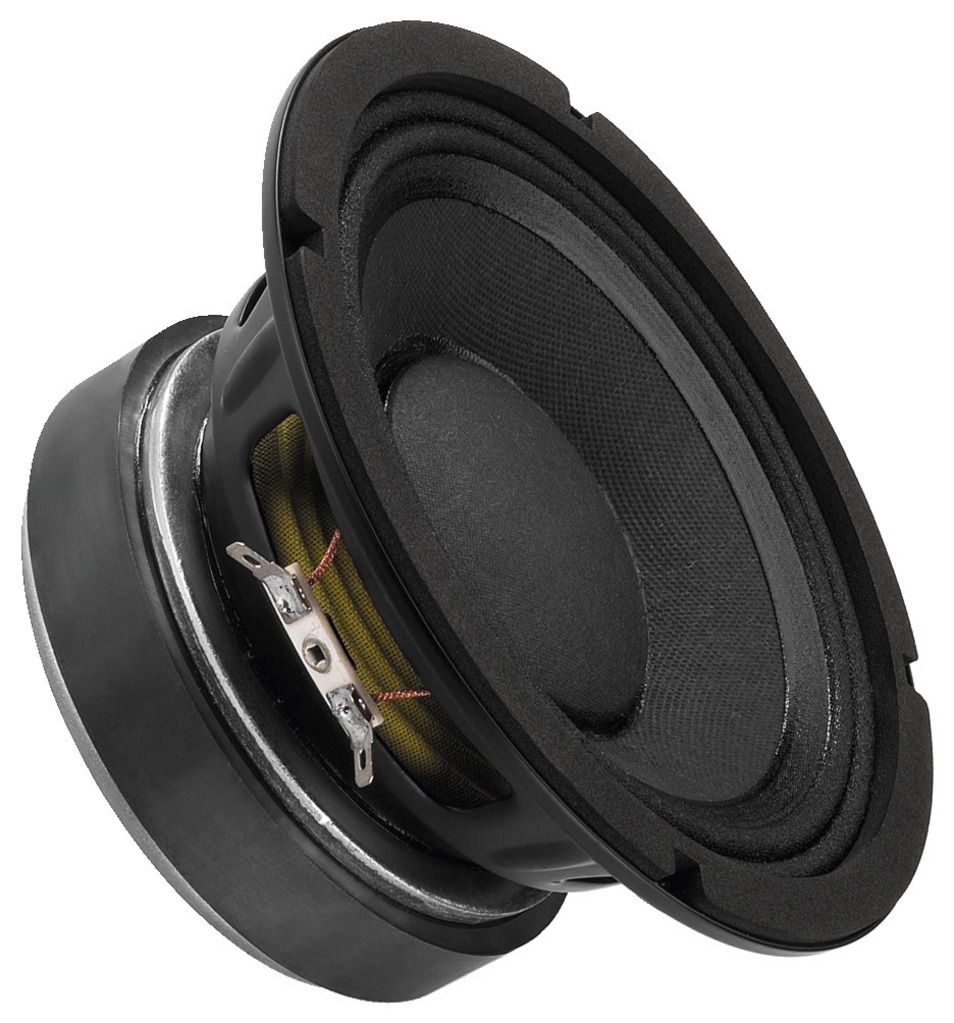

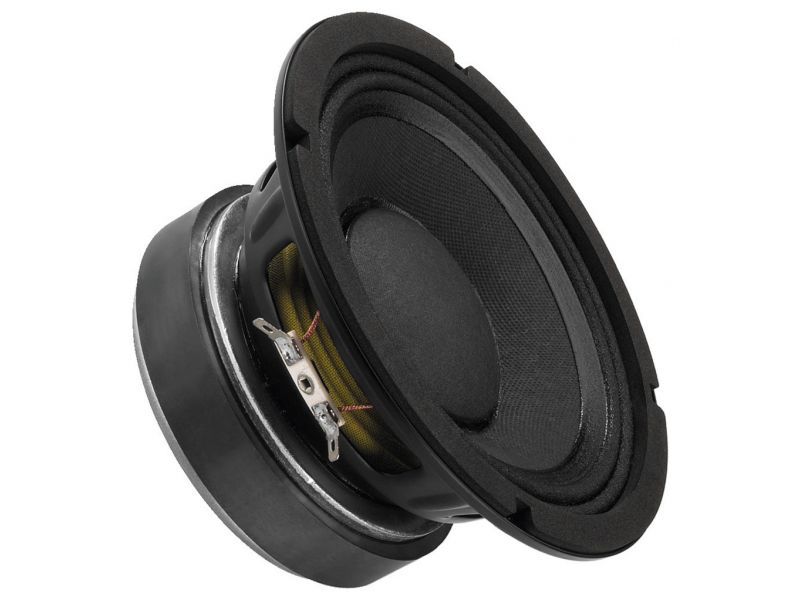

PA midrange speaker, 150 W, 8 Ω
  • For PA midrange applications requiring a high power capability with simultaneous use of mid-high range horns
  • Very well-suited for dual arrangements
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-6,000 Hz
Resonant frequency (fs) 73 Hz
Power rating (RMS) 150 W
Peak music power output (MAX) 300 W
SPL 93 dB/W/m
Suspension compl. (Cms) 0.31 mm/N
Moving mass (Mms) 15.2 g
Mech. Q factor (Qms) 5.31
Electr. Q factor (Qes) 0.46
Total Q factor (Qts) 0.42
Equivalent volume (Vas) 8.5 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 9.90 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 50 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 1 mm
Eff. cone area (Sd) 139 cm2
Magnet weight 850 g
Magnet diameter Ø 120 mm

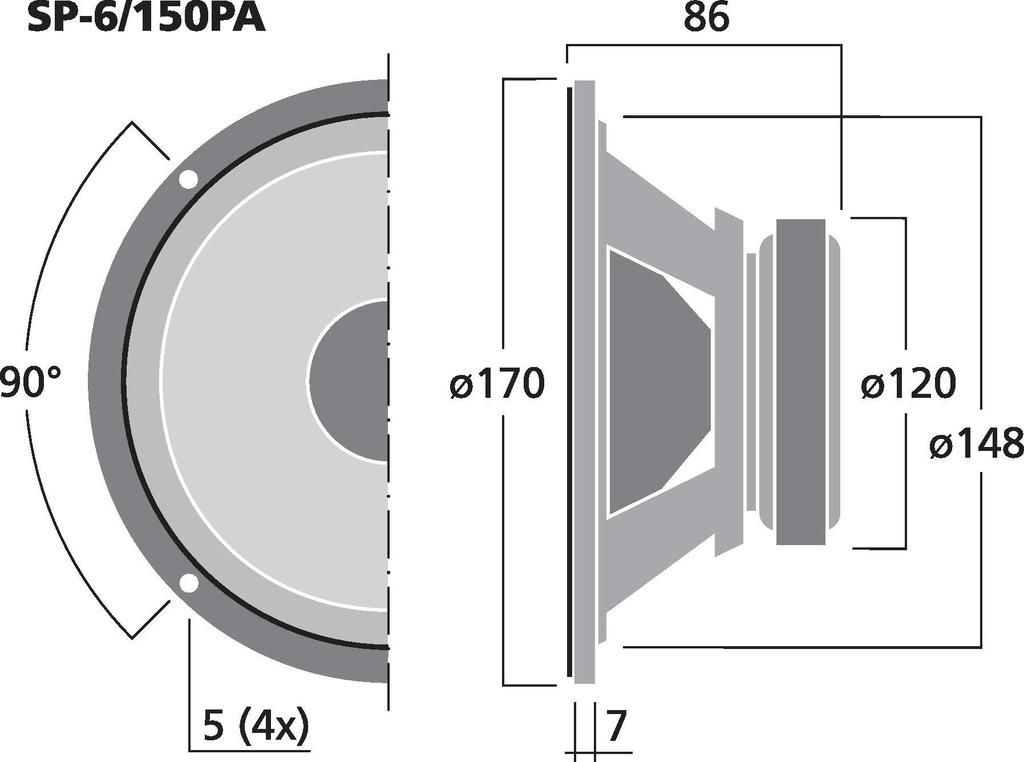

Mounting cutout Ø 148 mm
Mounting depth 79 mm
Dimensions Ø 170 mm x 86 mm
Outside diameter Ø 170 mm
Width Ø 170 mm
Height Ø 170 mm
Depth 86 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 2.16 kg
Packing unit 1
Type of speaker 6.5"
Packaging dimensions (W x H x L) 0.205 x 0.12 x 0.205 m
Gross weight 2.4 kg
Net weight 2.16 kg

Fisiere de descarcat

Fisa produsului SP-6/150PA konformitaetserklaerung-ce konformitaetserklaerung-ukca
