SP-7/4SQ

Cod EAN: 4007754137729

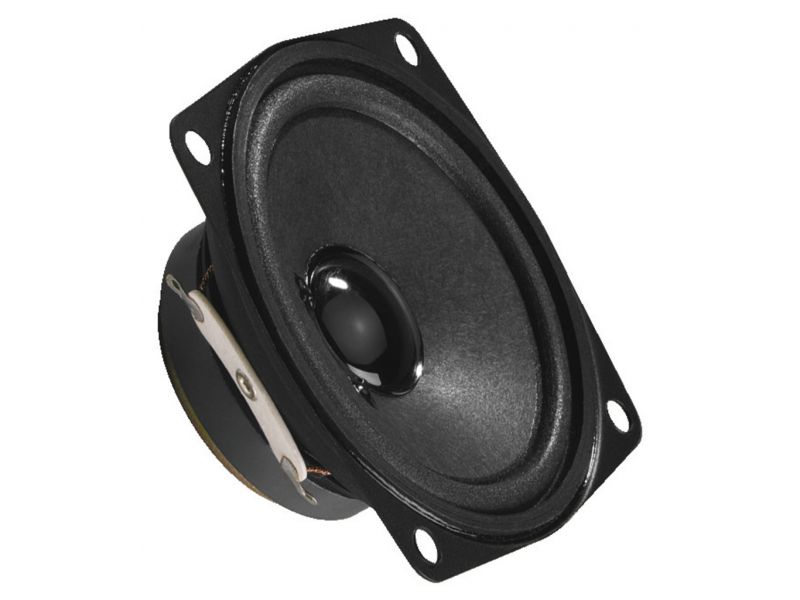

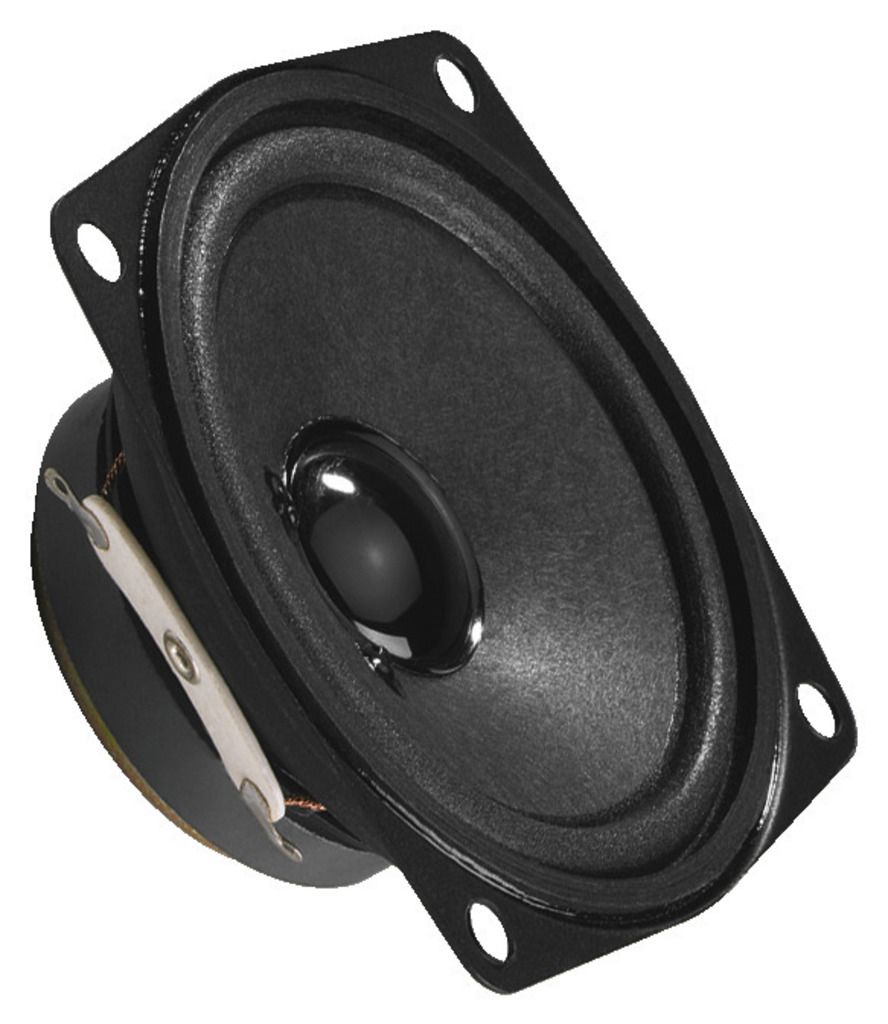

Universal speaker, 4 W, 4 Ω For standard applications in the miniature speaker range Sound pressure from approx. 200 Hz on



SP-7/4SQ

Universal speaker, 4 W, 4 Ω
  • For standard applications in the miniature speaker range
  • Sound pressure from approx. 200 Hz on

Parametrii

Impedance (Z) 4 Ω
Frequency range f3-17,000 Hz
Power rating (RMS) 4 W
Peak music power output (MAX) 8 W

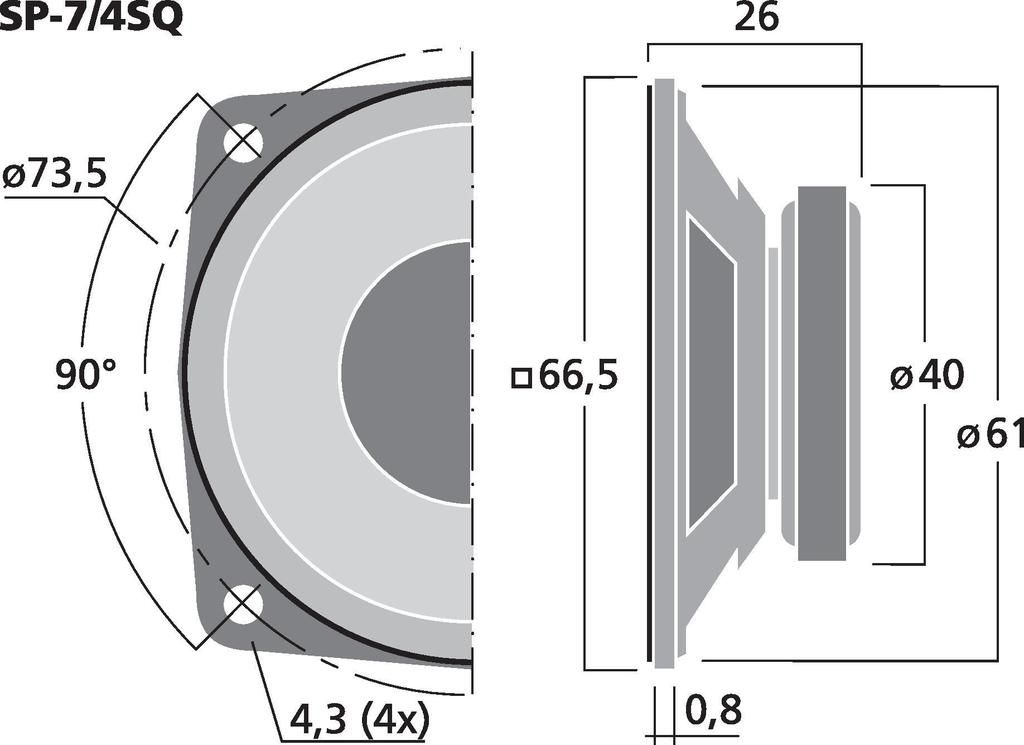

Magnet diameter Ø 40 mm
Mounting cutout Ø 61 mm
Mounting depth 25.2 mm
Mounting hole diameter Ø 73.5 mm
Width 66.5 mm
Height 66.5 mm
Depth 26 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 90 g
Packing unit 1
Packing dimensions (W x H x L) 0.07 x 0.03 x 0.07 m
Gross weight 0.1 kg
Net weight 0.09 kg
