SPH-5M

Cod EAN: 4007754223033

Hi-fi bass-midrange speaker, 40 W, 8 Ω High-quality hi-fi bass-midrange speaker of long excursion Damped low-resonance polypropylene cone Robust diecast aluminium basket of an elegant design with 6-hole screw connection Magnet system with drilled pol...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-5M

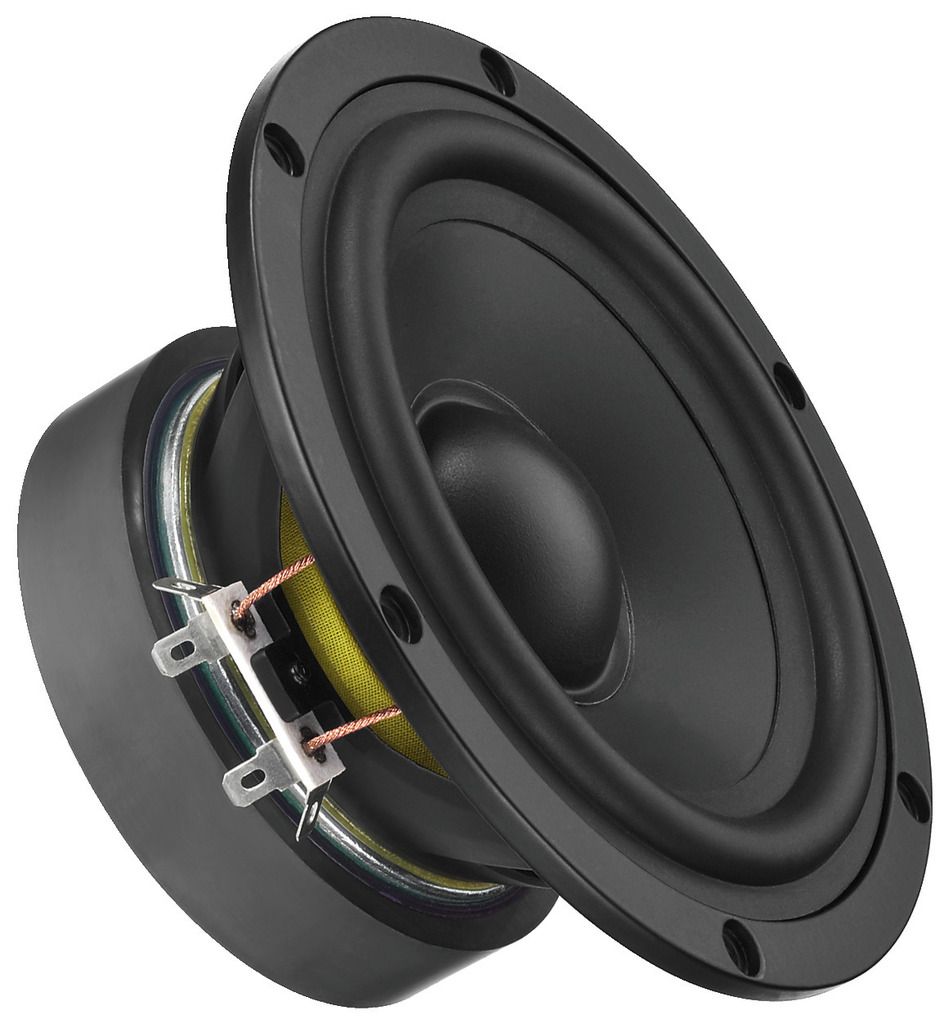

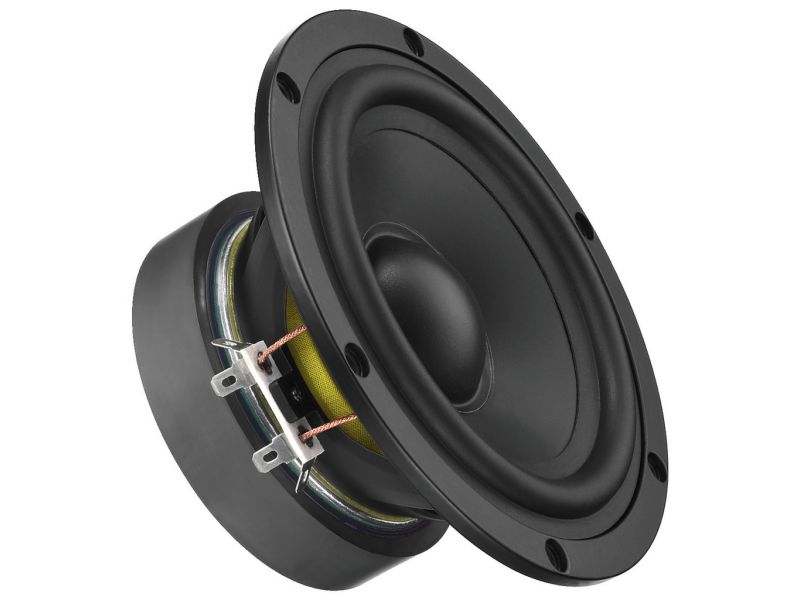

Hi-fi bass-midrange speaker, 40 W, 8 Ω
  • High-quality hi-fi bass-midrange speaker of long excursion
  • Damped low-resonance polypropylene cone
  • Robust diecast aluminium basket of an elegant design with 6-hole screw connection
  • Magnet system with drilled pole core and protruding rear pole plate
  • For general applications in compact bass-reflex, TML and closed speaker systems
  • Very well-suited also as a midrange speaker in 3-way speaker systems
HOBBY HiFi 04/2012
“Impressive subwoofer down to 34 Hz.”

Parametrii

Impedance (Z) 8 Ω

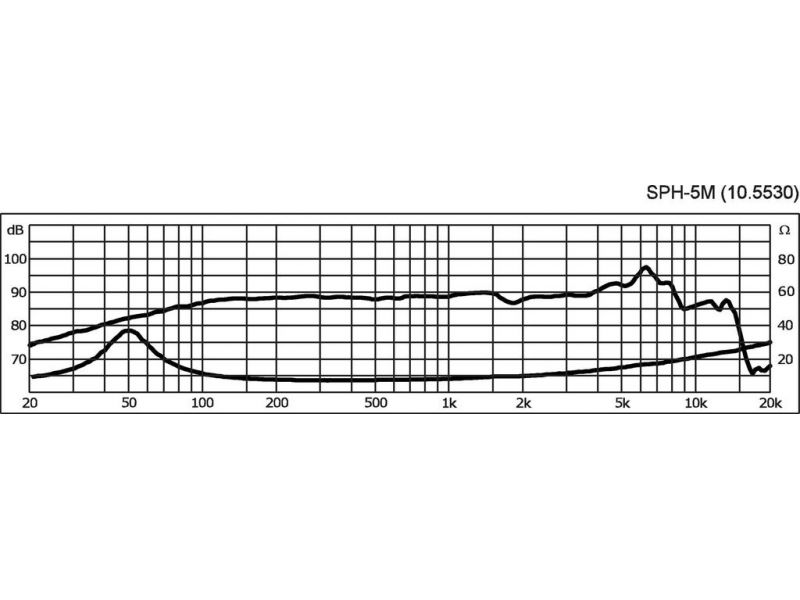

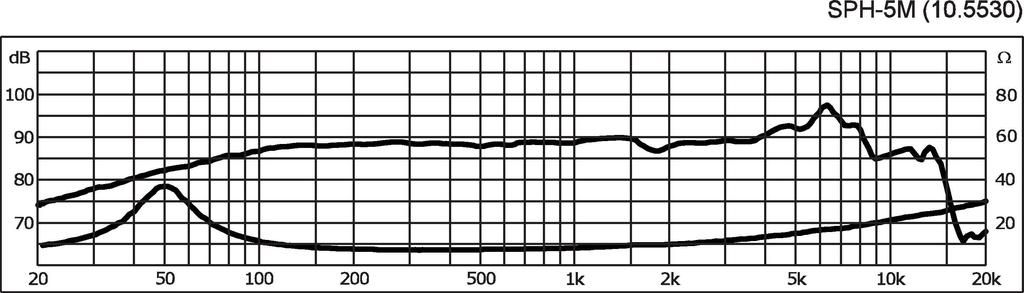

Frequency range f3-4,000 Hz
Resonant frequency (fs) 45 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 88 dB/W/m
Suspension compl. (Cms) 1.06 mm/N
Moving mass (Mms) 11.73 g
Mech. Q factor (Qms) 2.89
Electr. Q factor (Qes) 0.47
Total Q factor (Qts) 0.41
Equivalent volume (Vas) 13.5 l
DC resistance (Re) 6.3 Ω
Force factor (BxL) 6.42 Tm
Voice coil induct. (Le) 0.54 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3.5 mm
Eff. cone area (Sd) 95 cm2
Magnet weight 620 g
Magnet diameter Ø 100 mm

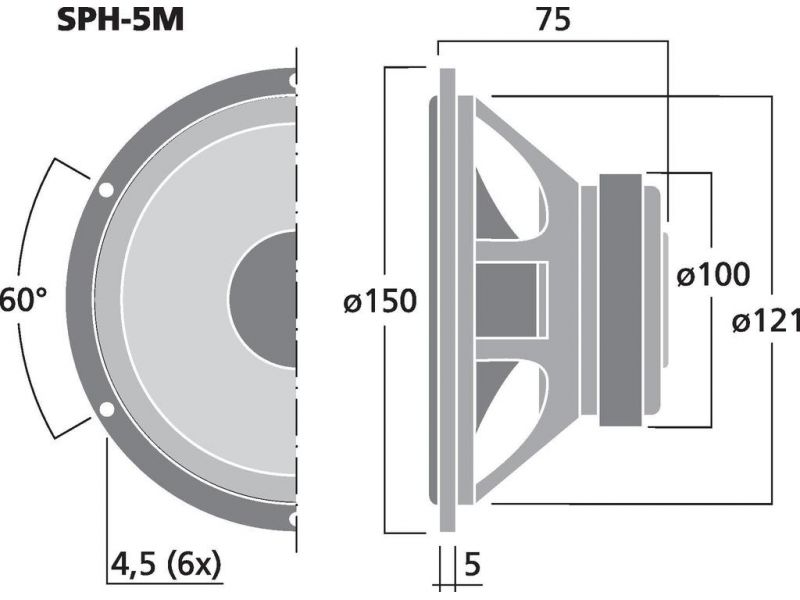

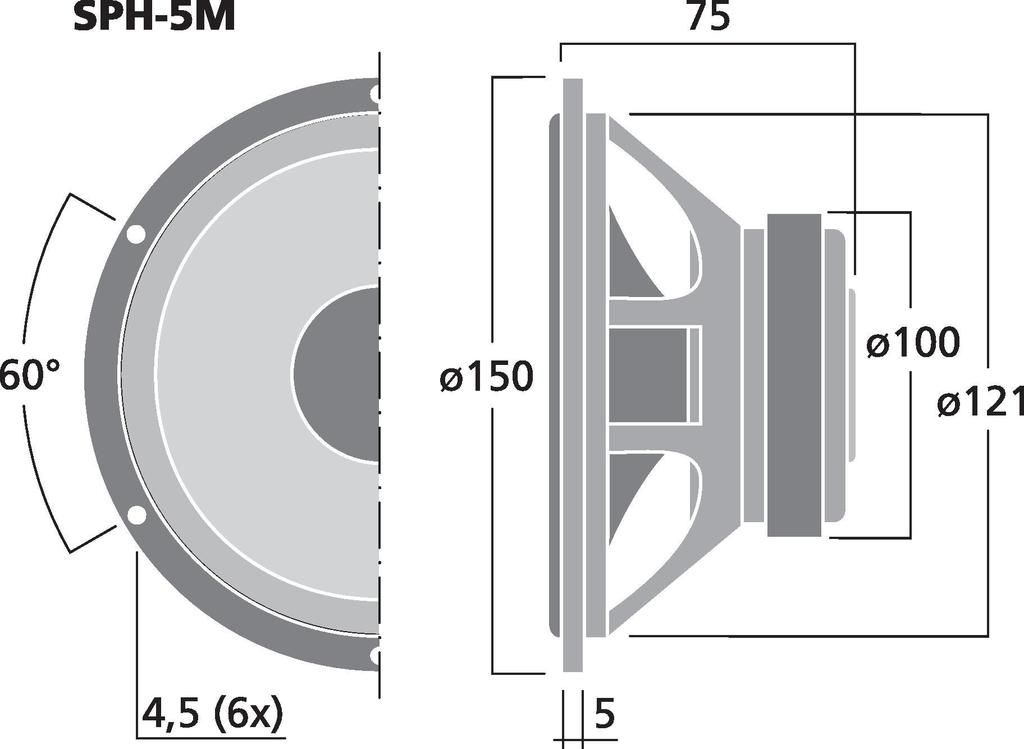

Mounting cutout Ø 121 mm
Mounting depth 70 mm
Mounting hole diameter Ø 140 mm
Dimensions Ø 150 mm x 75 mm
Outside diameter Ø 150 mm
Width Ø 150 mm
Depth 75 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.305 kg
Packing unit 1
Type of speaker 5.5"
Packing dimensions (W x H x L) 0.175 x 0.12 x 0.175 m
Gross weight 1.46 kg
Net weight 1.305 kg

Fisiere de descarcat

Fisa produsului SPH-5M konformitaetserklaerung-ce konformitaetserklaerung-ukca
