SP-8/150PRO
Cod EAN: 4007754207859
Compact PA bass speaker, subwoofer, 150 W, 8 Ω 20 cm (8") bass speaker and subwoofer of high power capability Heat-resistant voice coil and ventilated drive system Extra long excursion for a deep bass reproduction of high volumes Progressive cone sus...

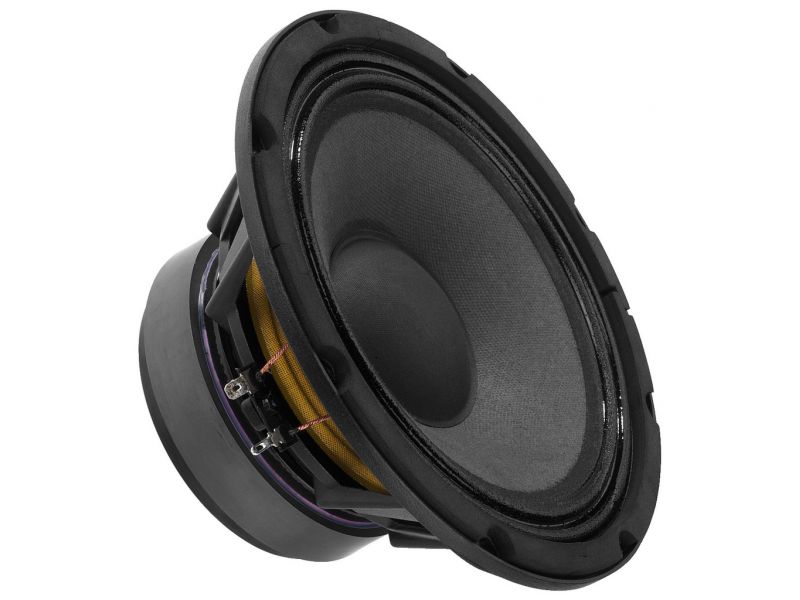

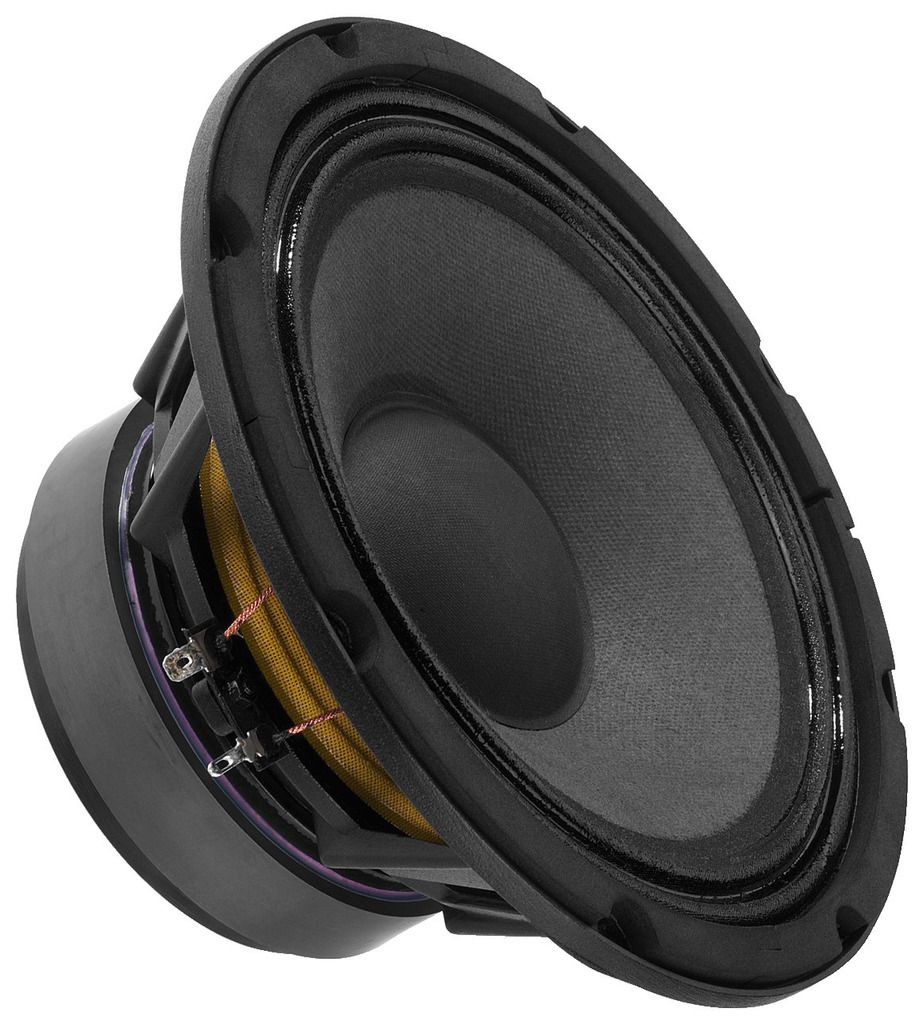

SP-8/150PRO
Compact PA bass speaker, subwoofer, 150 W, 8 Ω
- 20 cm (8") bass speaker and subwoofer of high power capability
- Heat-resistant voice coil and ventilated drive system
- Extra long excursion for a deep bass reproduction of high volumes
- Progressive cone suspension for a high operating reliability
- Robust diecast aluminium basket
- Ideally suited for 2-way systems and compact subwoofers
HOBBY HiFi 02/2019
“An excellent bass-midrange speaker with an impressive level stability for 2-way and 3-way applications. It features an excellent price-performance ratio.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

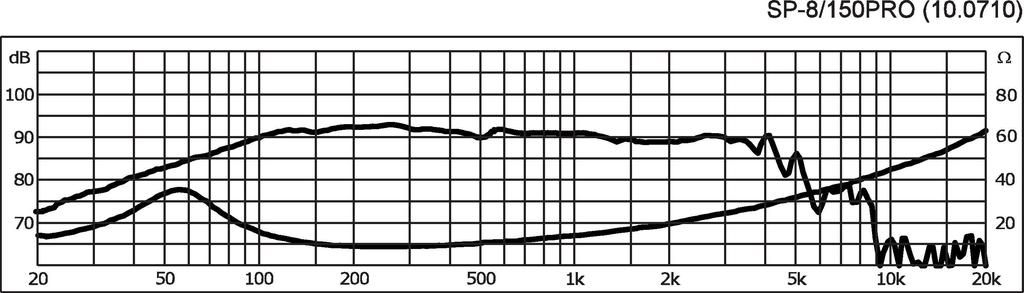

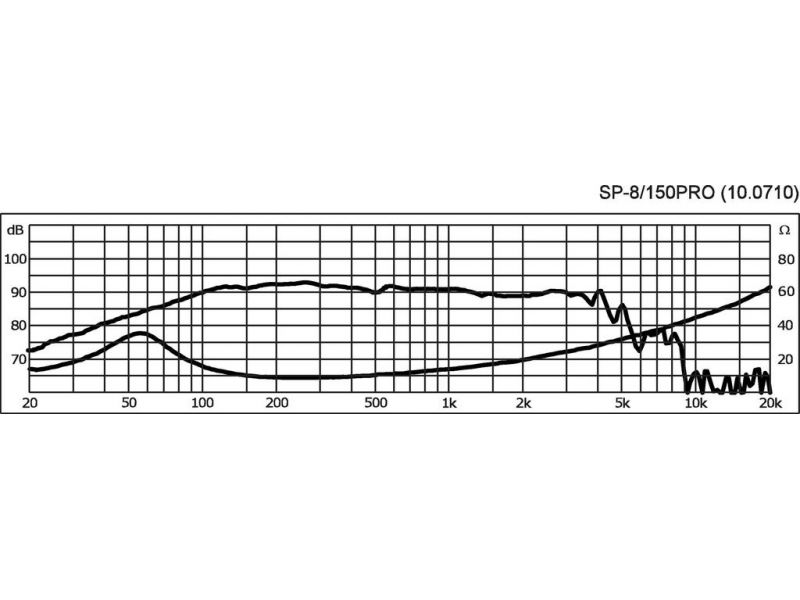

| Frequency range | f3-3,000 Hz |
| Resonant frequency (fs) | 56 Hz |
| Power rating (RMS) | 150 W |
| Peak music power output (MAX) | 300 W |
| SPL | 93 dB/W/m |
| Suspension compl. (Cms) | 0.35 mm/N |
| Moving mass (Mms) | 22.8 g |
| Mech. Q factor (Qms) | 1.52 |
| Electr. Q factor (Qes) | 0.41 |
| Total Q factor (Qts) | 0.32 |
| Equivalent volume (Vas) | 22 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 11.96 Tm |
| Voice coil induct. (Le) | 2.0 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 6 mm |
| Eff. cone area (Sd) | 213 cm2 |
| Magnet weight | 850 g |
| Magnet diameter | Ø 120 mm |

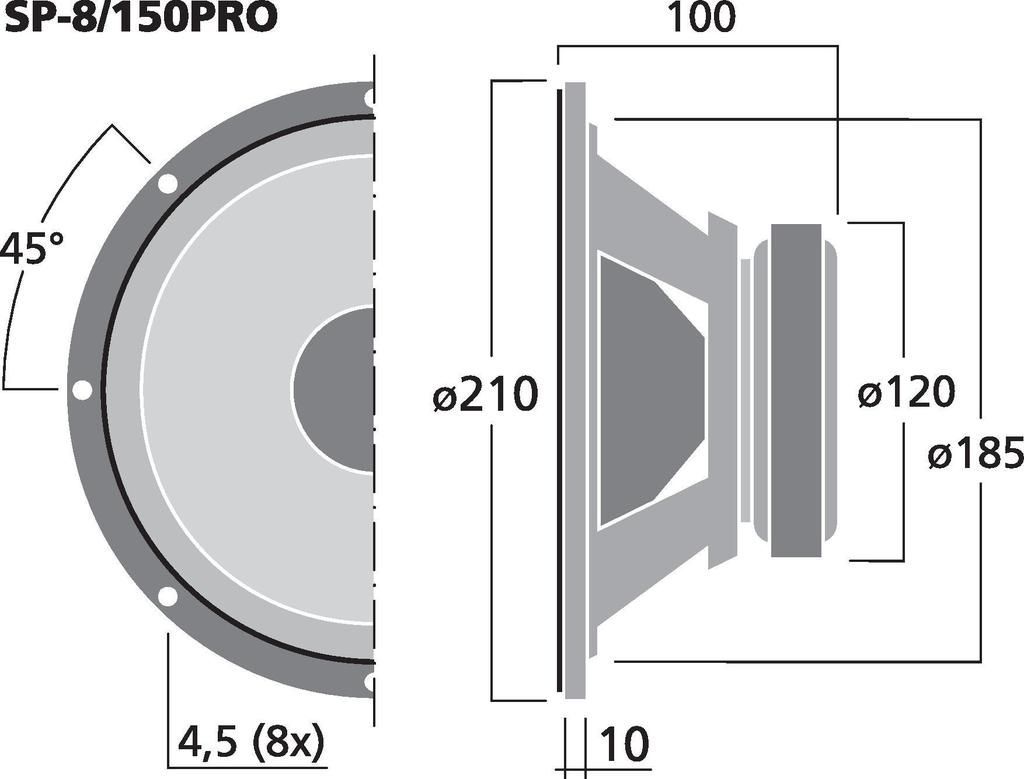

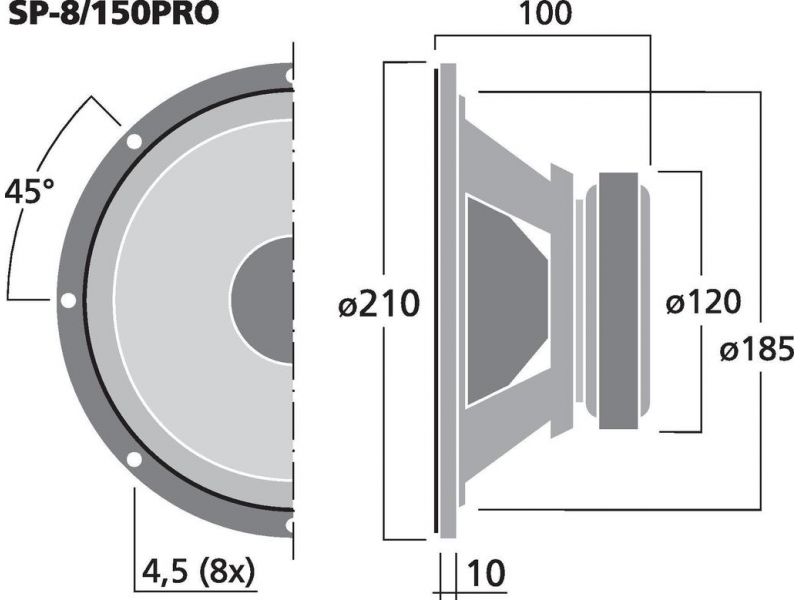

| Mounting cutout | Ø 185 mm |
| Mounting depth | 90 mm |
| Dimensions | Ø 210 mm x 100 mm |
| Outside diameter | Ø 210 mm |
| Width | Ø 210 mm |
| Height | Ø 210 mm |
| Depth | 100 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.52 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.235 x 0.14 x 0.235 m |
| Gross weight | 2.74 kg |
| Net weight | 2.52 kg |
