SPH-130

Cod EAN: 4007754025330

Hi-fi bass-midrange speaker, 55 W, 8 Ω Paper cone with special coating Rubber surround with optimised profile Extra wide and linear radiation range, free of resonance Perfect components for modern 2-way combinations up to DAppolito arrangements, also...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-130

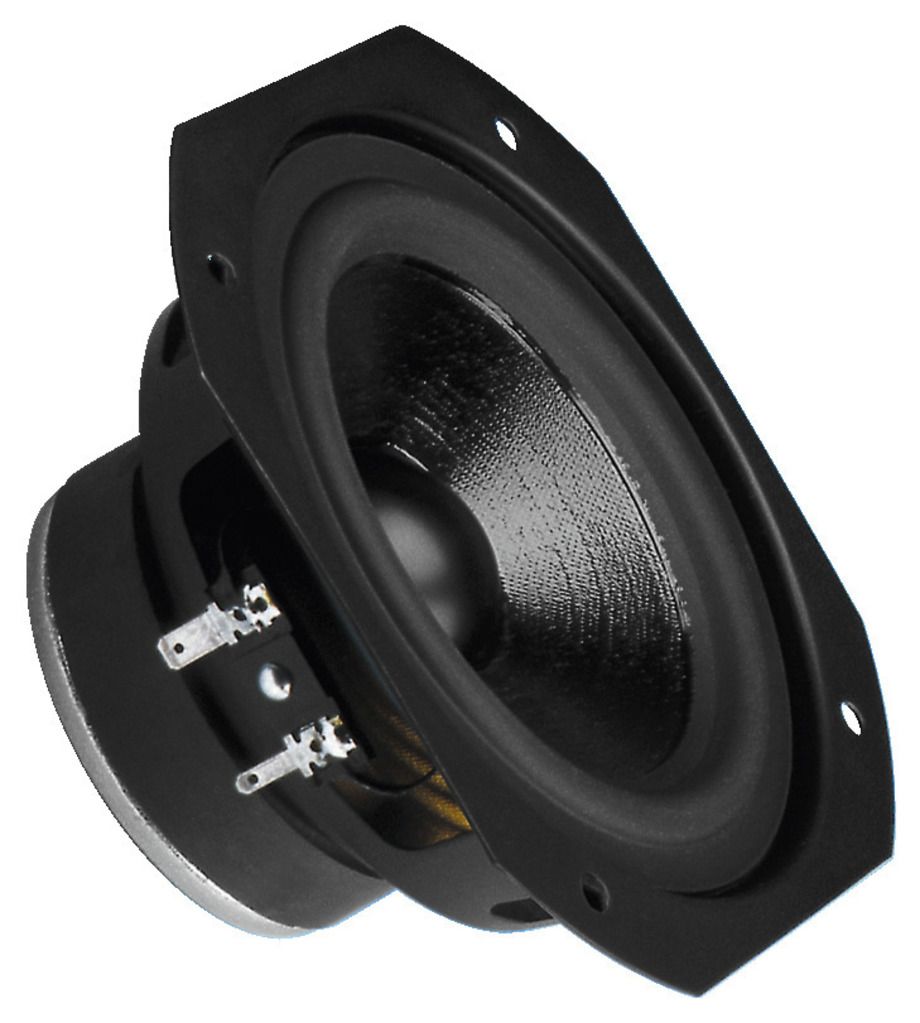

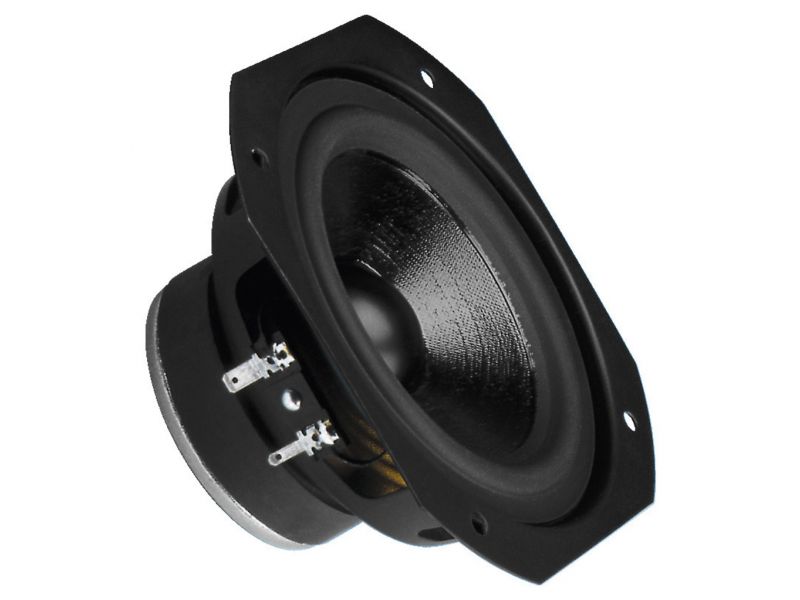

Hi-fi bass-midrange speaker, 55 W, 8 Ω
  • Paper cone with special coating
  • Rubber surround with optimised profile
  • Extra wide and linear radiation range, free of resonance
  • Perfect components for modern 2-way combinations up to DAppolito arrangements, also for use as a midrange speaker in multi-way speaker systems

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

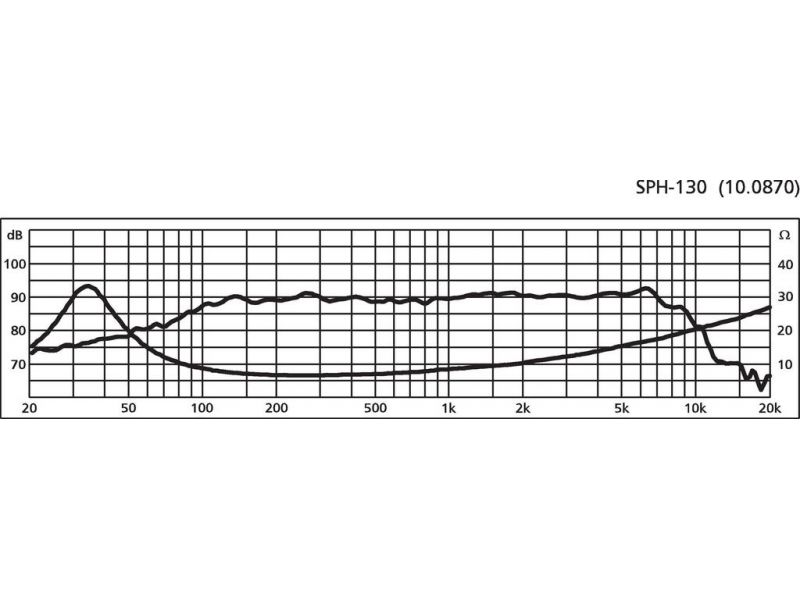

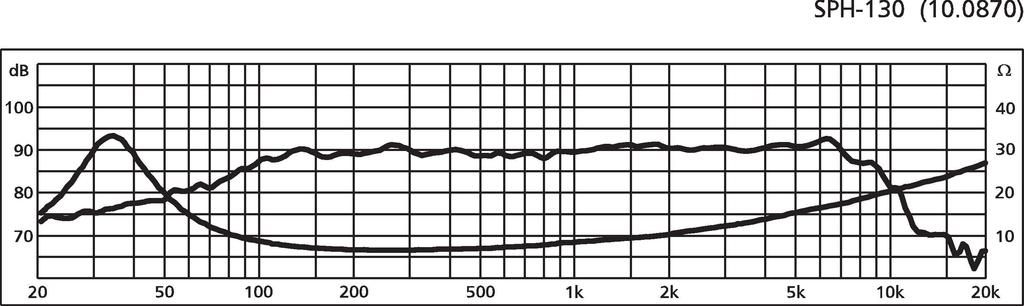

Frequency range f3-6,000 Hz
Resonant frequency (fs) 38 Hz
Power rating (RMS) 55 W
Peak music power output (MAX) 80 W
SPL 89 dB/W/m
Suspension compl. (Cms) 2.14 mm/N
Moving mass (Mms) 8.2 g
Mech. Q factor (Qms) 1.91
Electr. Q factor (Qes) 0.39
Total Q factor (Qts) 0.32
Equivalent volume (Vas) 22 l
DC resistance (Re) 5.7 Ω
Force factor (BxL) 5.40 Tm
Voice coil induct. (Le) 0.5 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2 mm
Eff. cone area (Sd) 80 cm2
Magnet weight 230 g
Magnet diameter Ø 72 mm

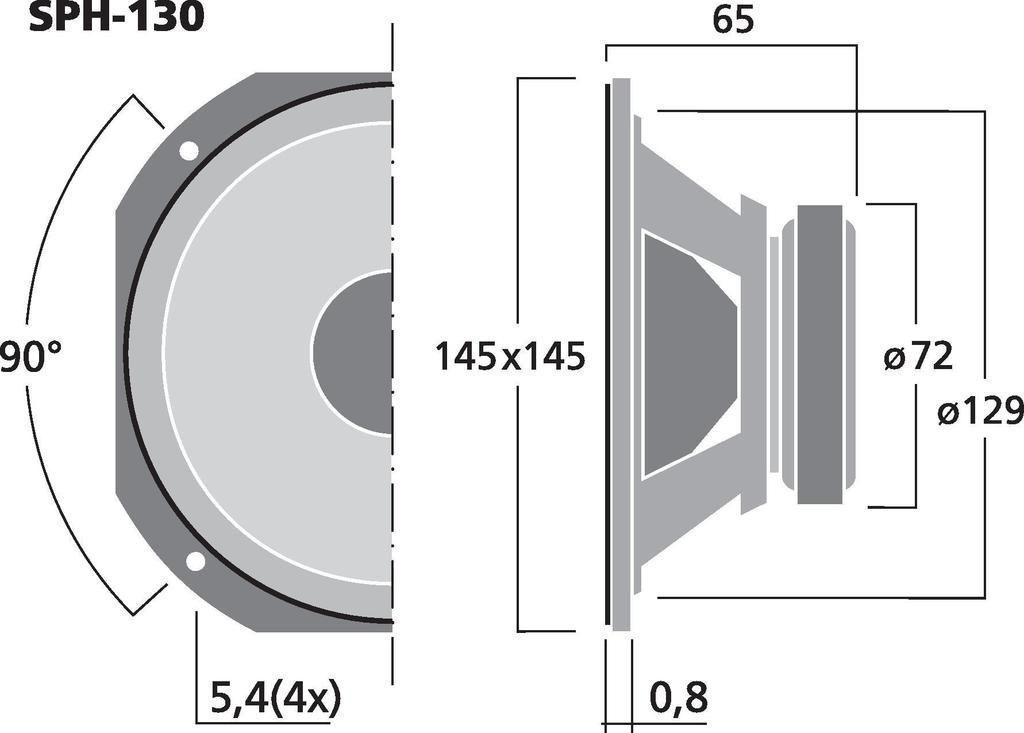

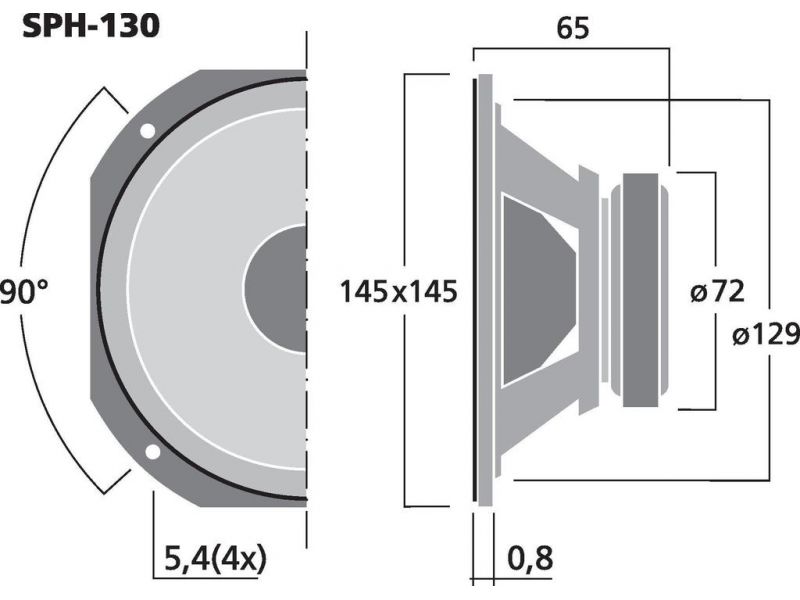

Mounting cutout Ø 129 mm
Mounting depth 64.2 mm
Dimensions 145 x 145 x 65 mm
Width 145 mm
Height 145 mm
Depth 65 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.755 kg
Packing unit 1
Type of speaker 5.5"
Packaging dimensions (W x H x L) 0.15 x 0.08 x 0.15 m
Gross weight 0.81 kg
Net weight 0.755 kg

Fisiere de descarcat

Fisa produsului SPH-130 konformitaetserklaerung-ce konformitaetserklaerung-ukca
