LS-280/SW

Cod EAN: 4007754182699

8-way line splitter 2 separate inputs Selectable operating modes: 1. input A to 4 outputs, input B to 4 outputs 2. input A to 8 outputs XLR connection and gain control for each input and output Dual LED for indicating signal and peak for the inpu...

Citeste mai mult

Intreaba despre produs
Cumpara acum


LS-280/SW

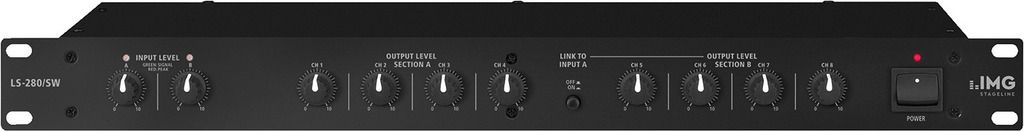

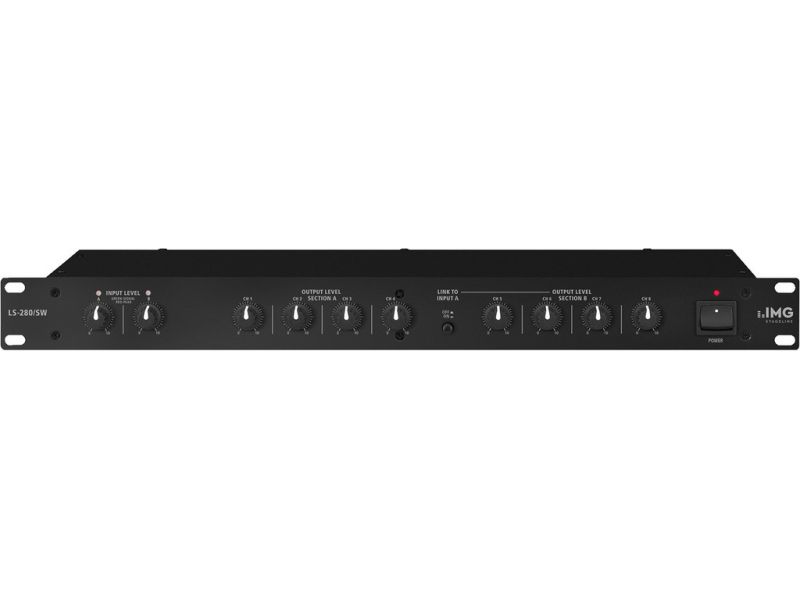

8-way line splitter
  • 2 separate inputs
  • Selectable operating modes:
  • 1. input A to 4 outputs,
  • input B to 4 outputs
  • 2. input A to 8 outputs

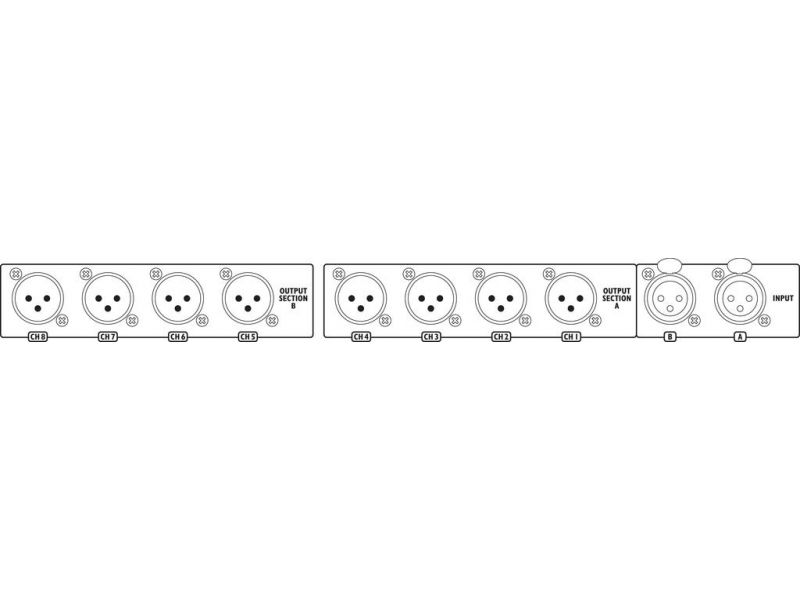

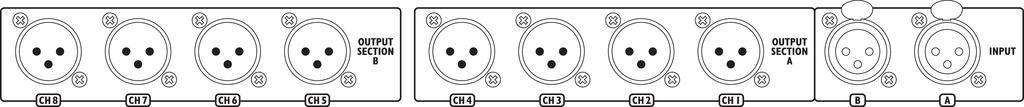

  • XLR connection and gain control for each input and output
  • Dual LED for indicating signal and peak for the inputs
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description splitter
Frequency range 20-20,000 Hz
Input signal 100 mV
Input impedance 15 kΩ
Output signal 1 V
Output impedance 100 Ω
S/N ratio 70 dB, unweighted
THD < 0.03%
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/10 VA
Dimensions 482 x 48 x 205 mm, 1 RU
Weight 2.3 kg
Inputs 2 x XLR
Outputs 8 x XLR

Fisiere de descarcat

Fisa produsului LS-280/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
