WDR-130-F-EN-10

Cod EAN: 4007754429534

PA ceiling loudspeaker with EN 54-24 certification. 100-volt transmission technology Speaker (13 cm) with high sound pressure and very good transmission range Moisture-protected speaker cone Fire pot Quick mounting device Metal housing with metal p...

Citeste mai mult

Intreaba despre produs
Cumpara acum

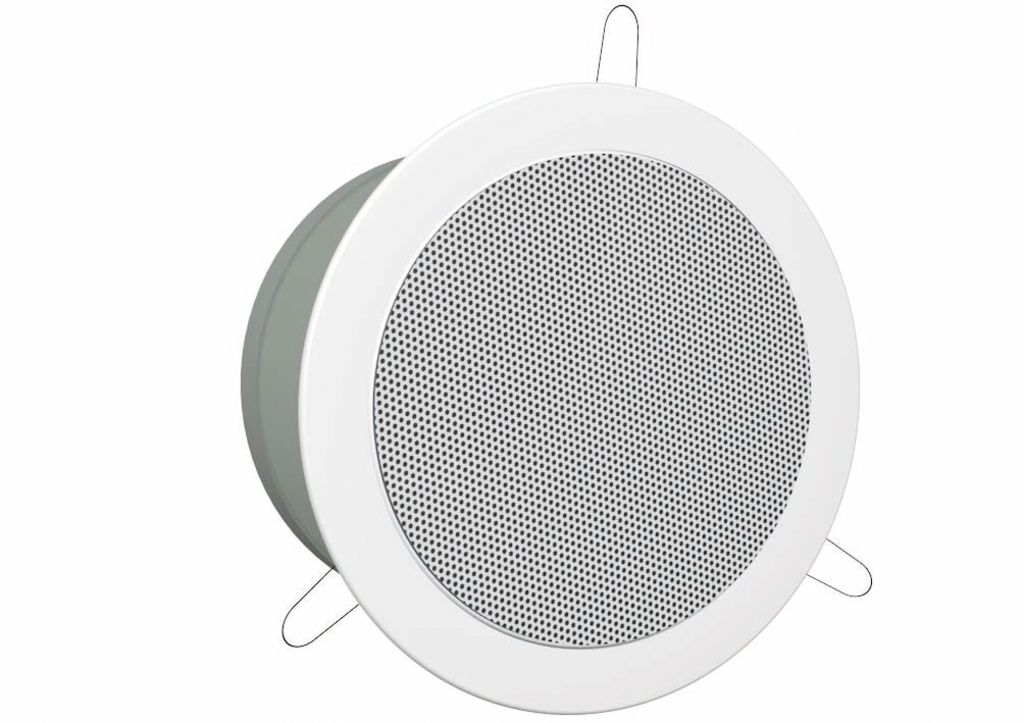

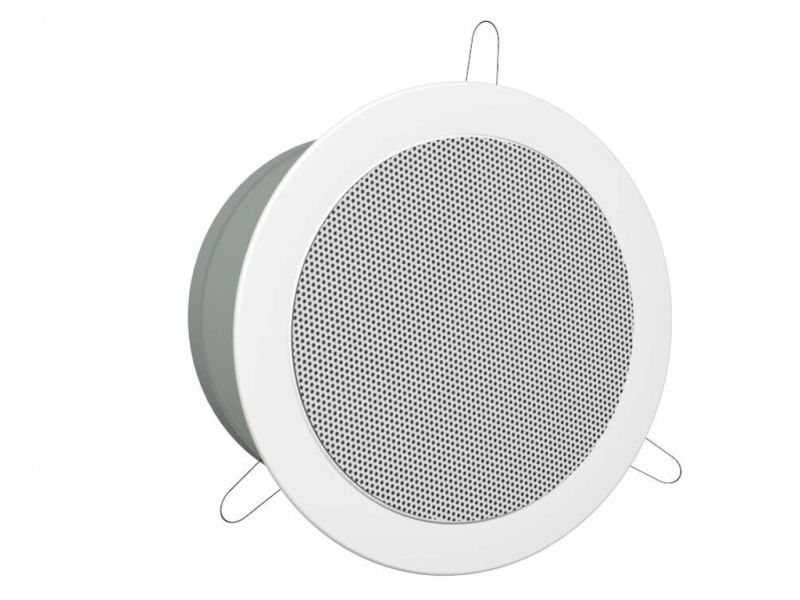

WDR-130-F-EN-10

PA ceiling loudspeaker
with EN 54-24 certification.
  • 100-volt transmission technology
  • Speaker (13 cm) with high sound pressure and very good transmission range
  • Moisture-protected speaker cone
  • Fire pot
  • Quick mounting device
  • Metal housing with metal protective grille
  • 3 power taps via WAGO terminal
  • Ball impact resistance test according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Transmission technology 100 V
Frequency range 80-19,000 Hz
Power rating (RMS) 10/5/2.5 W
SPL 93 dB (1 W/1 m) 78 dB (EN, 1 W/4 m)
Max. rated SPL 103 dB (1 m) 88 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 155° (2 kHz) 76° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 155° (2 kHz) 76° (4 kHz)
Mounting cutout Ø 140-150 mm
Dimensions Ø 167 mm x 90 mm
Outside diameter Ø 167 mm
Width Ø 167 mm
Height Ø 167 mm
Depth 90 mm
Colour white, RAL 9010
Protective class IP54
Weight 1.1 kg
Packing unit 1
Type of speaker 130
Packaging dimensions (W x H x L) 0.187 x 0.187 x 0.090 m
Gross weight 1.2 kg
Net weight 1.1 kg

Fisiere de descarcat

Fisa produsului WDR-130-F-EN-10
