SPH-170

Cod EAN: 4007754073744

Hi-fi bass-midrange speaker, 50 W, 8 Ω Speaker of very high quality with extensive equipment Round aluminium diecast basket with recessed screw head holes Inverse rubber surround Drilled pole core Cone with excellent damping Exceptionally deep bass r...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPH-170

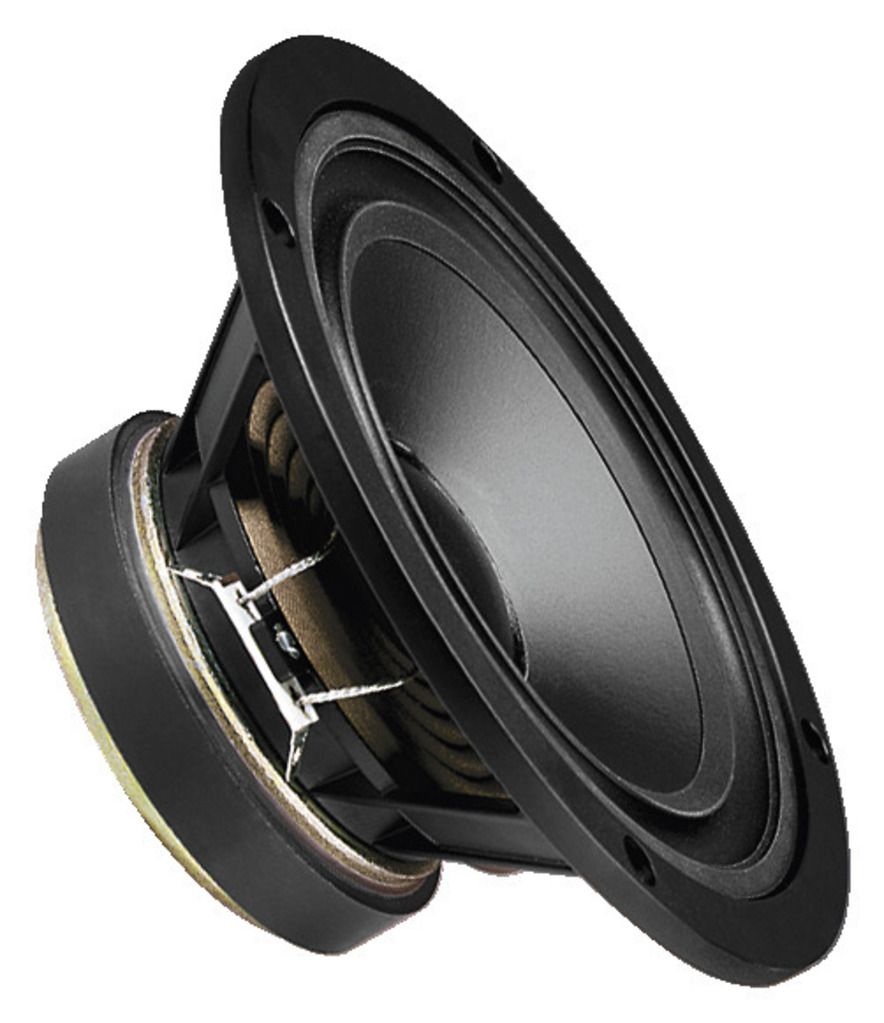

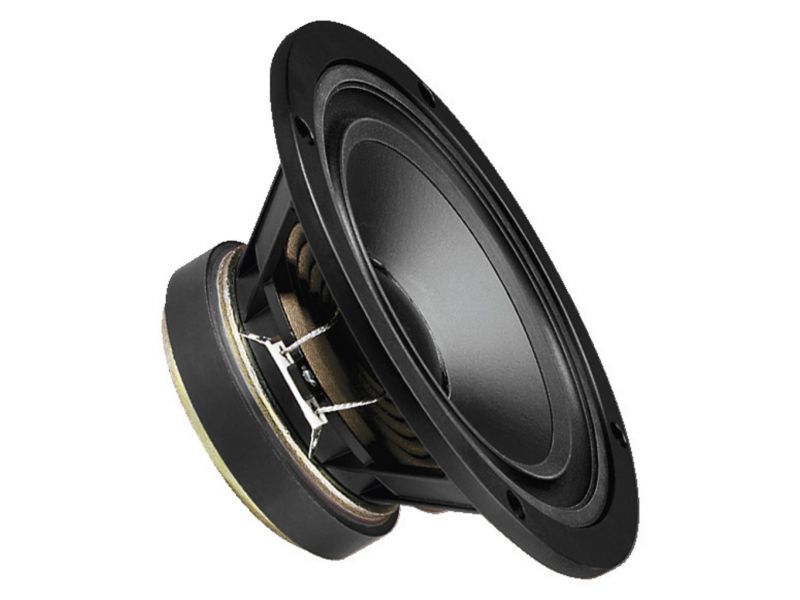

Hi-fi bass-midrange speaker, 50 W, 8 Ω
  • Speaker of very high quality with extensive equipment
  • Round aluminium diecast basket with recessed screw head holes
  • Inverse rubber surround
  • Drilled pole core
  • Cone with excellent damping
  • Exceptionally deep bass reproduction for any bass and bass-midrange application
HOBBY HiFi 04/2017

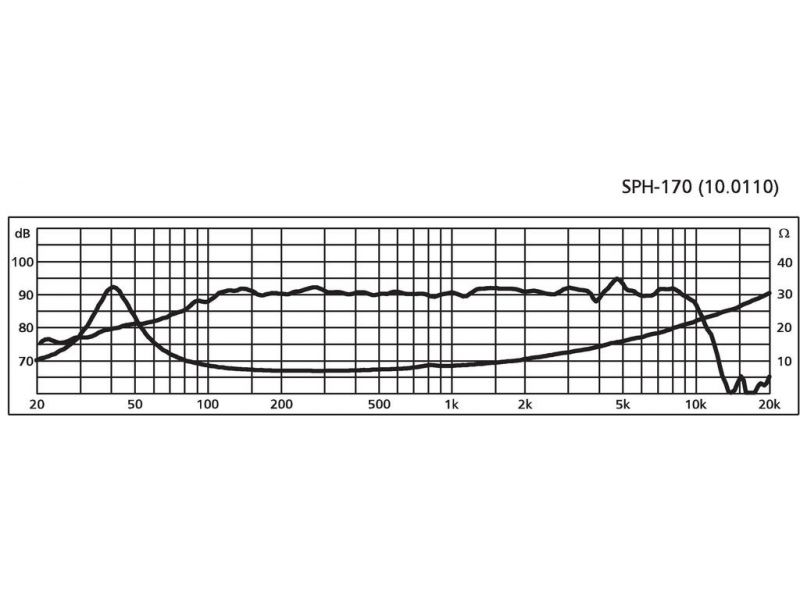

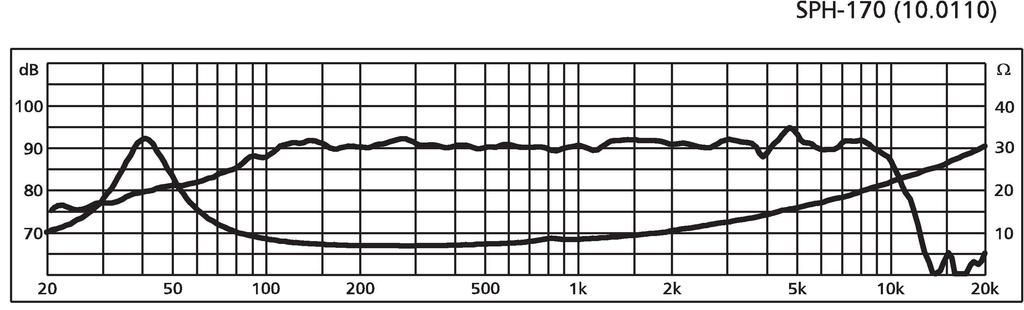

“Incredibly linear and wideband sound pressure frequency response. The ideal speaker for high-quality 2-way systems.”

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-5,000 Hz
Resonant frequency (fs) 38 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 80 W
SPL 90 dB/W/m
Suspension compl. (Cms) 1.43 mm/N
Moving mass (Mms) 12.5 g
Mech. Q factor (Qms) 2.38
Electr. Q factor (Qes) 0.55
Total Q factor (Qts) 0.44
Equivalent volume (Vas) 37 l
DC resistance (Re) 6.2 Ω
Force factor (BxL) 5.90 Tm
Voice coil induct. (Le) 0.45 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 137 cm2
Magnet weight 370 g
Magnet diameter Ø 100 mm

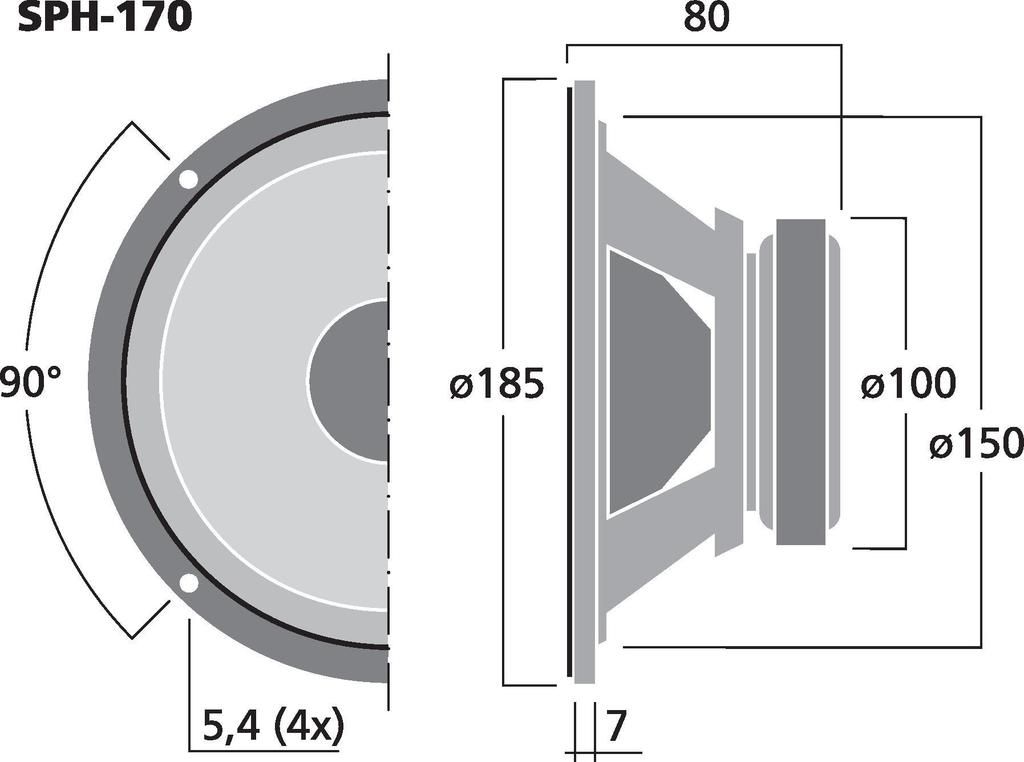

Mounting cutout Ø 150 mm
Mounting depth 73 mm
Dimensions Ø 185 mm x 80 mm
Outside diameter Ø 185 mm
Width Ø 185 mm
Height Ø 185 mm
Depth 80 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.3 kg
Packing unit 1
Type of speaker 6.75"
Packaging dimensions (W x H x L) 0.195 x 0.09 x 0.195 m
Gross weight 1.42 kg
Net weight 1.3 kg

Fisiere de descarcat

Fisa produsului SPH-170 konformitaetserklaerung-ce konformitaetserklaerung-ukca
