SPH-170C
Cod EAN: 4007754157635
High-end bass-midrange speaker, 60 W, 8 Ω Cone with excellent damping Extra long excursion Low distortion Particularly natural reproduction Very low limit frequency Ideally suited as a bass-midrange speaker in 2-way combinations but only requires sma...

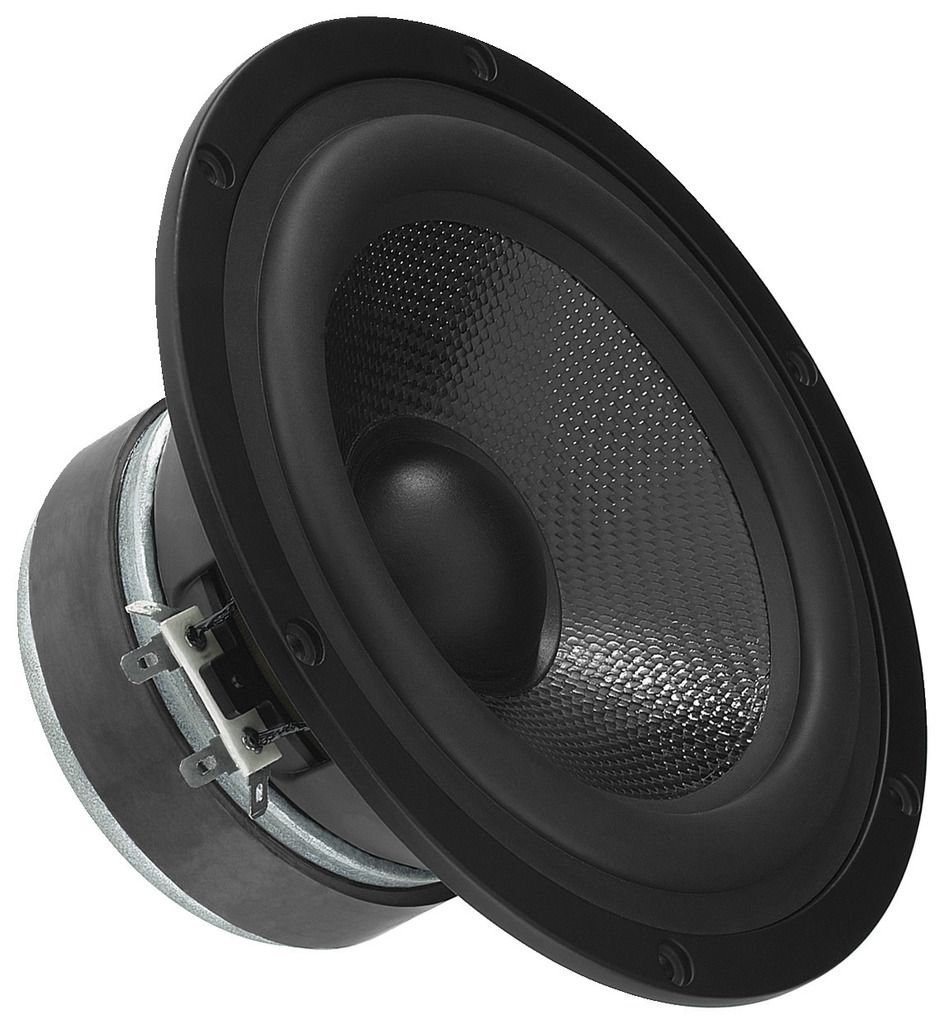

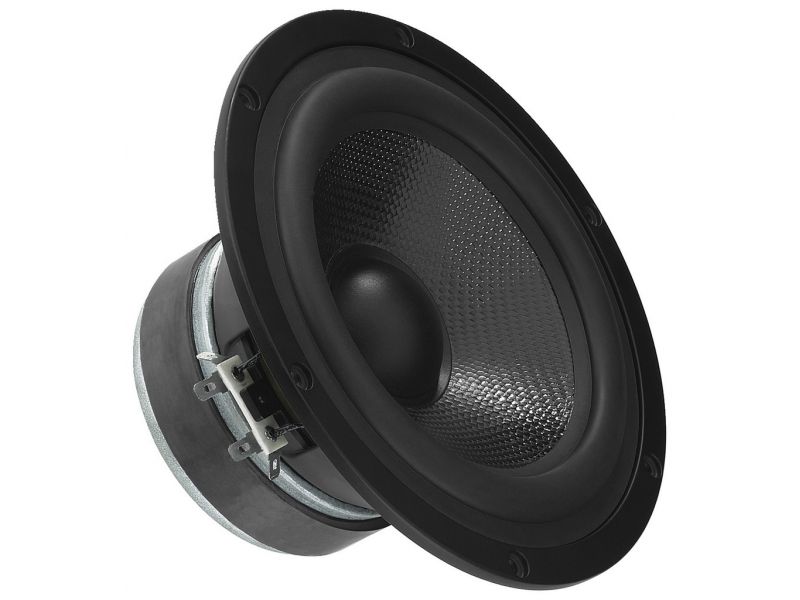

SPH-170C
High-end bass-midrange speaker, 60 W, 8 Ω
- Cone with excellent damping
- Extra long excursion
- Low distortion
- Particularly natural reproduction
- Very low limit frequency
- Ideally suited as a bass-midrange speaker in 2-way combinations but only requires small volumes
HOBBY HiFi 02/2012
“Ideally suited for smaller bookshelf speaker systems. With the SPH-170C, MONACOR offers a bass-midrange speaker of very neat workmanship which impresses by a particularly high-quality design.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

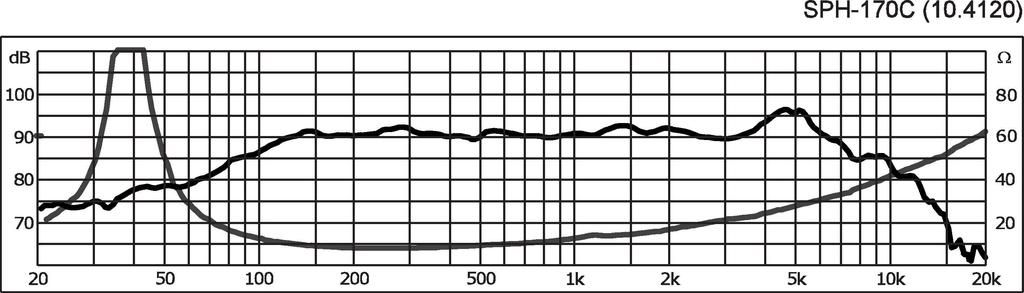

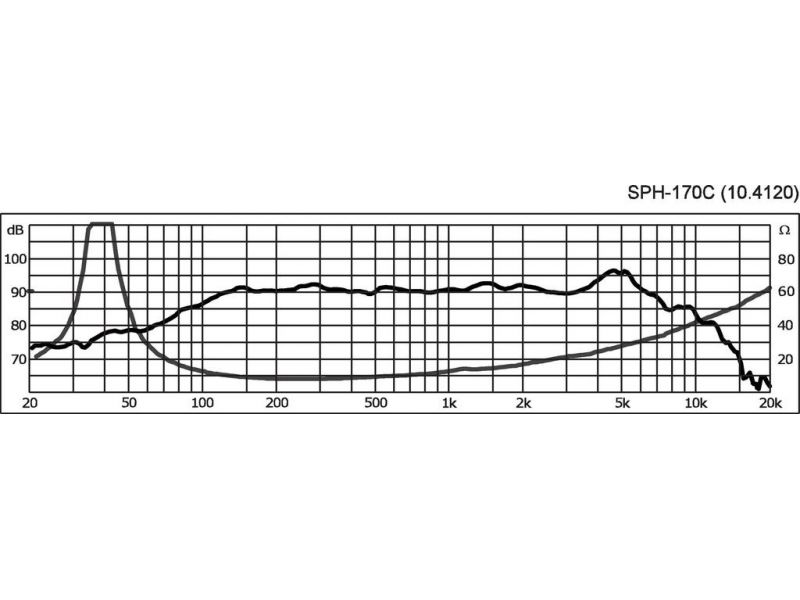

| Frequency range | f3-3,500 Hz |
| Resonant frequency (fs) | 38 Hz |
| Power rating (RMS) | 60 W |
| Peak music power output (MAX) | 120 W |
| SPL | 88 dB/W/m |
| Suspension compl. (Cms) | 1.06 mm/N |
| Moving mass (Mms) | 16.43 g |
| Mech. Q factor (Qms) | 7.22 |
| Electr. Q factor (Qes) | 0.27 |
| Total Q factor (Qts) | 0.26 |
| Equivalent volume (Vas) | 24 l |
| DC resistance (Re) | 6 Ω |
| Force factor (BxL) | 9.44 Tm |
| Voice coil induct. (Le) | 0.8 mH |

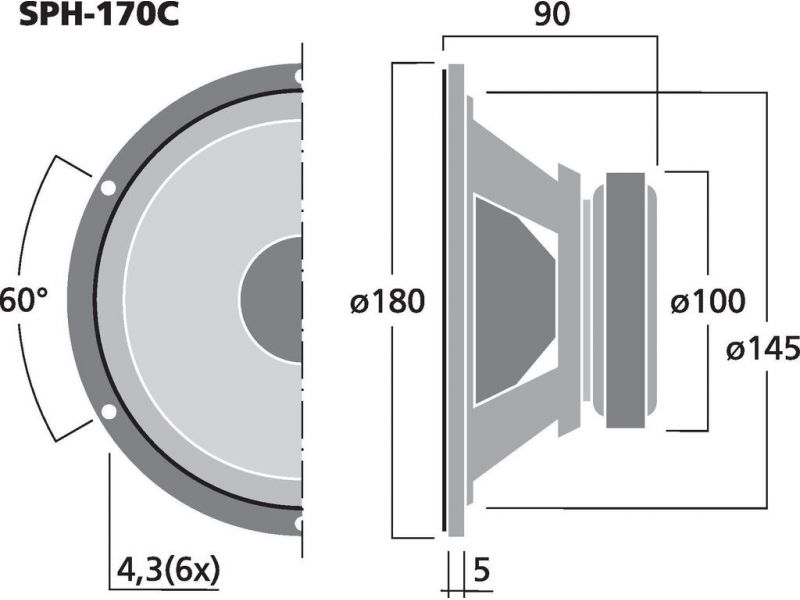

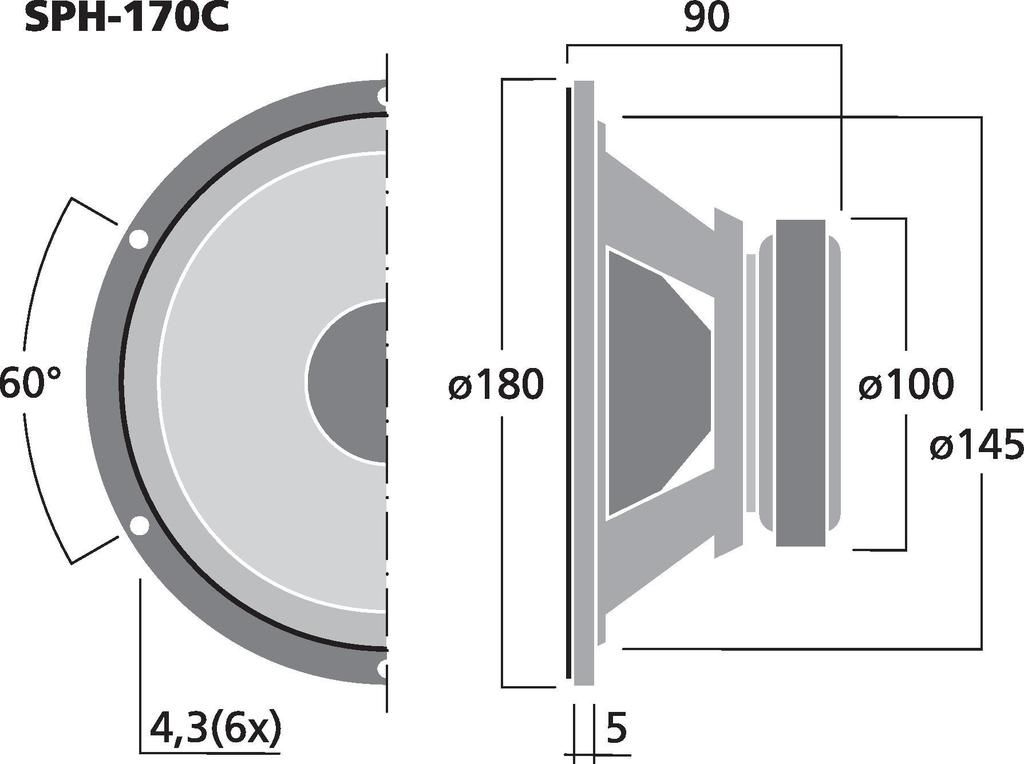

| Voice coil diameter | Ø 37 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 127 cm2 |
| Magnet weight | 600 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 145 mm |
| Mounting depth | 85 mm |
| Dimensions | Ø 180 mm x 90 mm |
| Outside diameter | Ø 180 mm |
| Width | Ø 180 mm |
| Height | Ø 180 mm |
| Depth | 90 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.99 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.2 x 0.135 x 0.2 m |
| Gross weight | 2.235 kg |
| Net weight | 1.99 kg |
