TG-98TA/5
Cod EAN: 4007754248944
Professional PLL Tour Guide System Bandwidth: 36 MHz 6 groups with up to 22 channels 124 channels 506-542 MHz Operating range: up to 200 m Operating time: approx. 10 hours There are restrictions or requirements within the EU! Professional PLL po...
TG-98TA/5
Professional PLL Tour Guide System
- Bandwidth: 36 MHz
- 6 groups with up to 22 channels
- 124 channels
- 506-542 MHz
- Operating range: up to 200 m
- Operating time: approx. 10 hours
- There are restrictions or requirements within the EU!

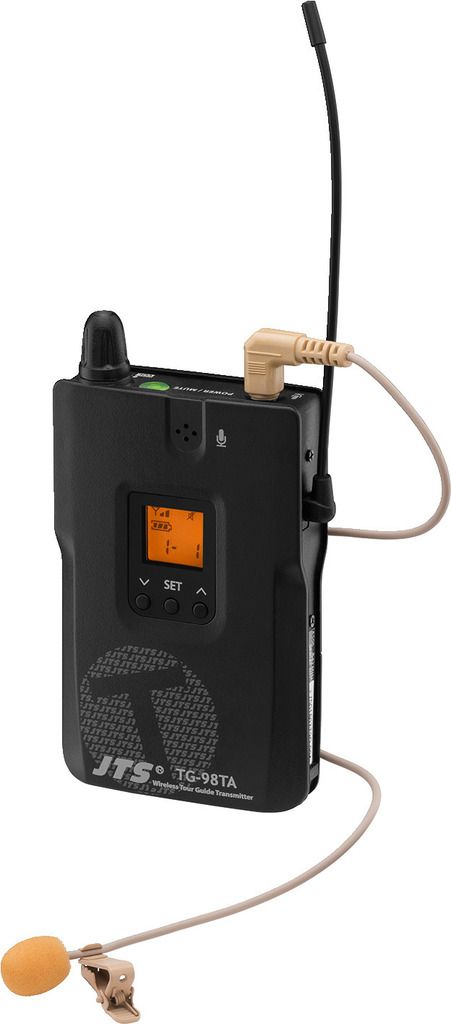

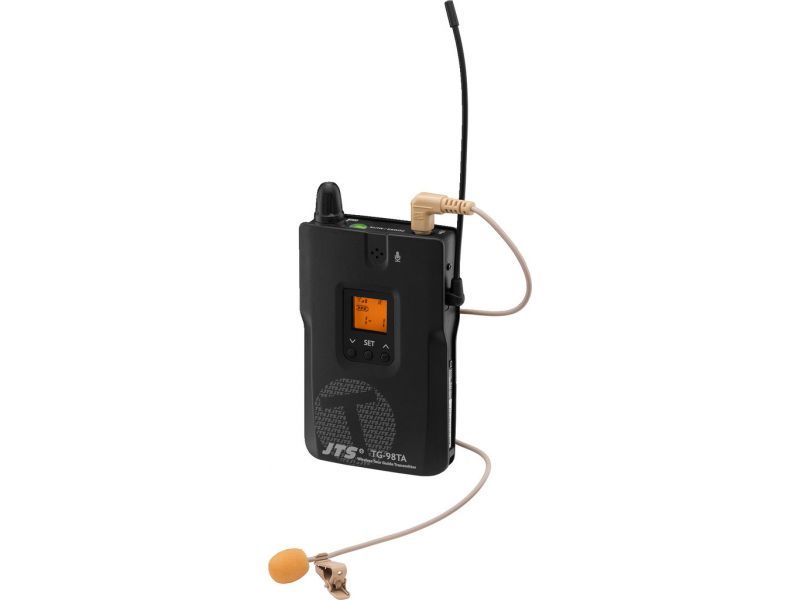

Professional PLL pocket transmitter
- Built-in electret microphone
- 3.5 mm microphone connection
- Supplied with matching electret tie clip microphone
- Audio input via 3.5 mm jack
- LCD for indicating channel/group, RF, mute and battery status
- Lock function
- Mute function
- Volume level control
- Selectable transmitting power
- Belt clip and lanyard
- Parallel operation possible of up to 22 transmitters max.
- Connection cable 801TG with 3.5 mm plug is available at option for certain JTS headband microphones
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | tour guide system pocket transmitter |
| Carrier frequency range | 506-542 MHz |
| Audio frequency range | 40-18,000 Hz |
| Channels | 1 |
| Operating time | > 10 h |
| Admiss. ambient temp. | 0-40 °C |
| Operating range | 200 m |
| Power supply transmitter | 2 x 1.2 V NiMH rech. batt. AA size (not supplied) |
| Width transmitter | 62 mm |
| Height transmitter | 112 mm |
| Depth transmitter | 28 mm |
| Weight transmitter | 72 g |
| Connections transmitter | 1 x 3.5 mm jack (microphone), 1 x 3.5 mm jack (audio input) |
