TR-3-4

Cod EAN: 4007754430097

Compact weatherproof horn speaker, 4 Ω, for speech and alarm applications Very high sound pressure (100 dB/1 W/1 m) IP69k certified, suitable for use in trains, fire engines and call stations Light grey PC/ABS housing (self-extinguishing, complies...

Citeste mai mult

Intreaba despre produs
Cumpara acum


TR-3-4

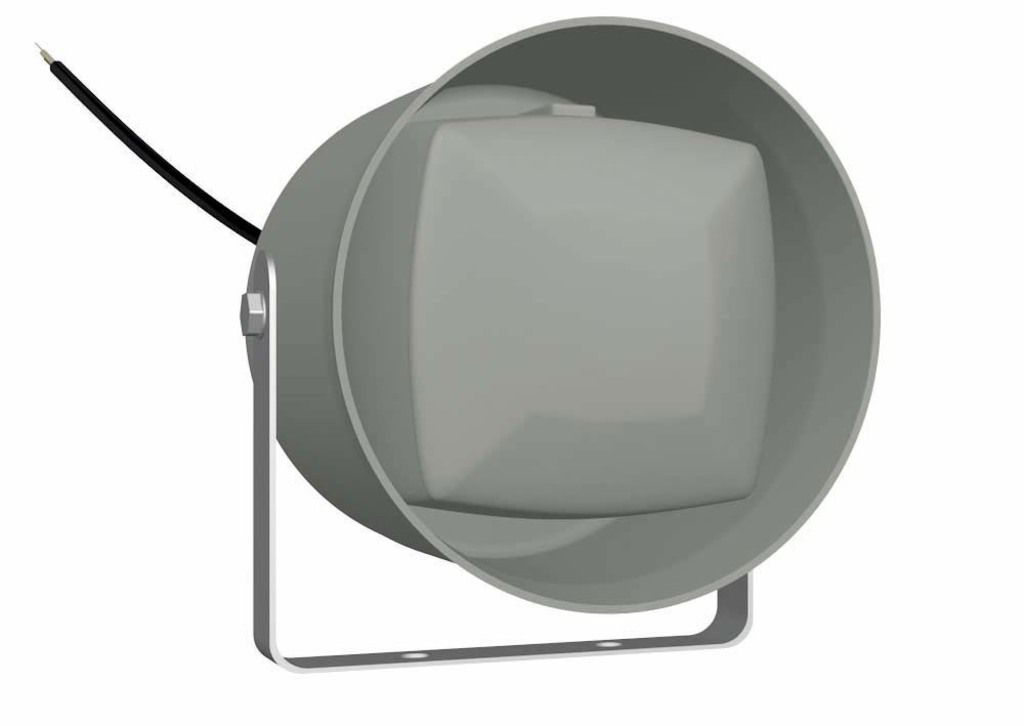

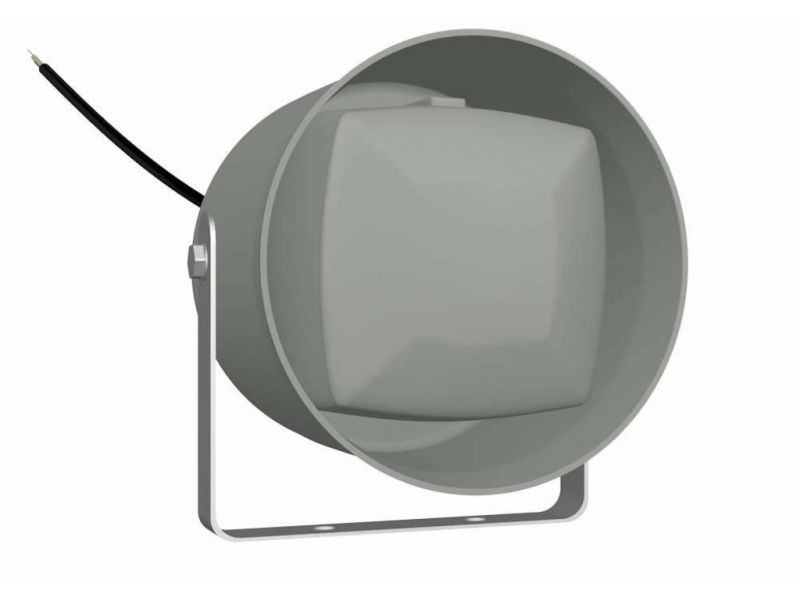

Compact weatherproof horn speaker, 4 Ω,
for speech and alarm applications
  • Very high sound pressure (100 dB/1 W/1 m)
  • IP69k certified, suitable for use in trains, fire engines and call stations
  • Light grey PC/ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Connection via 2-core cable (length 0.6 m)
  • Mounting bracket included
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology cable
Power rating (RMS) 10 W
Impedance 4 Ω
Frequency range 250-20,000 Hz
Number of speakers 1
SPL 100 dB/W/m
Max. rated SPL 109 dB
Radiation angle/beam angle 150°
Radiation angle, horizontal 150°
Radiation angle, vertical 150°
Housing material PC/ABS
Colour light grey, RAL 7035
Mounting device mounting bracket
Protection class IP69K
Admiss. ambient temp. -40 °C to +110 °C
Dimensions Ø 97 mm x 102 mm
Width Ø 97 mm
Height Ø 97 mm
Depth 102 mm
Weight 0.5 kg
Inputs cable connection
Other features weatherproof
Packaging dimensions (W x H x L) 0.14 x 0.14 x 0.1 m
Gross weight 0.6 kg
Net weight 0.5 kg

Fisiere de descarcat

Fisa produsului TR-3-4
