TS-C20-500/T

Cod EAN: 4007754263923

Weatherproof PA column speaker, with EN 54-24 certification. 100 V line technique 4 x 7.7 cm (3") waterproof full range speaker 4 power taps: 20/15/10/5 W Connection via ceramic terminals with thermal fuse in the cabinet 2 x PG9 cable gland Robust,...

Citeste mai mult



TS-C20-500/T

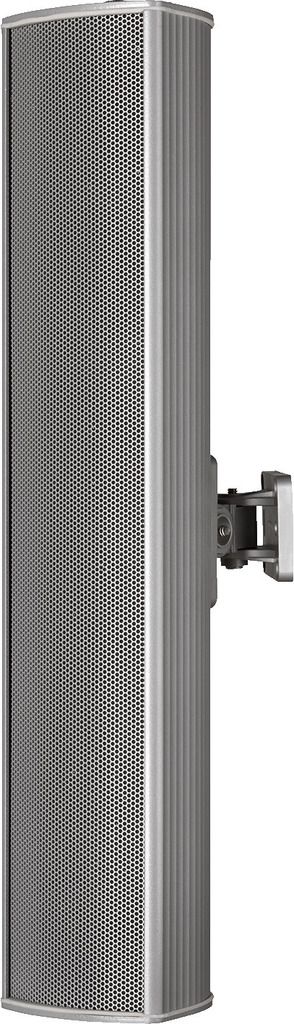

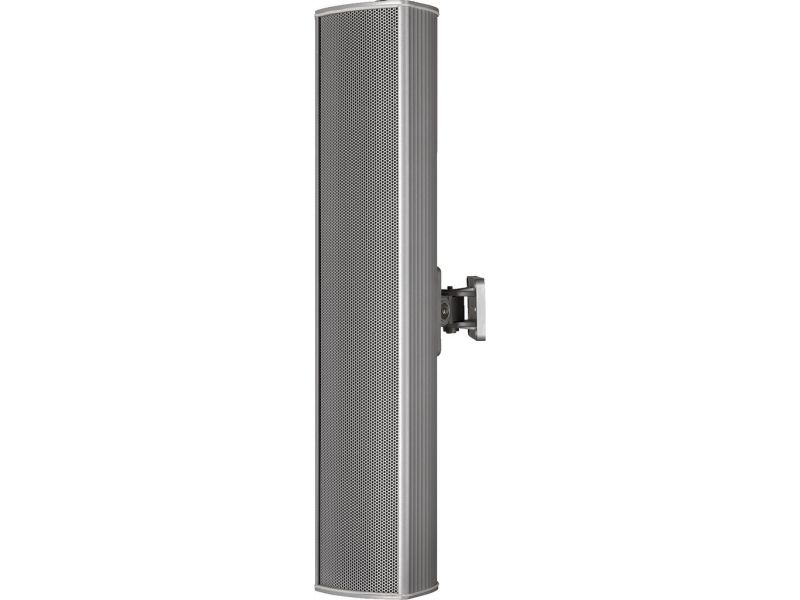

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V line technique
  • 4 x 7.7 cm (3") waterproof full range speaker
  • 4 power taps: 20/15/10/5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting

Parametrii

Active/passive passive
Transmission technology 100 V
Power rating (RMS) 20/15/10/5 W

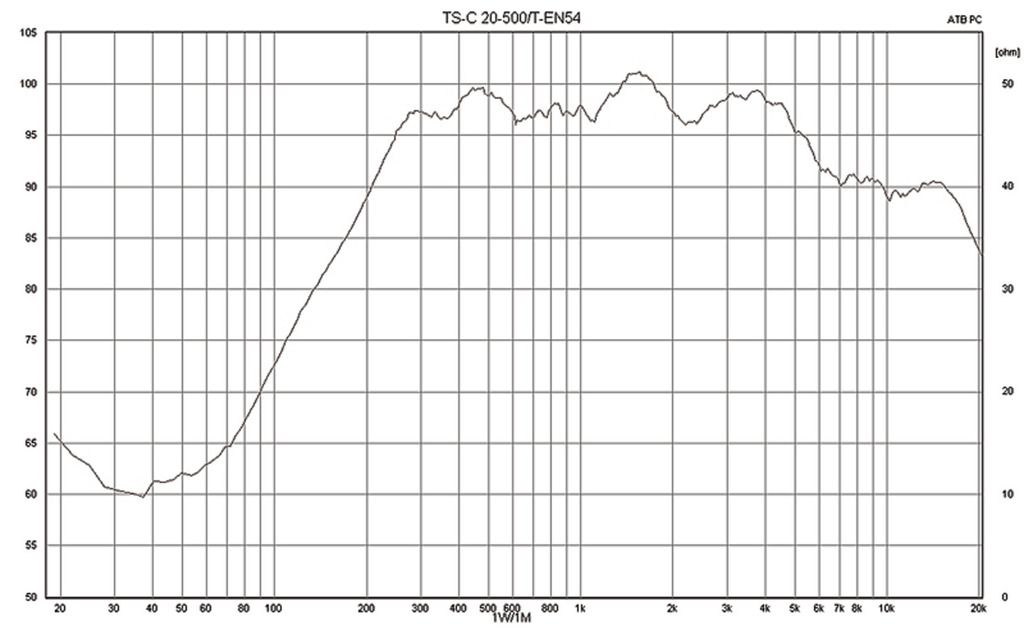

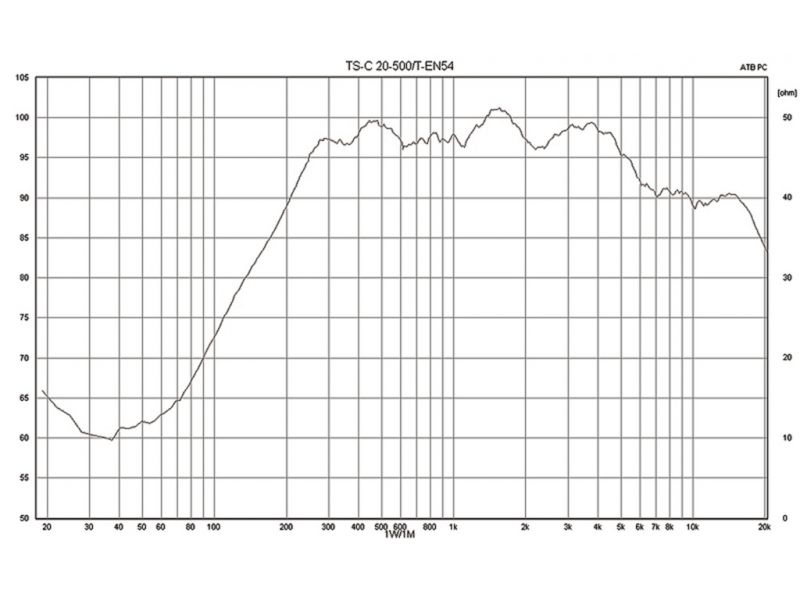

Frequency range 200-17,000 Hz
Full range speaker 4 x 77 mm
Number of speakers 4
SPL 97 dB/W/m
Max. rated SPL 109 dB

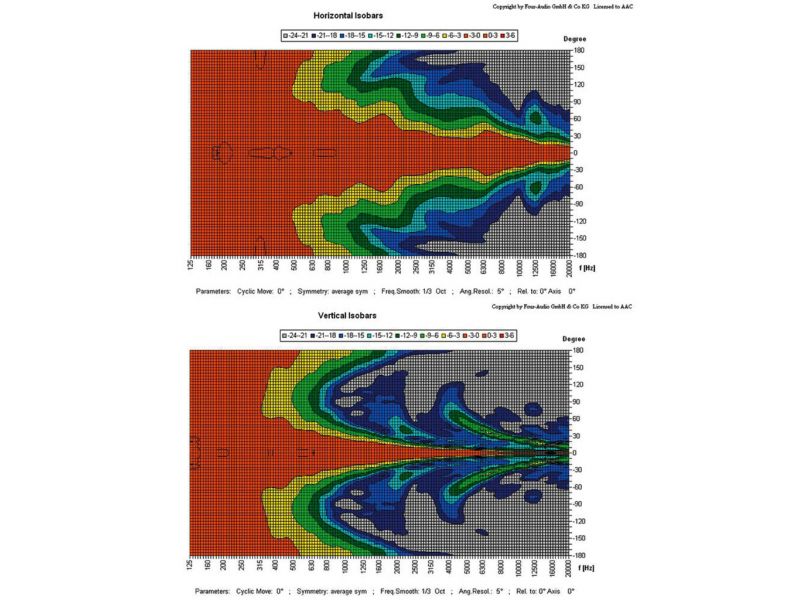

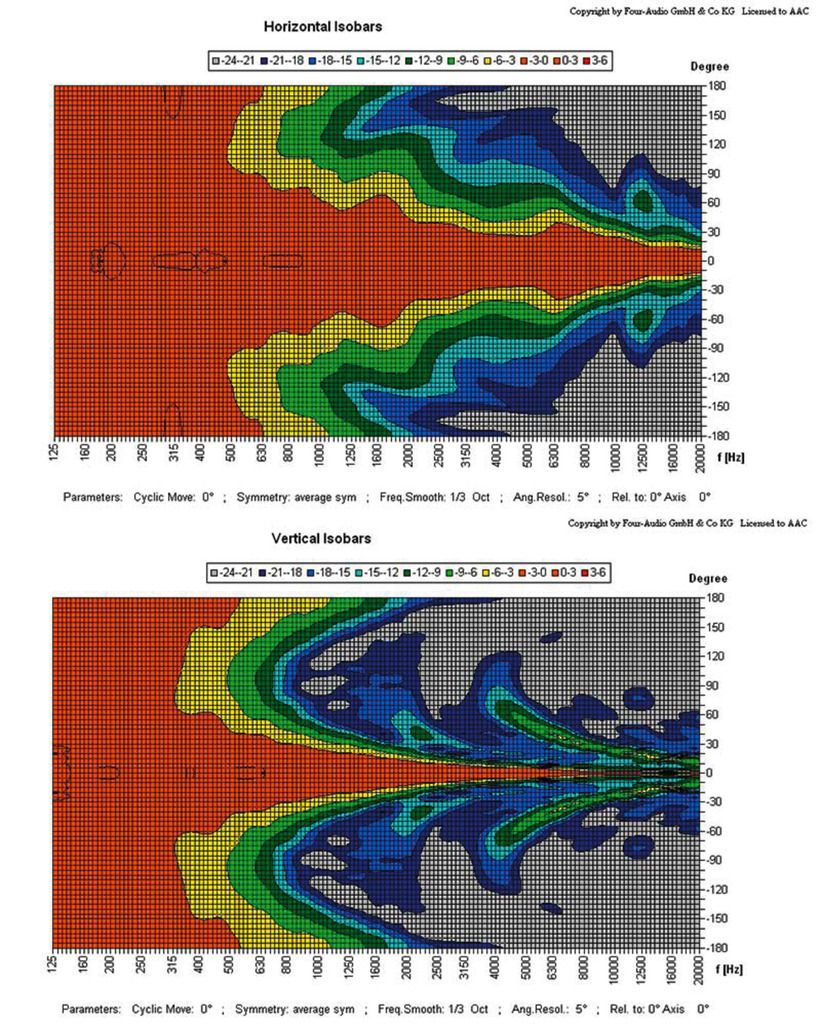

Radiation angle/beam angle H: 149°/V: 38°
Radiation angle, horizontal 149°
Radiation angle, vertical 38°
Housing material aluminium
Colour white aluminium, RAL 9006
Mounting device wall bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions 100 x 510 x 92 mm
Width 100 mm
Height 510 mm
Depth 92 mm
Weight 2.8 kg
Packing dimensions (W x H x L) 0.18 x 0.2 x 0.6 m
Gross weight 3.3 kg
Net weight 2.83 kg
