TS-C30-700/T

Cod EAN: 4260590180506

Weatherproof PA column speaker, with EN 54-24 certification. 100 V line technique 6 x 7.7 cm (3") waterproof full range speaker 3 power taps: 30/15/7.5 W Connection via ceramic terminals with thermal fuse in the cabinet 2 x PG9 cable gland Robust,...

Citeste mai mult

Intreaba despre produs
Cumpara acum

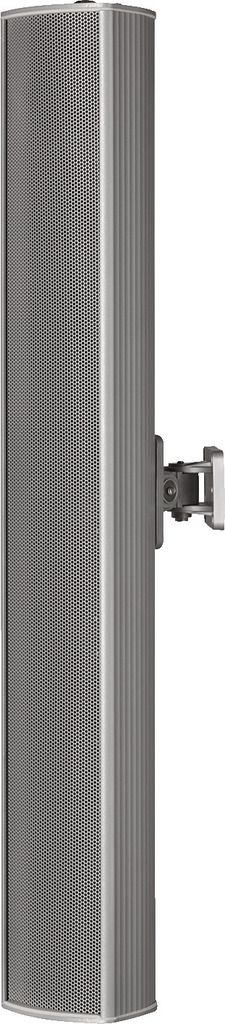

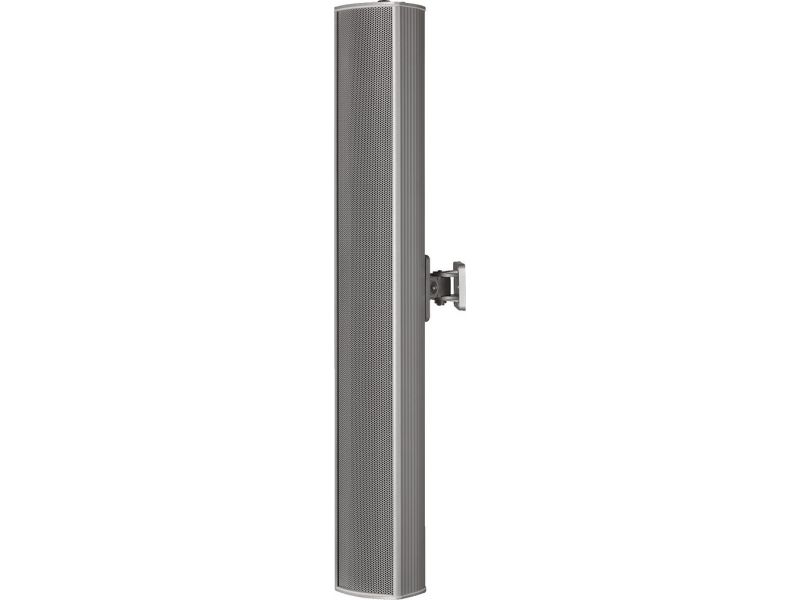

TS-C30-700/T

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V line technique
  • 6 x 7.7 cm (3") waterproof full range speaker
  • 3 power taps: 30/15/7.5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 30 W
Power rating (RMS) 30/15/7.5 W

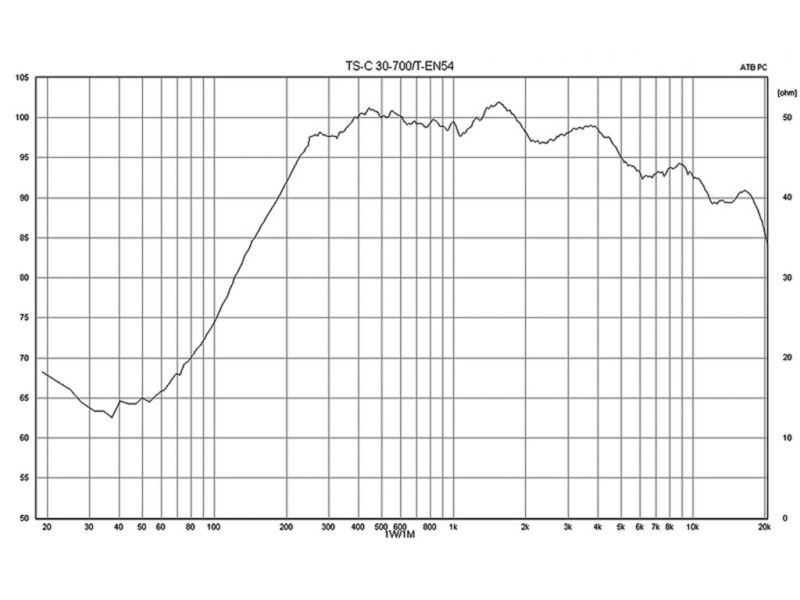

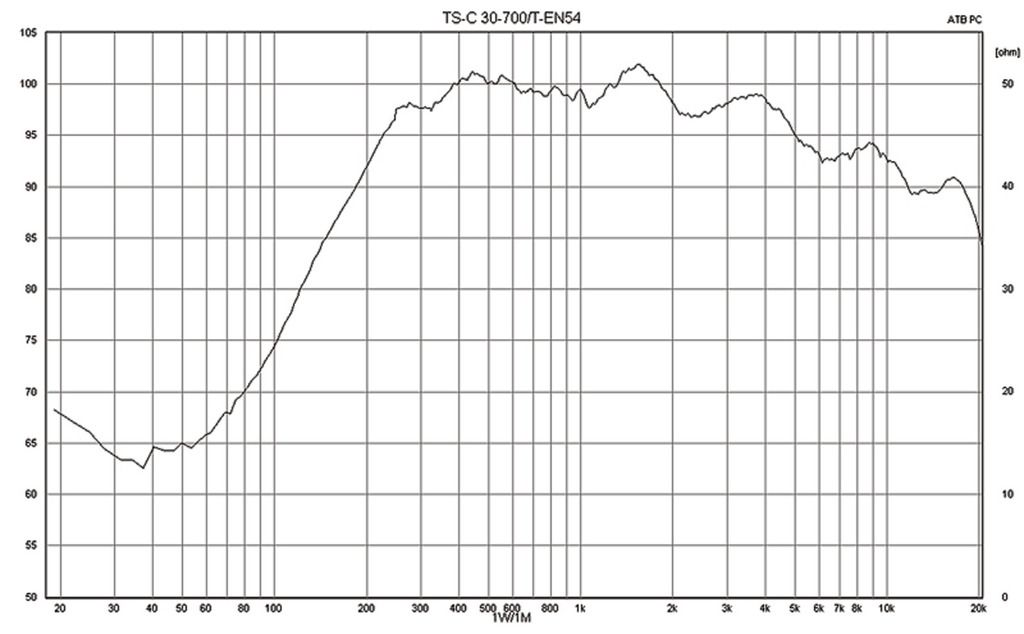

Frequency range 200-17,000 Hz
Full range speaker 6 x 77 mm
Number of speakers 6
Speaker size 7.5 cm (3")
SPL 97 dB/W/m
Max. rated SPL 109 dB

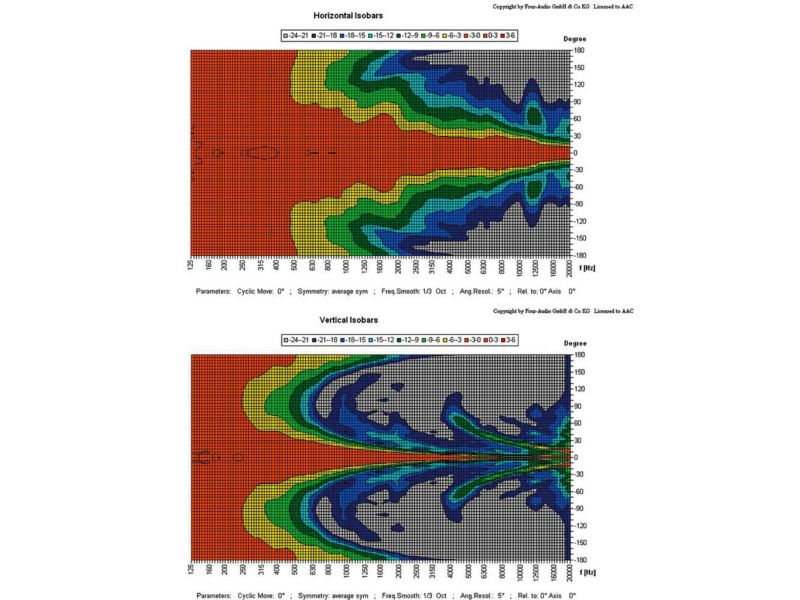

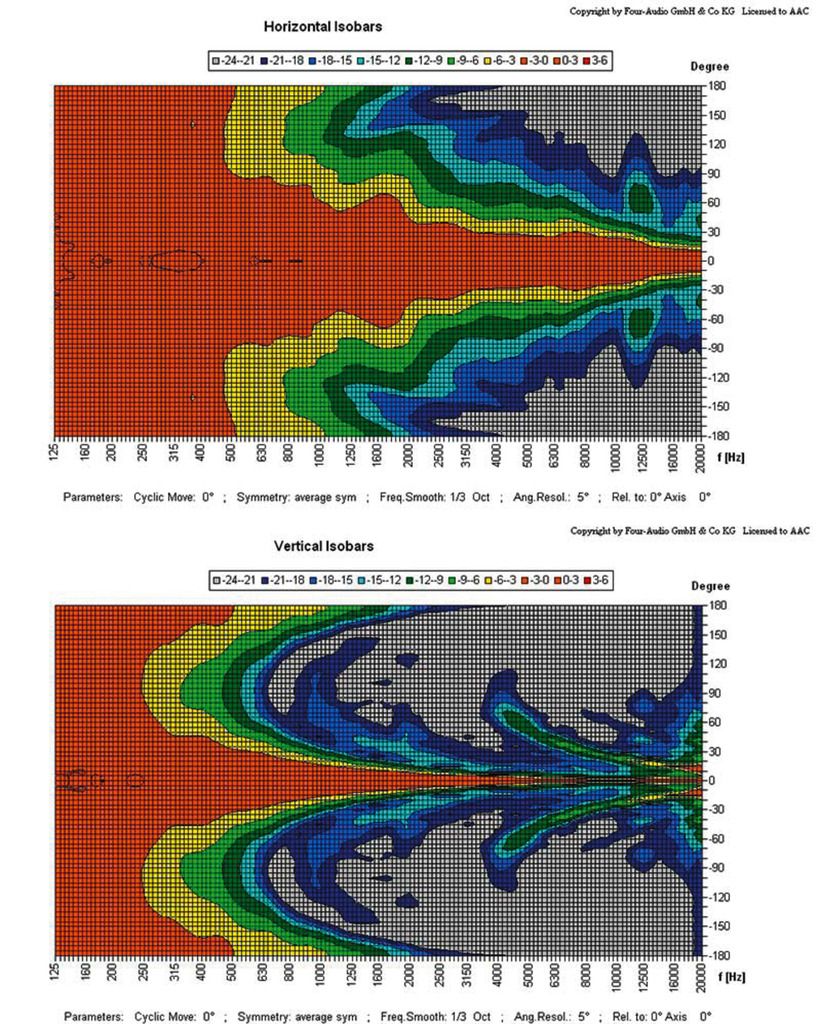

Radiation angle/beam angle H: 160°/V: 26°
Radiation angle, horizontal 160°
Radiation angle, vertical 26°
Housing material aluminium
Colour white aluminium, RAL 9006
Mounting device wall bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions 100 x 700 x 92 mm
Width 100 mm
Height 700 mm
Depth 92 mm
Weight 3.8 kg
Inputs ceramic screw terminals
Packaging dimensions (W x H x L) 0.18 x 0.19 x 0.79 m
Gross weight 4.39 kg
Net weight 3.89 kg

Fisiere de descarcat

Fisa produsului TS-C30-700/T konformitaetserklaerung-oem
