TXA-800HT
Cod EAN: 4007754199352
Hand-held microphone with integrated multifrequency transmitter, with UHF PLL technology. Matching portable amplifier systems of the TXA-1000 and TXA-800 series. Dynamic microphone cartridge, cardioid polar pattern 16 selectable UHF frequencies (86...

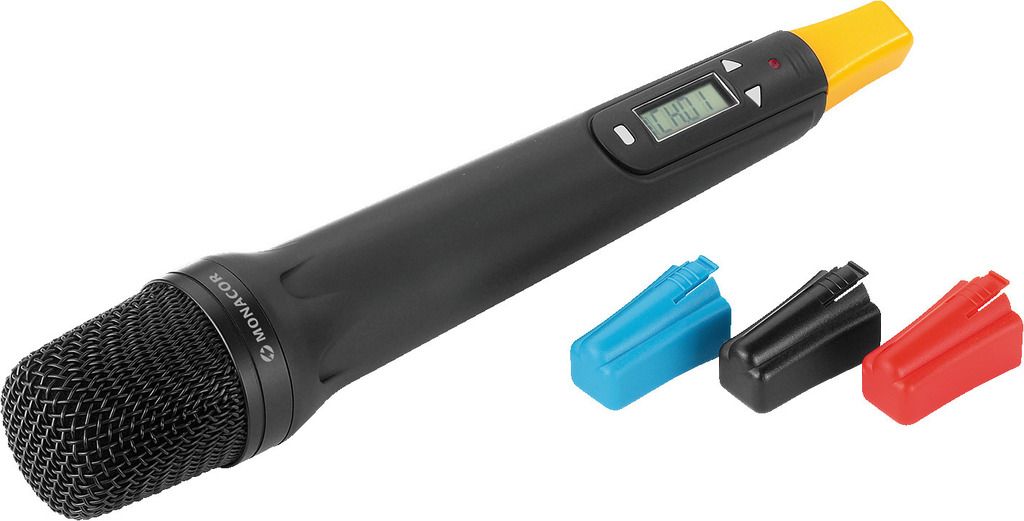

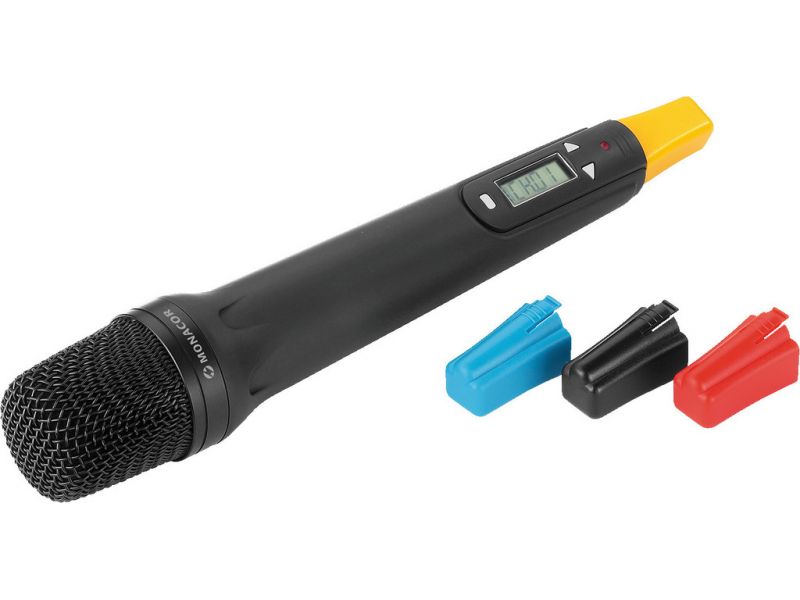

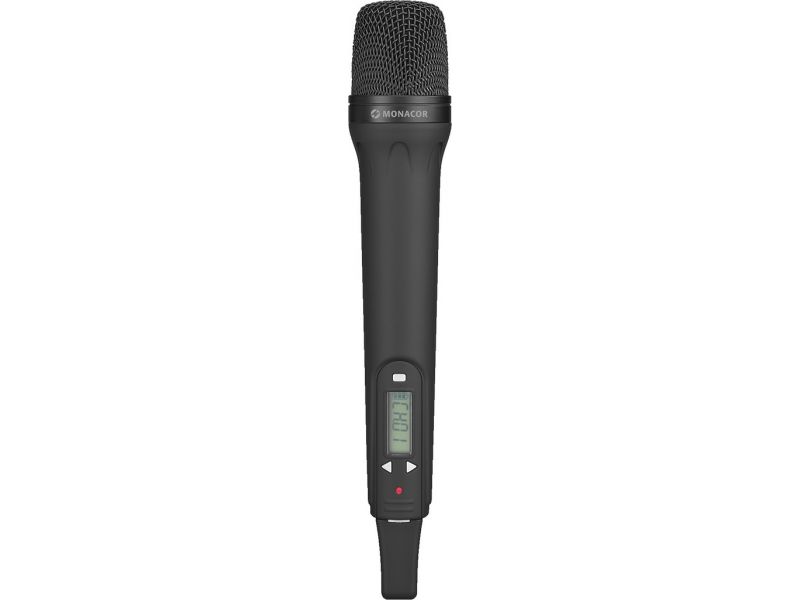

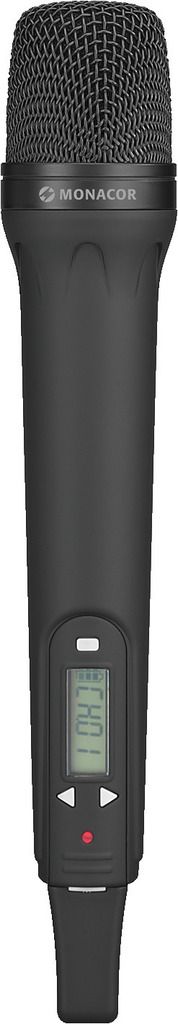

TXA-800HT
Hand-held microphone with integrated multifrequency transmitter,
with UHF PLL technology. Matching portable amplifier systems of the TXA-1000 and TXA-800 series.
- Dynamic microphone cartridge, cardioid polar pattern
- 16 selectable UHF frequencies (863.1-864.9 MHz)
- Sensitivity to be adjusted in 2 steps
- Mute function
- Backlit LCD for indicating channel/frequency and battery status
- Transmitting power: 10 mW (EIRP)
- Power supply via 2 x 1.5 V battery AA size (not supplied)
- Supplied with 4 coloured caps to be pushed on
Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | hand-held microphone transmitter |
| Transmission method | wireless |
| Polar pattern | cardioid |
| System | dynamic |
| Carrier frequency range | 863.1-864.9 MHz |
| Transmitting power | 10 mW |
| Power supply | 2 x 1.5 V batt. AA size |
| Audio frequency range | 70-16,000 Hz |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 46 mm x 265 mm |
| Weight | 250 g |
| Packaging dimensions (W x H x L) | 0.06 x 0.055 x 0.285 m |
| Gross weight | 0.315 kg |
| Net weight | 0.255 kg |
