TXA-820MT

Cod EAN: 4007754269581

Multifrequency transmitter module, with UHF PLL technology. For retrofitting amplifier systems of the TXA-820 series or for setting up wireless audio transmission paths. 16 selectable UHF frequencies (863-865 MHz) Volume control LCD for indicating...

Citeste mai mult

Intreaba despre produs
Cumpara acum

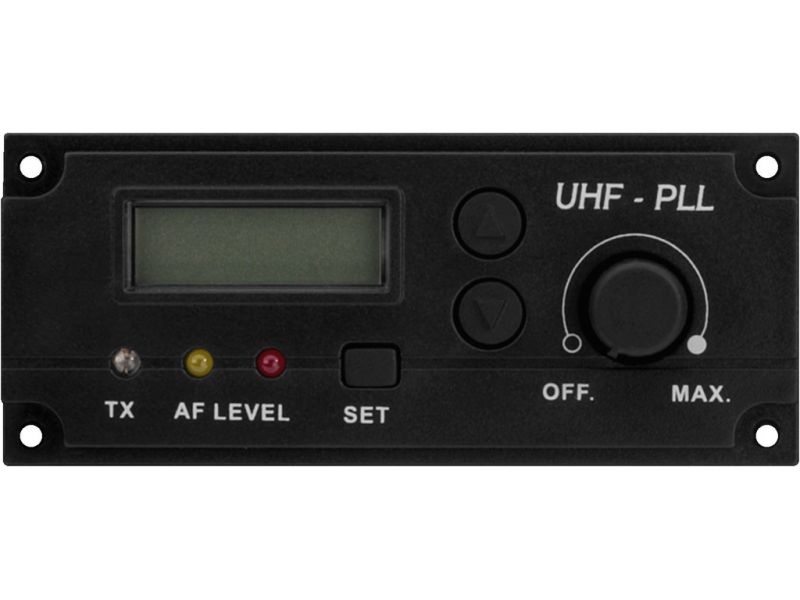

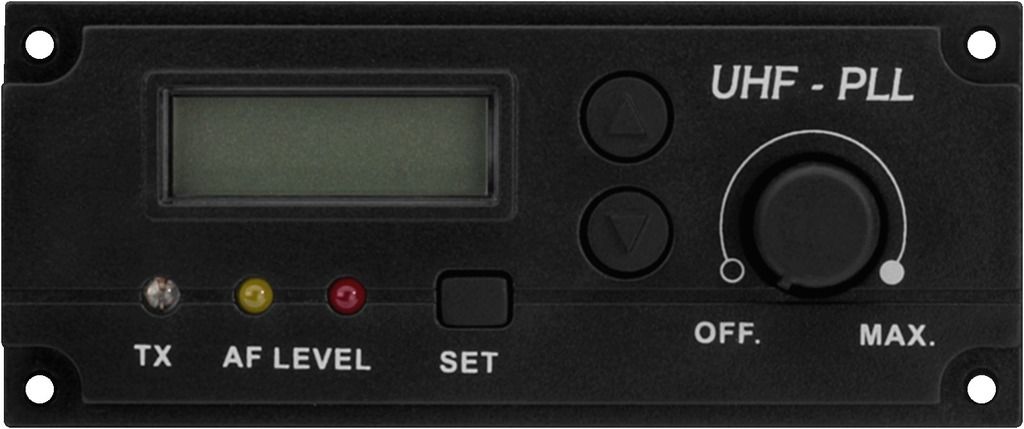

TXA-820MT

Multifrequency transmitter module,
with UHF PLL technology.
For retrofitting amplifier systems of the TXA-820 series or for setting up wireless audio transmission paths.
  • 16 selectable UHF frequencies (863-865 MHz)
  • Volume control
  • LCD for indicating selected channel/frequency
  • LEDs for indicating carrier signal and audio signal


Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description multifrequency transmitter module
Carrier frequency range 863-865 MHz
Channels 1
Admiss. ambient temp. 0-40 °C
Transmitting power ≤ 10 mW
Operating range approx. 30 m
Power supply transmitter DC 12 V/120 mA
Width transmitter 88 mm
Height transmitter 37 mm
Depth transmitter 103 mm
Weight transmitter 80 g

Fisiere de descarcat

Fisa produsului TXA-820MT konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
