LSIP-220
Cod EAN 4007754060201
Air core coil, 2.2 mH, Ø 1.2 mm

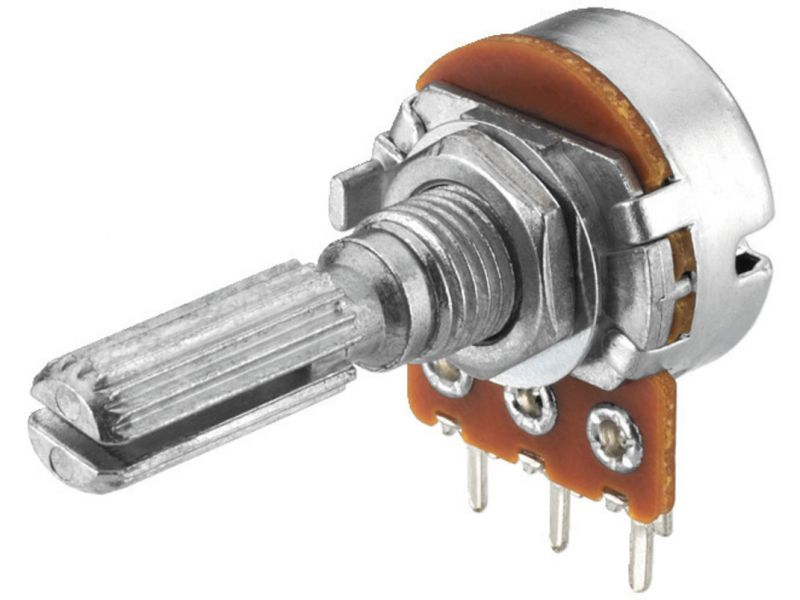

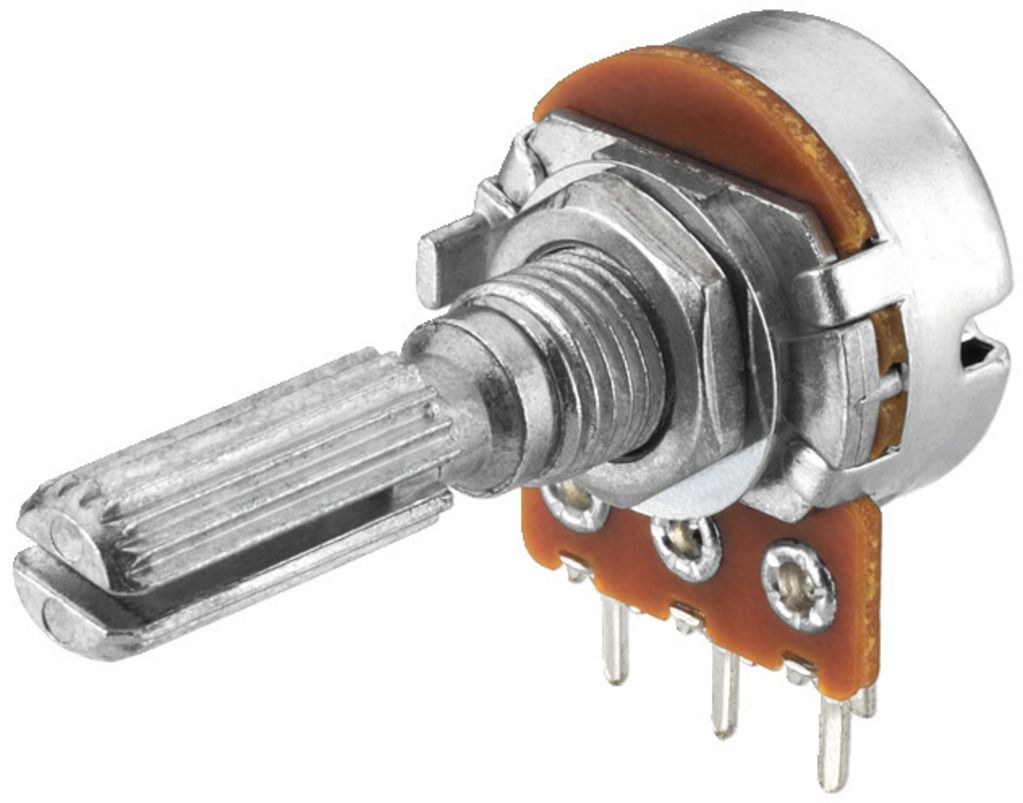

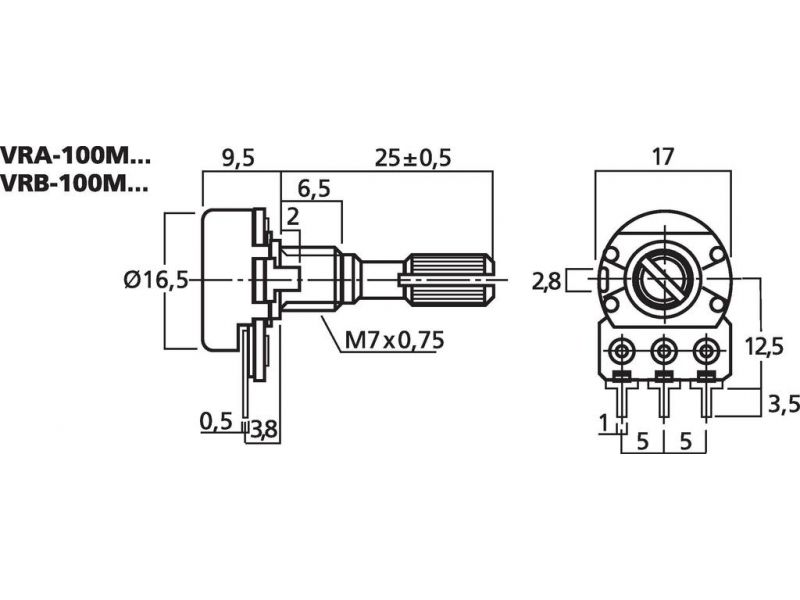

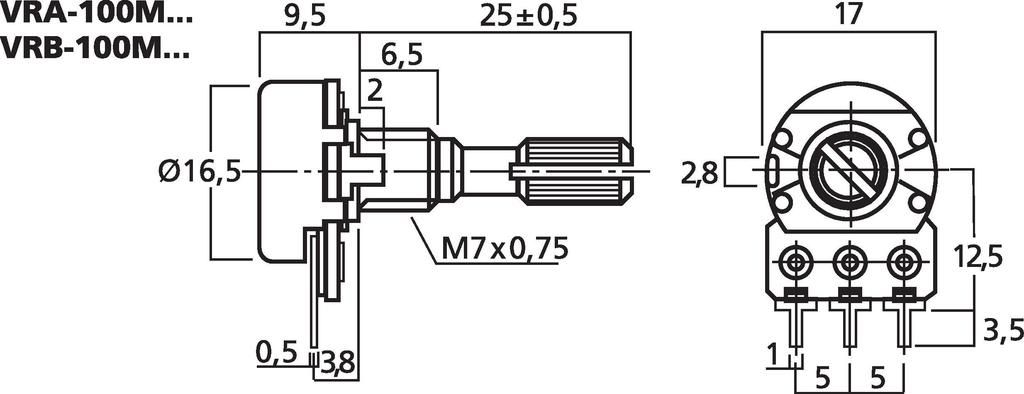

Potentiometer, mono, 100 kΩ Logarithmic Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGKonsul-Smidt-Str. 6828217 BremenGermanyinfo@monacor.com
Resistance | 100 kΩ |
Characteristic | log. |
Power rating | 0.1 W |
Test voltage | ˜ 500 V/1 min. |
Tracking error | ±3 dB, 0/-40 dB |
Rotation angle | 300° ±5° |
