VRA-100M20

Cod EAN: 4007754046199

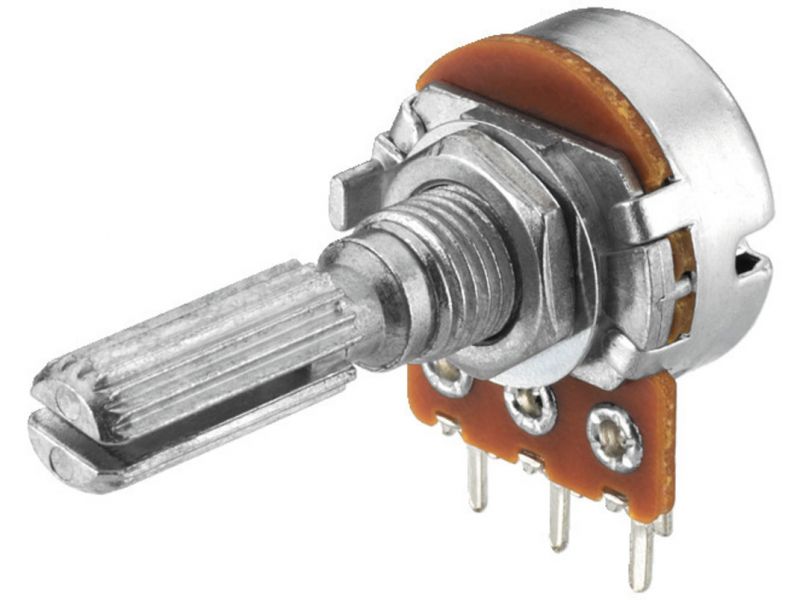

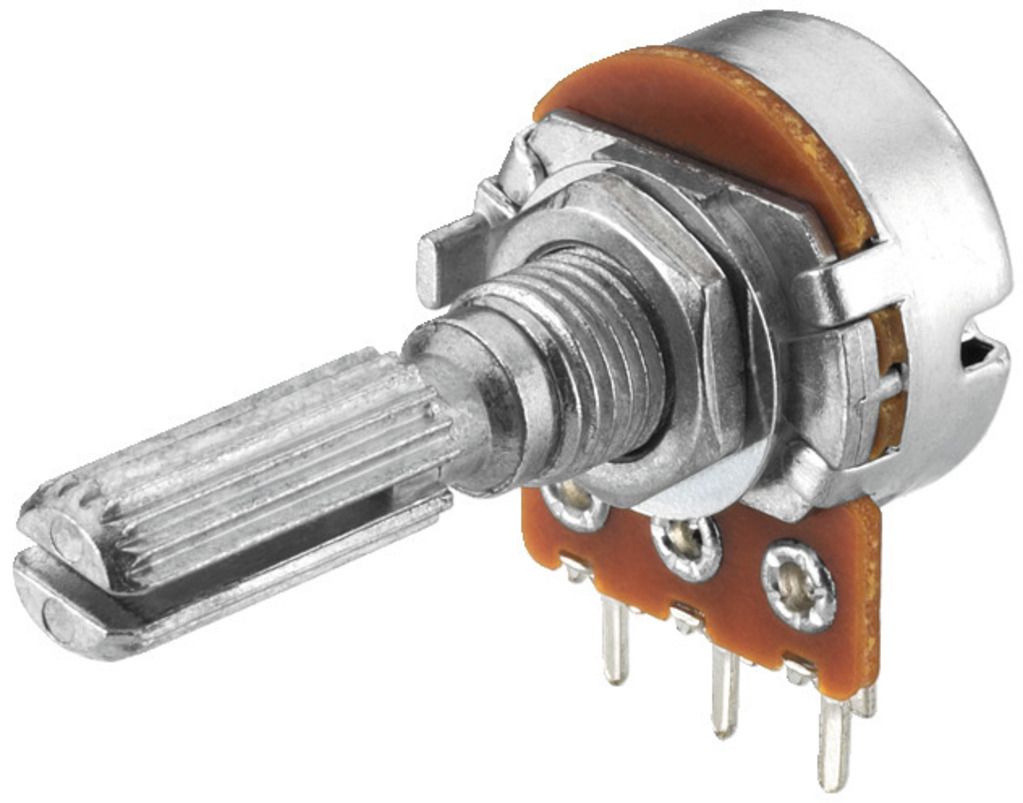

Potentiometer, mono, 20 kΩ Logarithmic Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts



VRA-100M20

Potentiometer, mono, 20 kΩ
  • Logarithmic
  • Slotted 6 mm shaft
  • For 18-tooth push-on buttons
  • Nut fixing and PCB solder contacts

Parametrii

Resistance 20 kΩ
Characteristic log.
Power rating 0.1 W
Test voltage ˜ 500 V/1 min.
Tracking error ±3 dB, 0/-40 dB
Rotation angle 300° ±5°
