WALL-04T/SW

Cod EAN: 4007754261233

Pair of 2-way PA speaker systems 100 V wall speaker with plastic cabinet in black 4 power taps as well as switchable to 8 Ω operation 10 cm (4") bass-midrange speaker and 12 mm (½") dome tweeter High sound quality and speech intelligibility Mounting...

Citeste mai mult

Intreaba despre produs
Cumpara acum

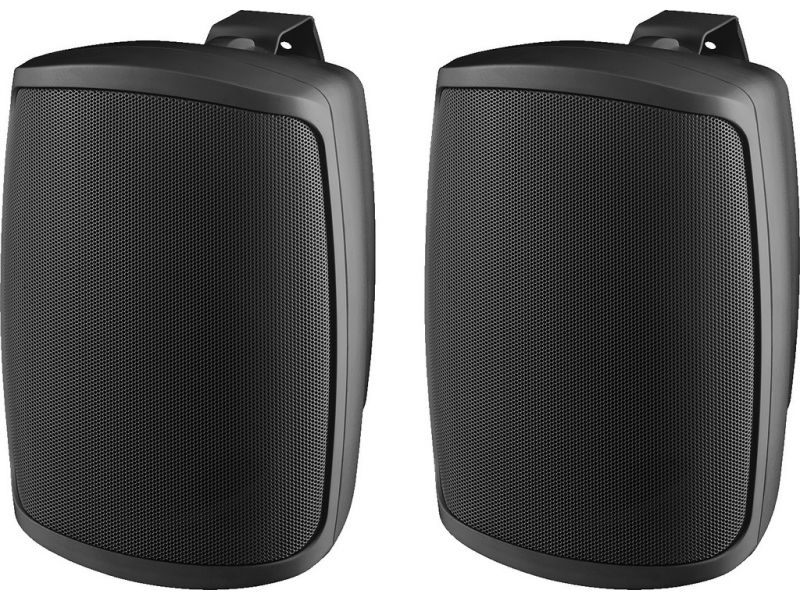

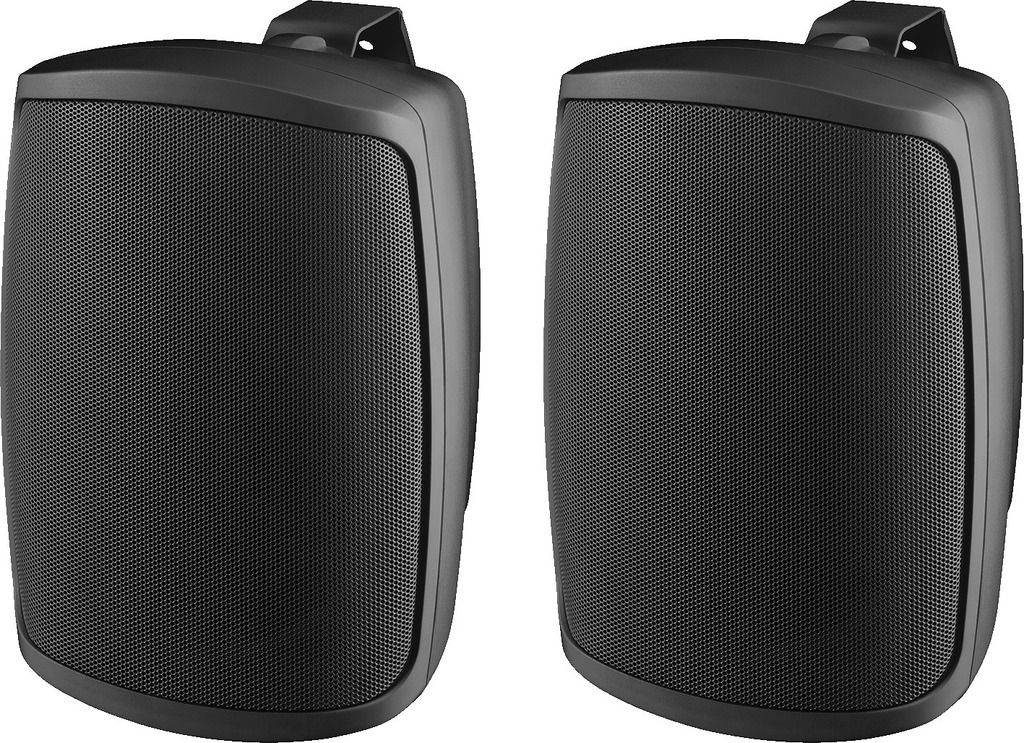

WALL-04T/SW

Pair of 2-way PA speaker systems
  • 100 V wall speaker with plastic cabinet in black
  • 4 power taps as well as switchable to 8 Ω operation
  • 10 cm (4") bass-midrange speaker and 12 mm (½") dome tweeter
  • High sound quality and speech intelligibility
  • Mounting bracket for pivoting and tilting
  • Connecting terminal with cover

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 60 W
Power rating (RMS) 16/8/4/2 W (100 V)30 W (8 Ω)
Impedance 8 Ω
Frequency range 90-20,000 Hz
System 2-way
Bass speaker 10 cm (4") bass-midrange speaker
Tweeter 12 mm (½") dome tweeter
Number of speakers 2
Speaker size 10 cm (4")
SPL 87 dB/W/m
Max. rated SPL 100 dB
Radiation angle/beam angle H: 120°/V: 100°
Radiation angle, horizontal 120°
Radiation angle, vertical 100°
Housing material plastic
Colour black
Mounting device mounting bracket
Protection class IP65
Admiss. ambient temp. 0-40 °C

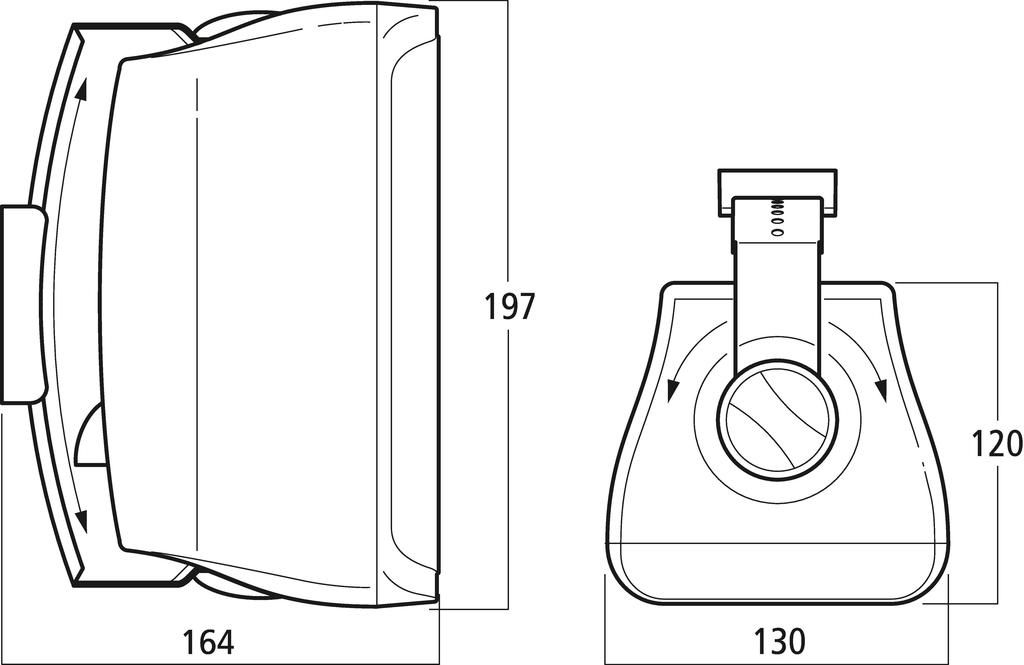

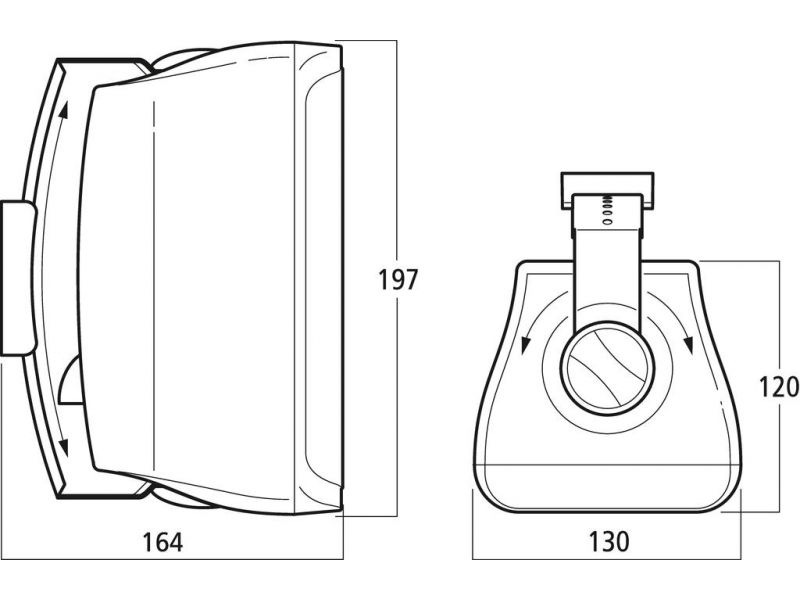

Dimensions 130 x 197 x 164 mm (with bracket)
Width 130 mm
Height 197 mm
Depth 164 mm
Weight 1.8 kg
Inputs spring-load. speaker term.
Other features for pivoting and tilting
Packaging dimensions (W x H x L) 0.155 x 0.22 x 0.335 m
Gross weight 3.82 kg
Net weight 3.51 kg

Fisiere de descarcat

Fisa produsului WALL-04T/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
